Colour shown for illustration; the actual product may differ
Collimated lights
100 mm dia. Collimated Spot Light (LS-TP-100)
Model LS-TP-100
- ColourRed, Green, Blue, White
- Emitting areaø100
- Size122X310
- Voltage5 V
- Power8 W
$759.00
In stock - ships the same business day (3 available, order by 2 PM ET)
2.0 kg shipping weight
Volume pricing, Net 30 or a formal quote?
100 mm dia. Collimated Spot Light. Collimated light in which high-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination. Used for high-precision dimension inspection, deep-hole measurement and surface defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TP-100 |
|---|
Light
| Emitting area (mm) | ø100 |
|---|---|
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 5 |
|---|---|
| Power R (W) | 5 |
| Power W/B/G (W) | 8 |
Mechanical
| Outer size ODxH (mm) | 122X310 |
|---|---|
| Shipping weight (estimated) | 2.00 kg |

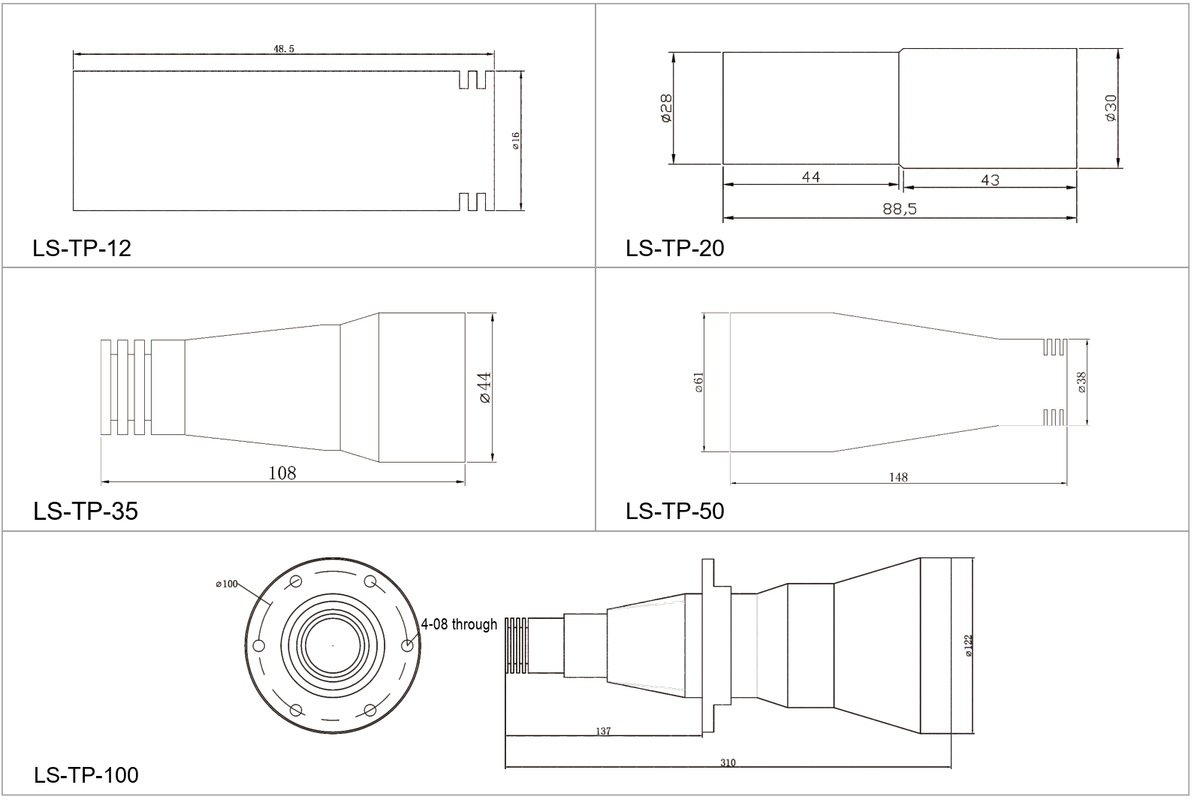

Mounting and drawing data
drawing: front dia 122, flange dia 100 with 4 x dia 8 through holes, flange at 137 from rear, overall 310
