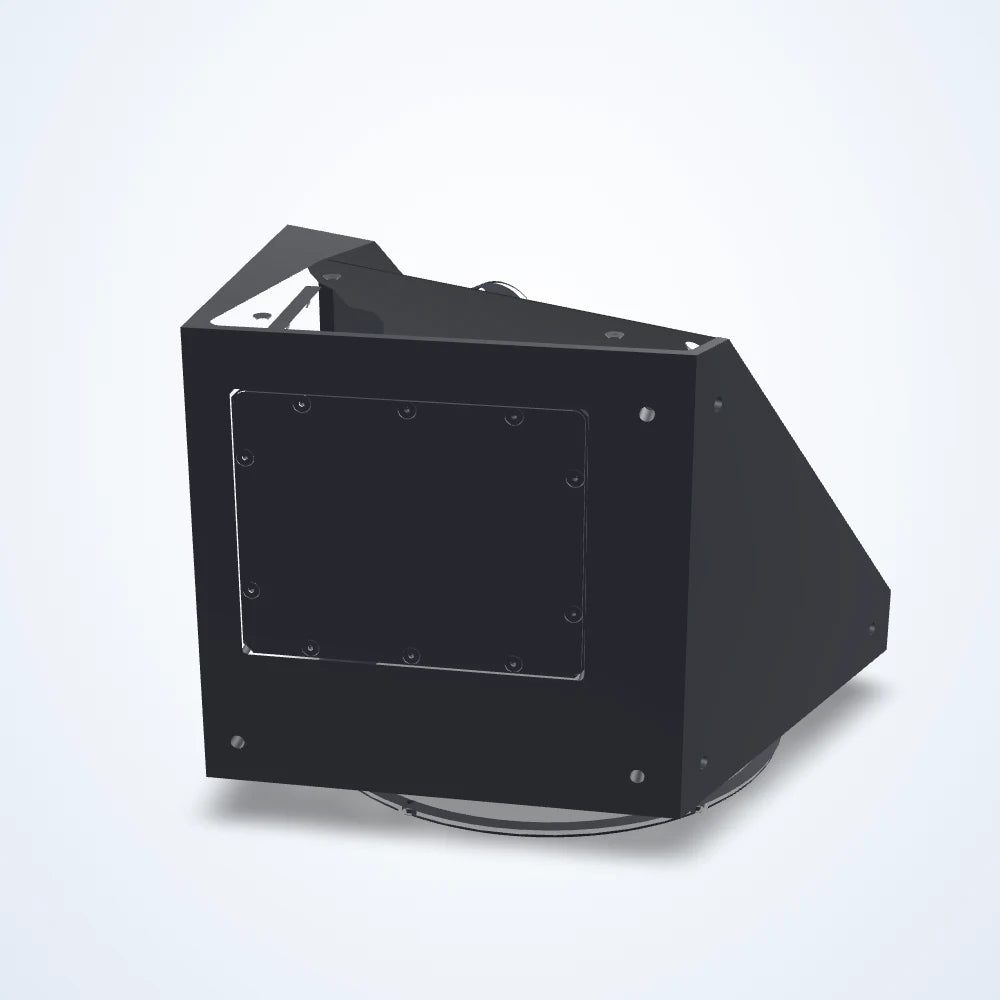

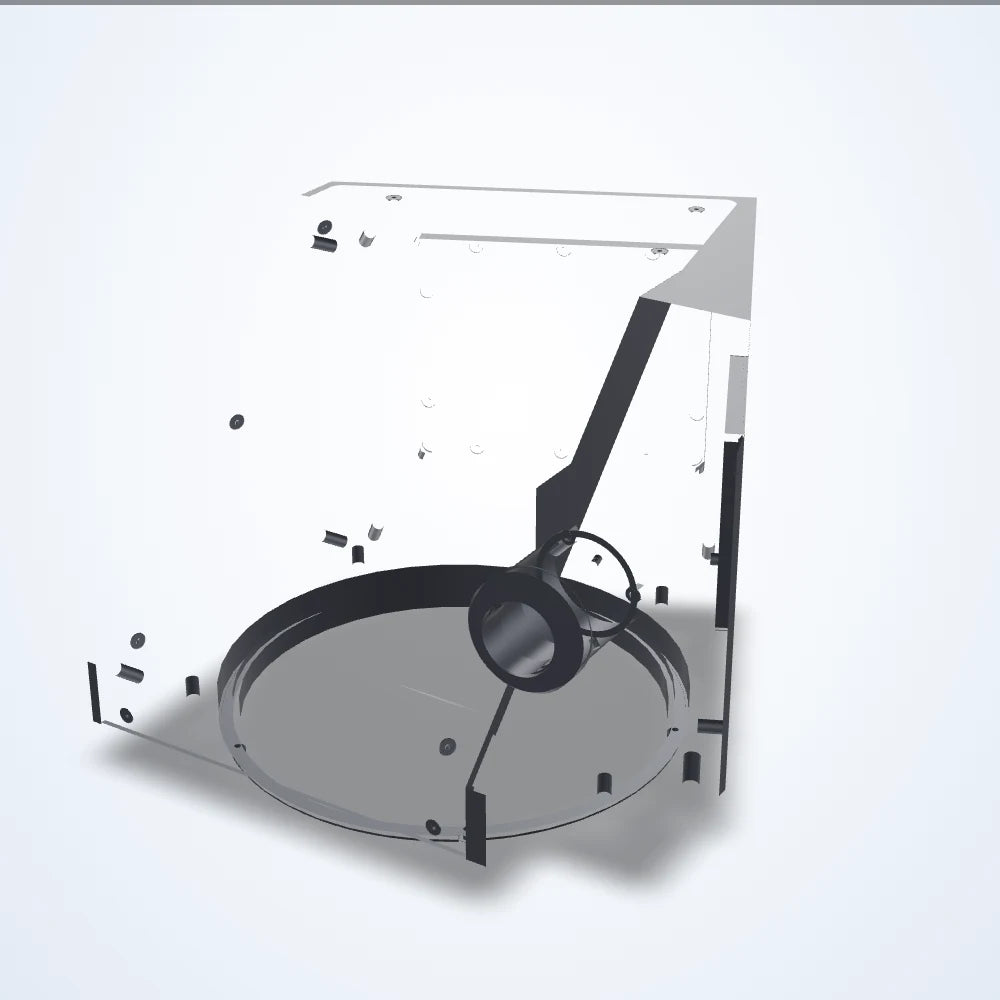

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.118× telecentric lens, 1.1", C-mount (LS-TCL-0385)
Model LS-TCL-0385
- Magnification0.118×
- MountC-mount
- Sensor1.1"
- Working distance334.6 mm
- Resolution43 μm
$8,159.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.6 mm; depth of field 29.7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0385 |
|---|---|
| FOV @ 1.1″ | 120 x 87.88 mm |
| Fov @ 1/2.0″ | 96.19 x 60.42 mm |
| FOV @ 1/2″ | 96.19 x 60.42 mm |
| FOV @ 1″ | 96.19 x 60.42 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.118× |
|---|---|
| Working distance | 334.6 mm |
| Depth of field | 29.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 17.8 mm |
| Image size dimensions | 14.69 x 14.89 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (pixel size) | 43 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

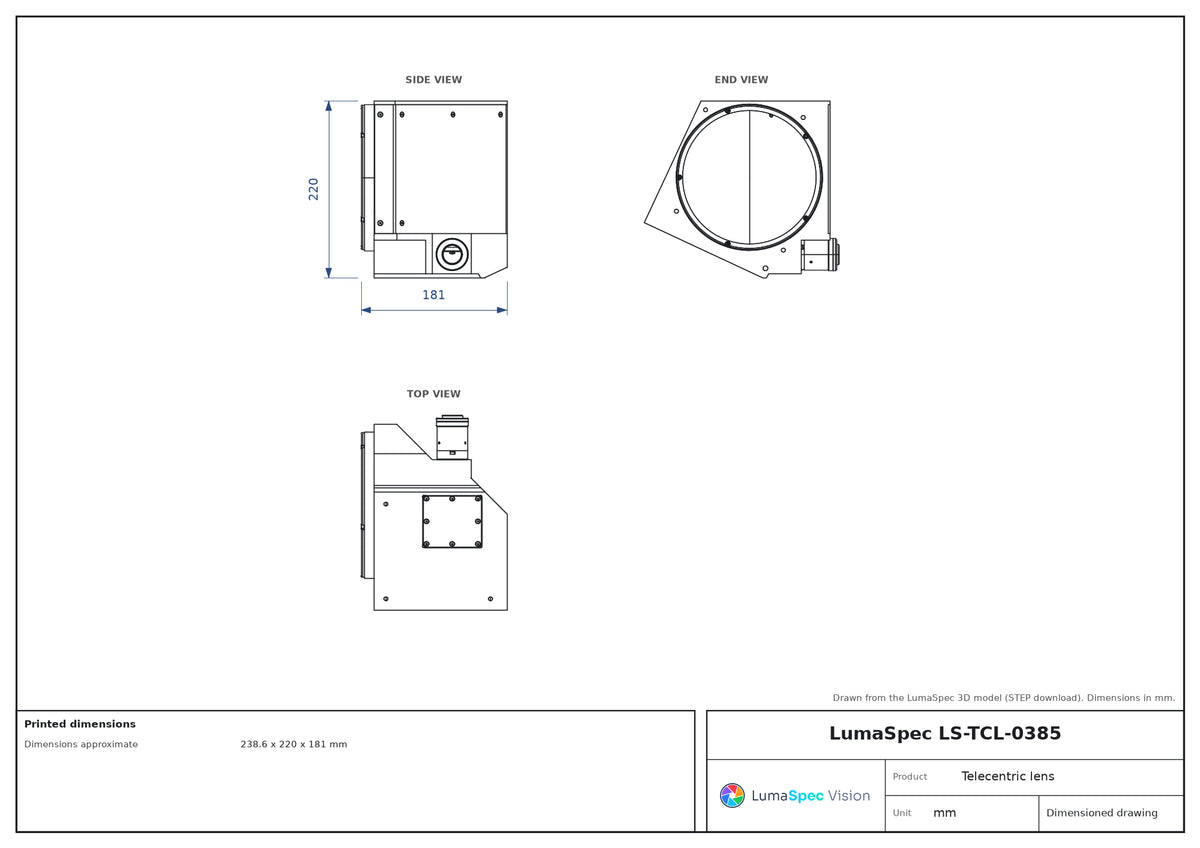

| Dimensions approximate | 238.6 x 220 x 181 mm |
| Weight | 9143 Grams |
Other models in the Telecentric lens series, 1.1", C-mount (S24) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0380 | 0.303× | $4,029.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0381 | 0.259× | $4,269.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0382 | 0.227× | $4,649.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0383 | 0.182× | $5,399.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0384 | 0.153× | $6,269.00 Quote | Lead time confirmed with your quote | View |
