Telecentric lenses

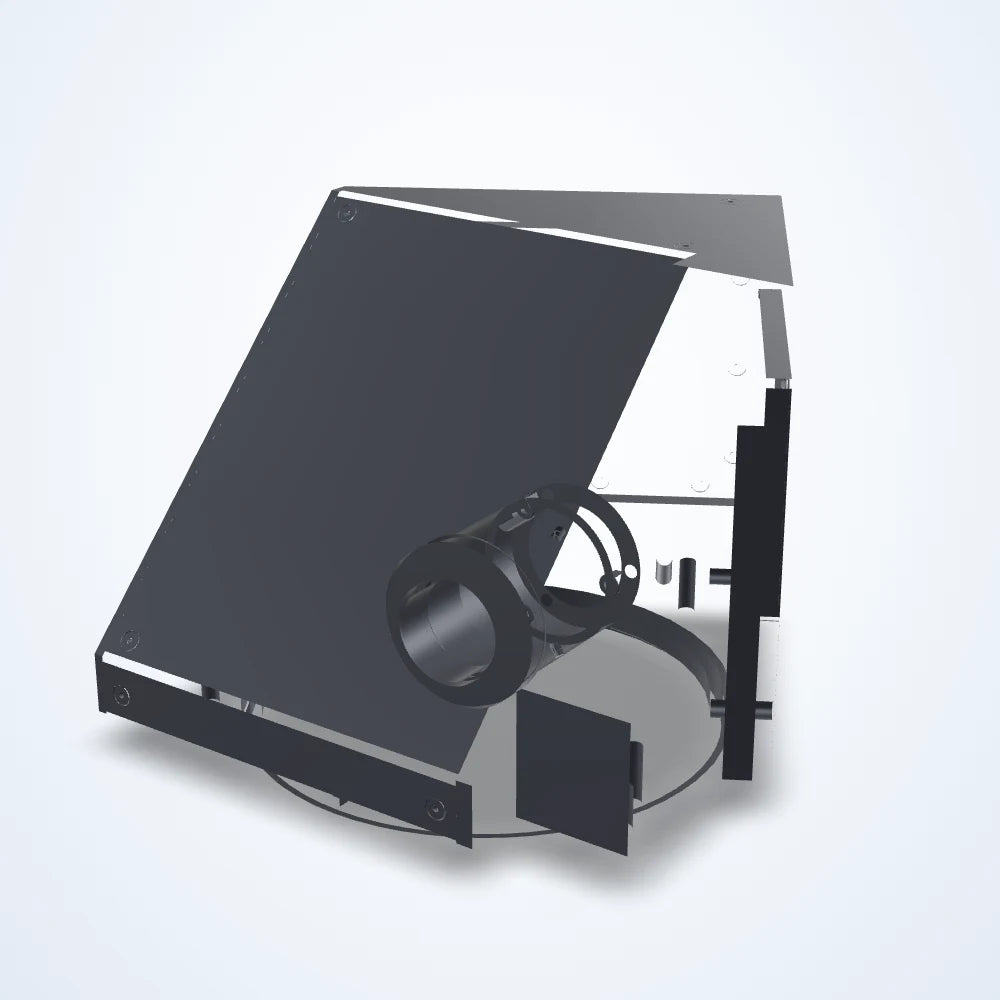

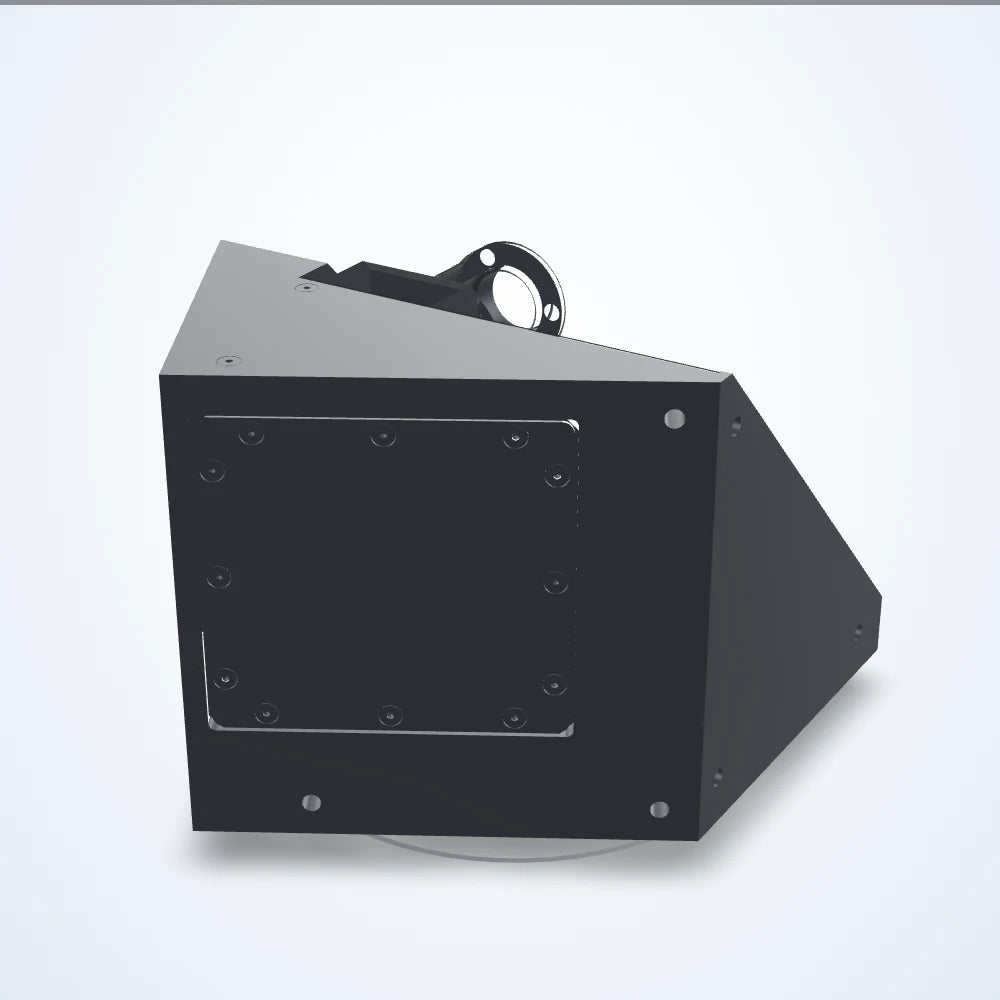

0.153× telecentric lens, 1.1", C-mount (LS-TCL-0384)
Model LS-TCL-0384
- Magnification0.153×
- MountC-mount
- Sensor1.1"
- Working distance278.6 mm
- Resolution33 μm
$6,269.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 17.7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0384 |
|---|---|
| FOV @ 1.1″ | 92.55 x 67.78 mm |
| Fov @ 1/2.0″ | 74.18 x 46.60 mm |
| FOV @ 1/2″ | 74.18 x 46.60 mm |
| FOV @ 1″ | 92.75 x 49.08 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.153× |
|---|---|
| Working distance | 278.6 mm |
| Depth of field | 17.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 17.9 mm |
| Image size dimensions | 14.89 x 14.89 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (pixel size) | 33 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

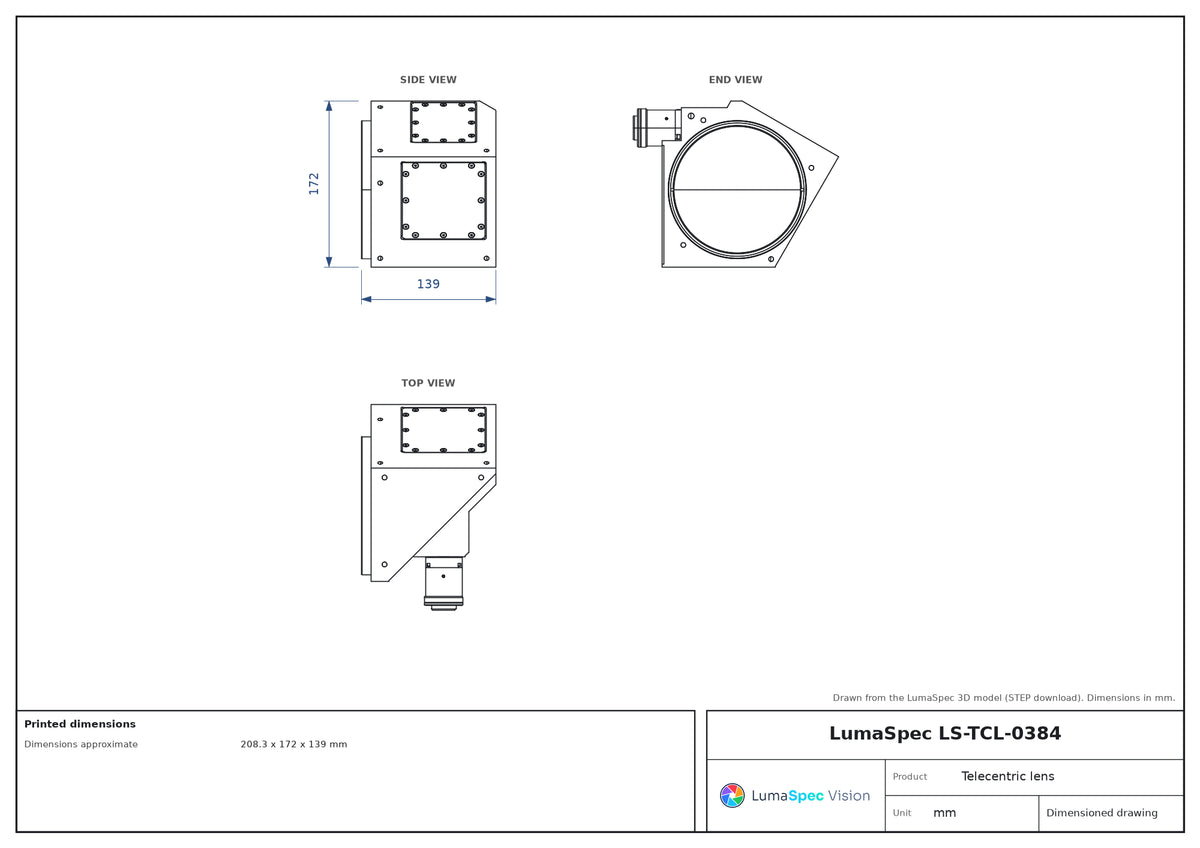

| Dimensions approximate | 208.3 x 172 x 139 mm |
| Weight | 4260 Grams |
Other models in the Telecentric lens series, 1.1", C-mount (S24) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0380 | 0.303× | $4,029.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0381 | 0.259× | $4,269.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0382 | 0.227× | $4,649.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0383 | 0.182× | $5,399.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0385 | 0.118× | $8,159.00 Quote | Lead time confirmed with your quote | View |
