Telecentric lenses

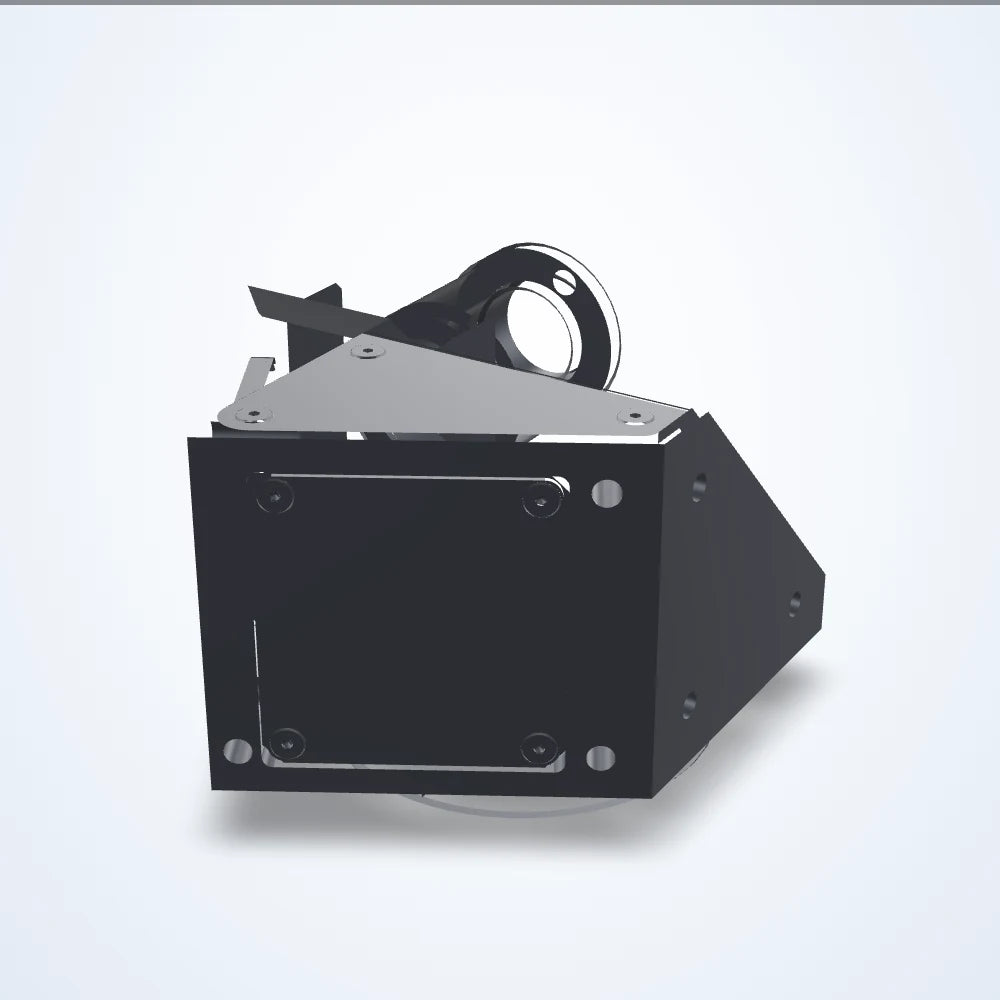

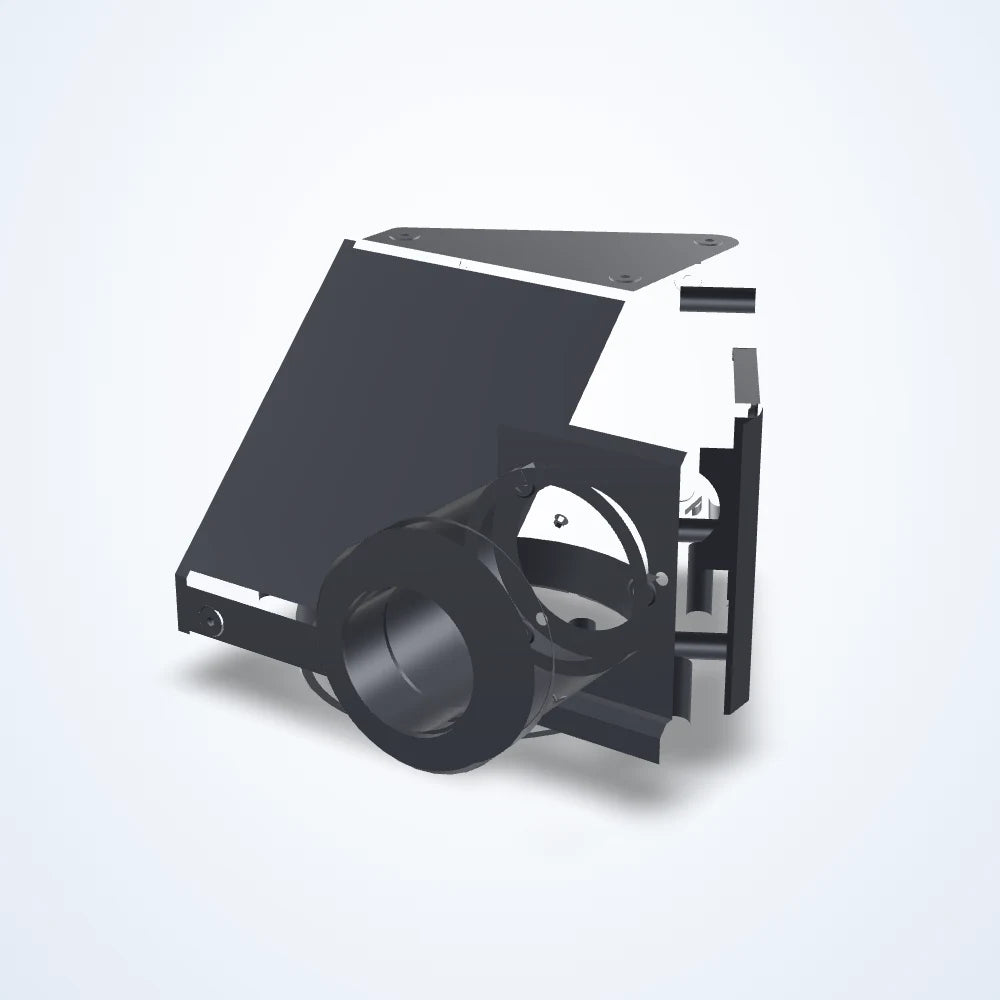

0.222× telecentric lens, 1/1.2", C-mount (LS-TCL-0365)
Model LS-TCL-0365
- Magnification0.222×
- MountC-mount
- Sensor1/1.2"
- Working distance132.4 mm
- Resolution23 μm
$3,989.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.4 mm; depth of field 8.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0365 |
|---|---|
| Fov @ 1.2″ | 51.13 x 32.12 mm |
| FOV @ 1/1.8″ | 32.12 x 24.01 mm |
| FOV @ 2/3″ | 38.29 x 31.94 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.222× |
|---|---|
| Working distance | 132.4 mm |
| Depth of field | 8.4 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 13.3 mm |
| Image size dimensions | 11.6 x 11.6 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1/1.2" |
|---|---|
| Resolution (pixel size) | 23 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

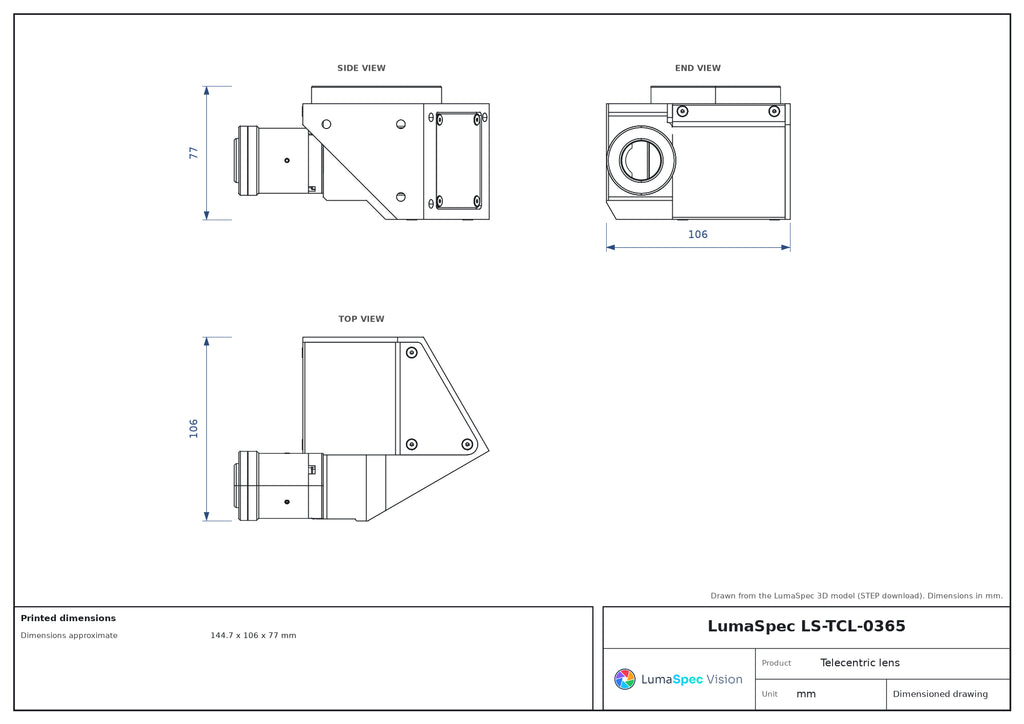

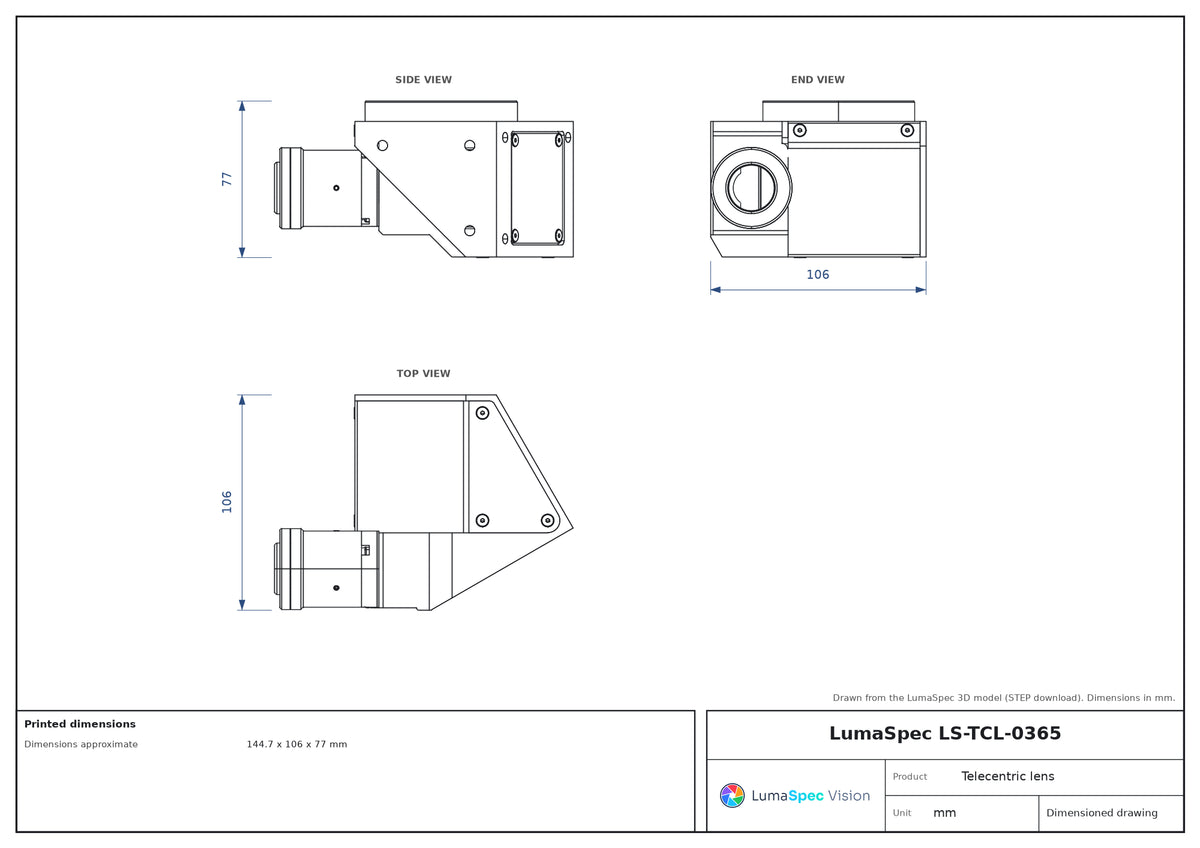

| Dimensions approximate | 144.7 x 106 x 77 mm |
| Weight | 144.7 Grams |
Other models in the Telecentric lens series, 1/1.2", C-mount (S23) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0366 | 0.19× | $4,239.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0367 | 0.166× | $4,609.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0368 | 0.134× | $5,349.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0369 | 0.114× | $6,219.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0370 | 0.087× | $8,089.00 Quote | Lead time confirmed with your quote | View |
