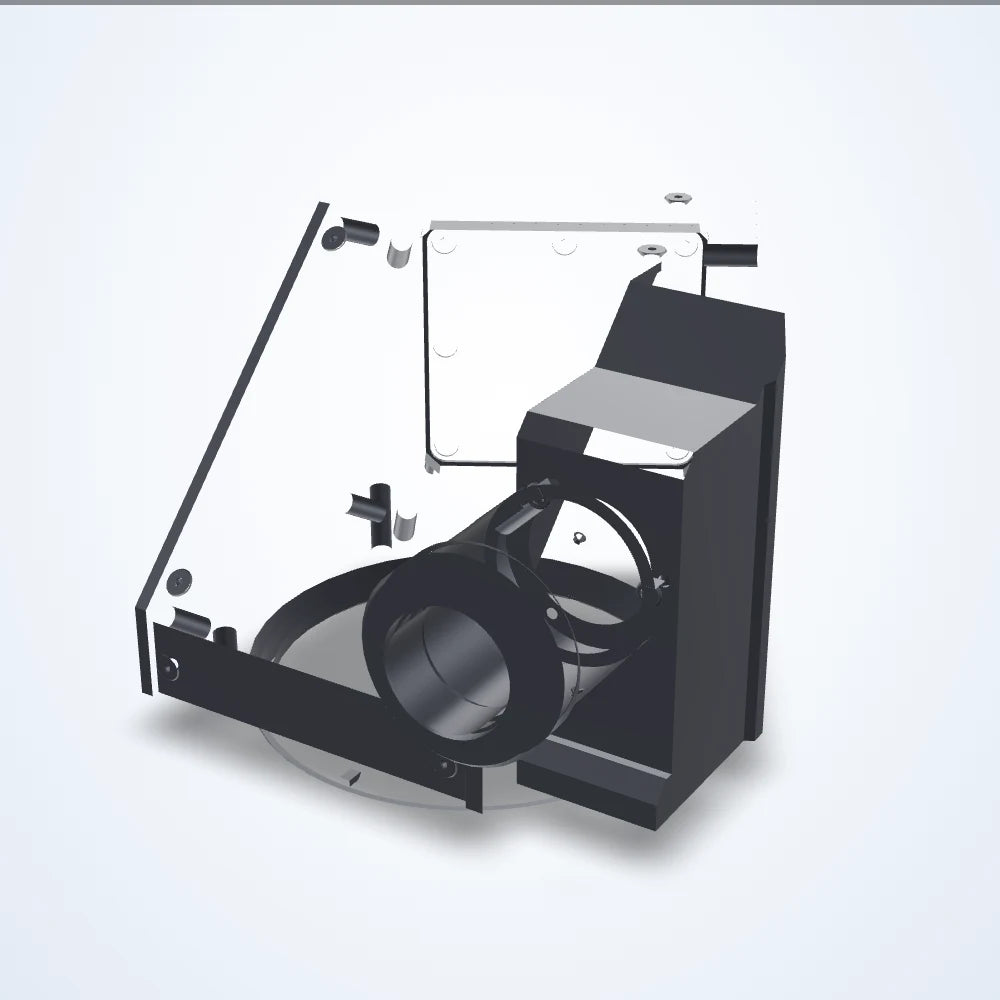

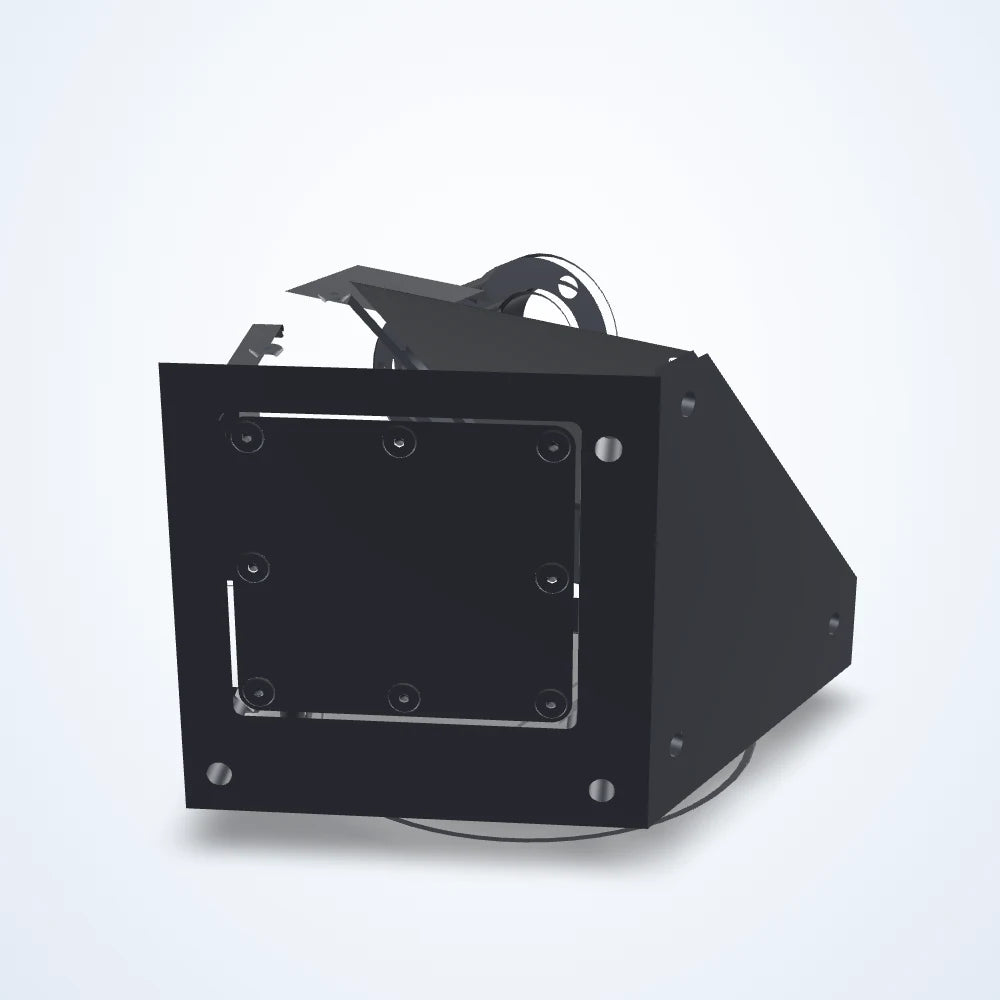

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.166× telecentric lens, 1/1.2", C-mount (LS-TCL-0367)
Model LS-TCL-0367
- Magnification0.166×
- MountC-mount
- Sensor1/1.2"
- Working distance181.9 mm
- Resolution31 μm
$4,609.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 15 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0367 |
|---|---|
| Fov @ 1.2″ | 68.37 x 42.95 mm |
| FOV @ 1/1.8″ | 42.95 x 32.11 mm |
| FOV @ 2/3″ | 51.20 x 42.71 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.166× |
|---|---|
| Working distance | 181.9 mm |
| Depth of field | 15 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 13.7 mm |
| Image size dimensions | 11.5 x 11.5 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1/1.2" |
|---|---|
| Resolution (pixel size) | 31 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

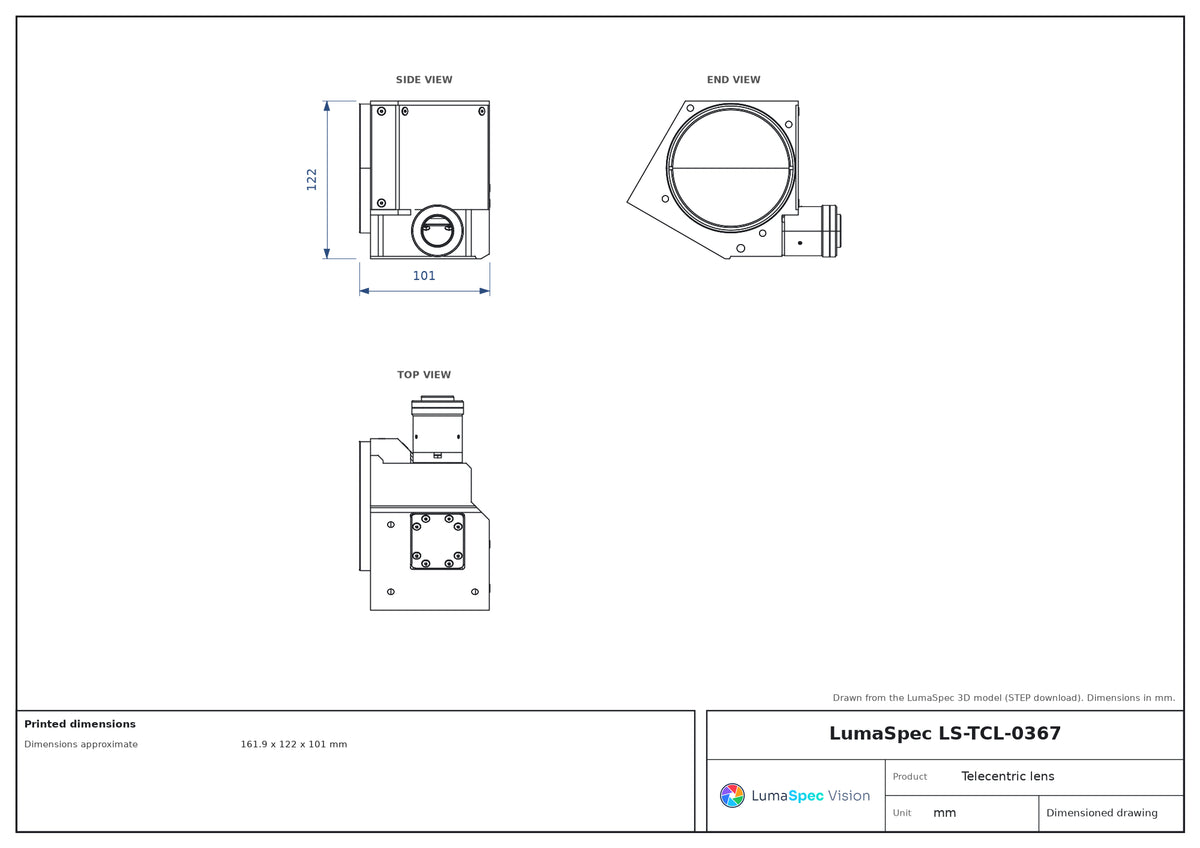

| Dimensions approximate | 161.9 x 122 x 101 mm |
| Weight | 1986 Grams |
