Rendered illustration: the actual product may differ in appearance.
360° inspection lenses

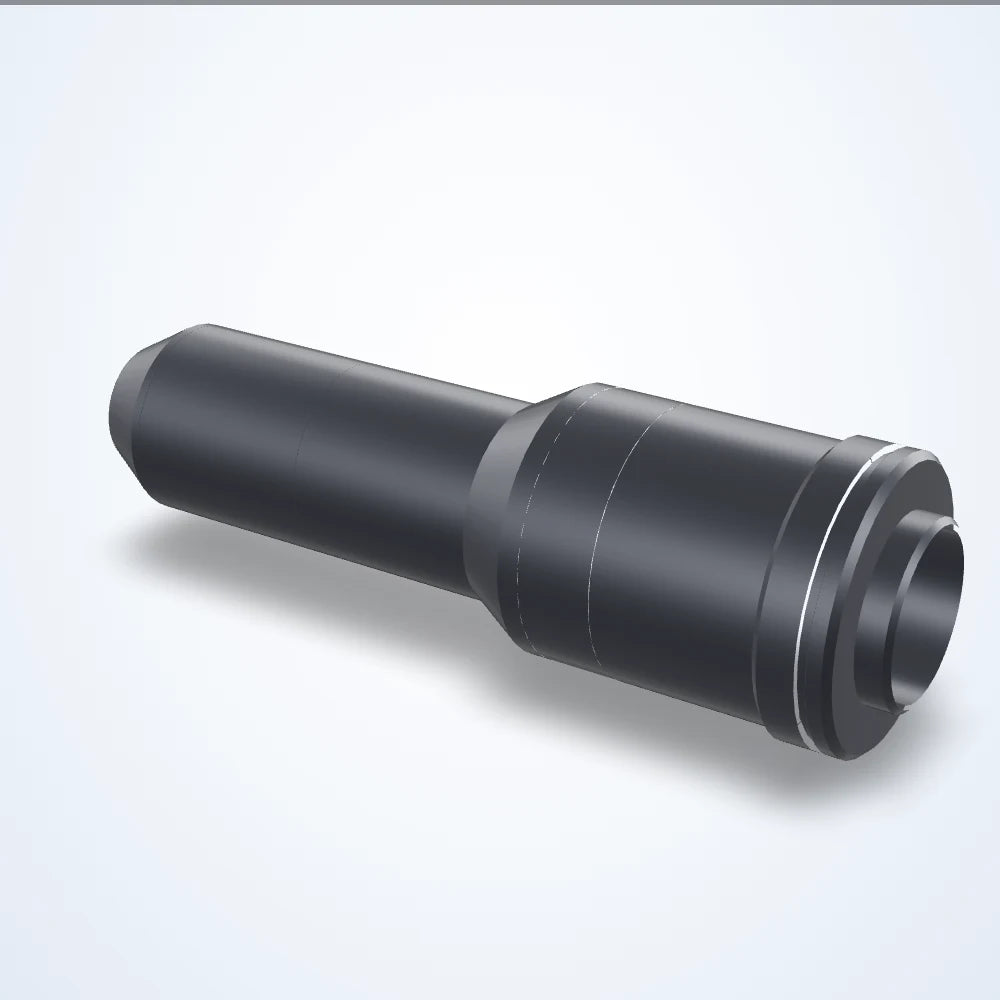

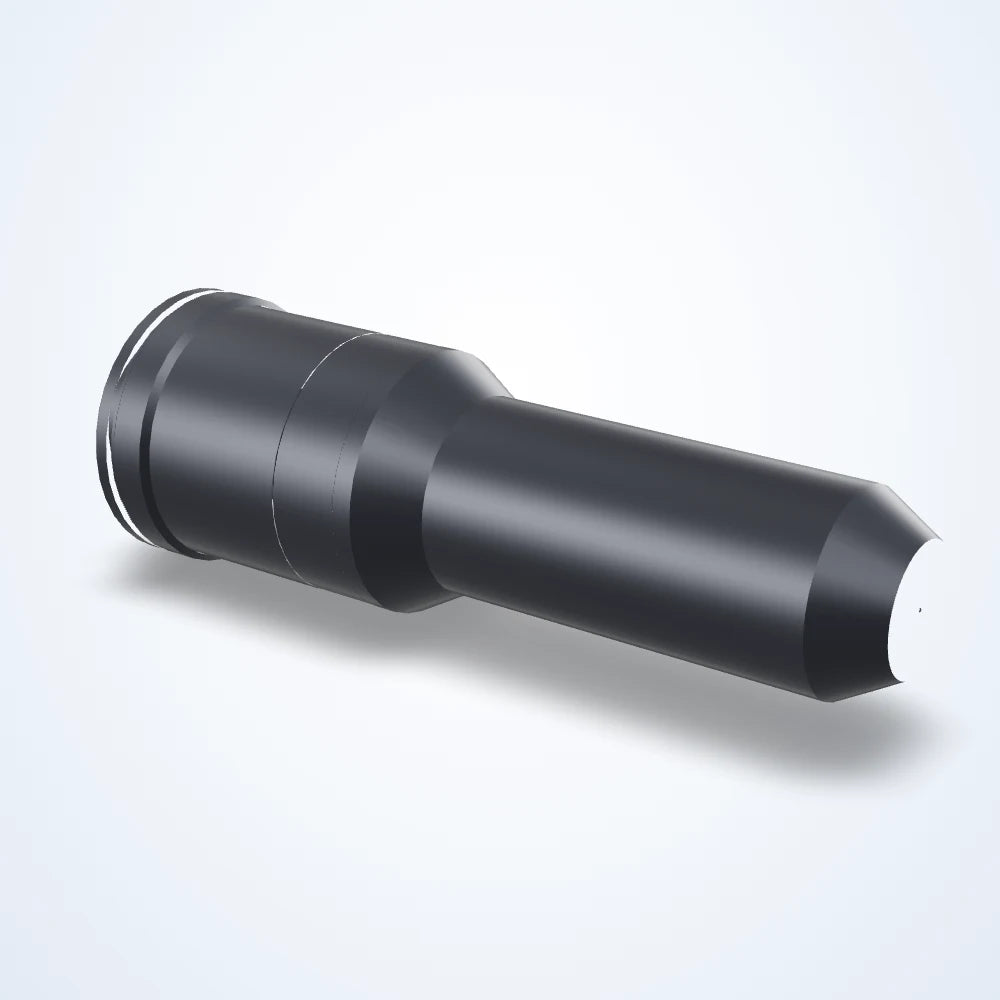

360° inspection lens, 1.1", C-mount (LS-TCL-0060)
Model LS-TCL-0060
- MountC-mount
- Sensor1.1"
- Working distance69 mm
- Sensor format1.1"
$2,379.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Special inspection optics that image the sides or inner walls of a part in one shot.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0060 |
|---|---|
| Aov | 82 ° |
| Fov maximum | 120 |
| Fov minimum | 10 |
| Lens type | Hole Inspection |
| Working ƒ/n | f/13 |
Optics
| Filter thread | No Filter Threads |
|---|---|
| Focus control | Manual with Lockring |
| Image circle | 10 mm |
| Working distance @ fov maximum | 69 mm |
| Working distance @ fov minimum | 12 mm |
Sensor and imaging
| Sensor format | 1.1" |
|---|
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

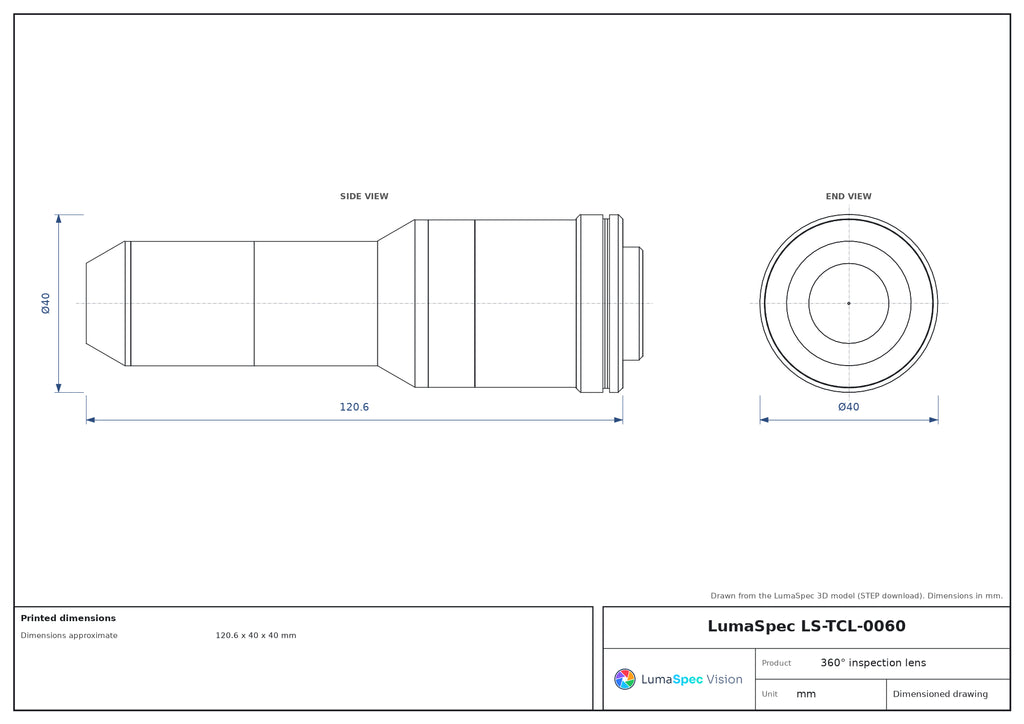

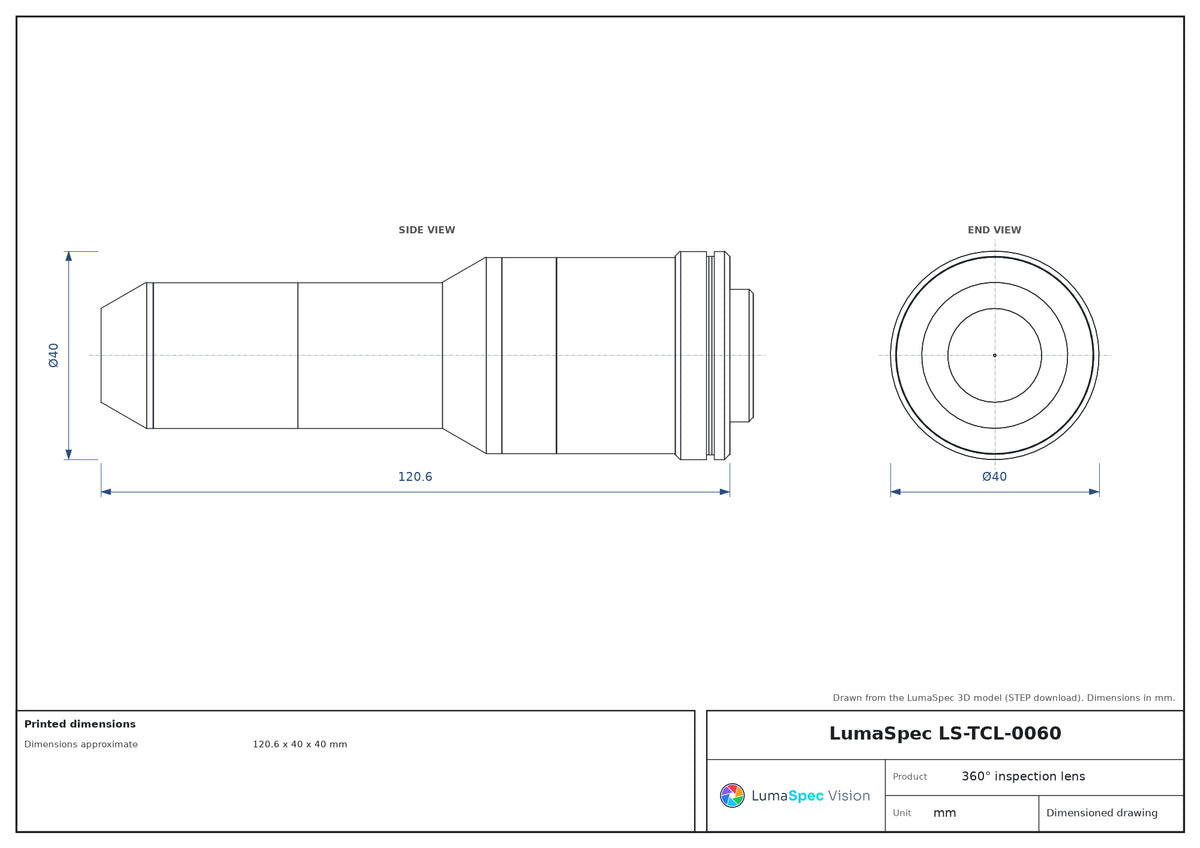

| Dimensions approximate | 120.6 x 40 x 40 mm |
| Installation location | Indoor Use Only |
| Weight | 269 Grams |
Other models in the 360° inspection lens series, C-mount (S05) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0057 | C-mount · 1/2" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0058 | C-mount · 1/3" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0059 | C-mount · 2/3" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0052 | C-mount · 1/2" | $3,039.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0054 | C-mount · 2/3" | $3,639.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0056 | C-mount · 1.1" | $3,639.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0053 | C-mount · 2/3" | $4,029.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0051 | C-mount · 1/3.6" | $4,039.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0055 | C-mount · 1/1.56" | $4,819.00 Quote | Lead time confirmed with your quote | View |
