360° inspection lens, 1.1", C-mount (LS-TCL-0056)

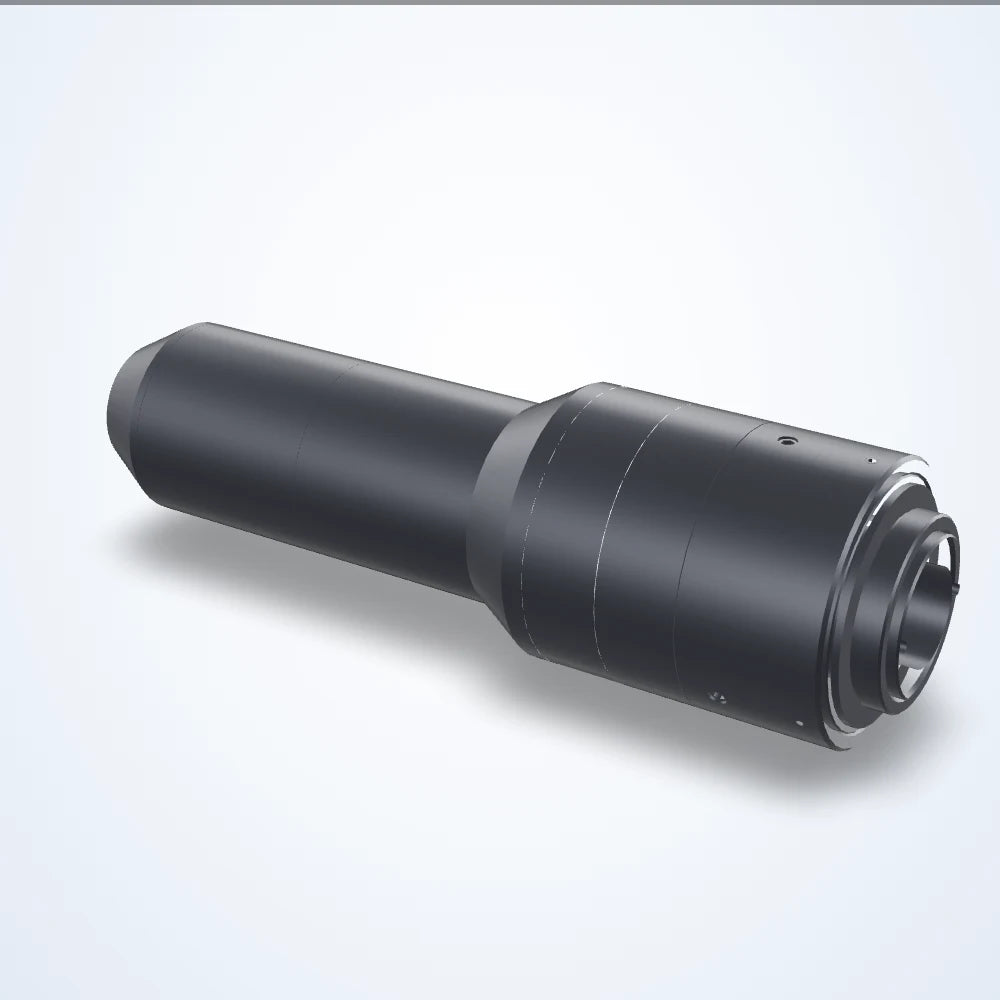

  • 360° inspection lens, 1.1", C-mount (LS-TCL-0056)

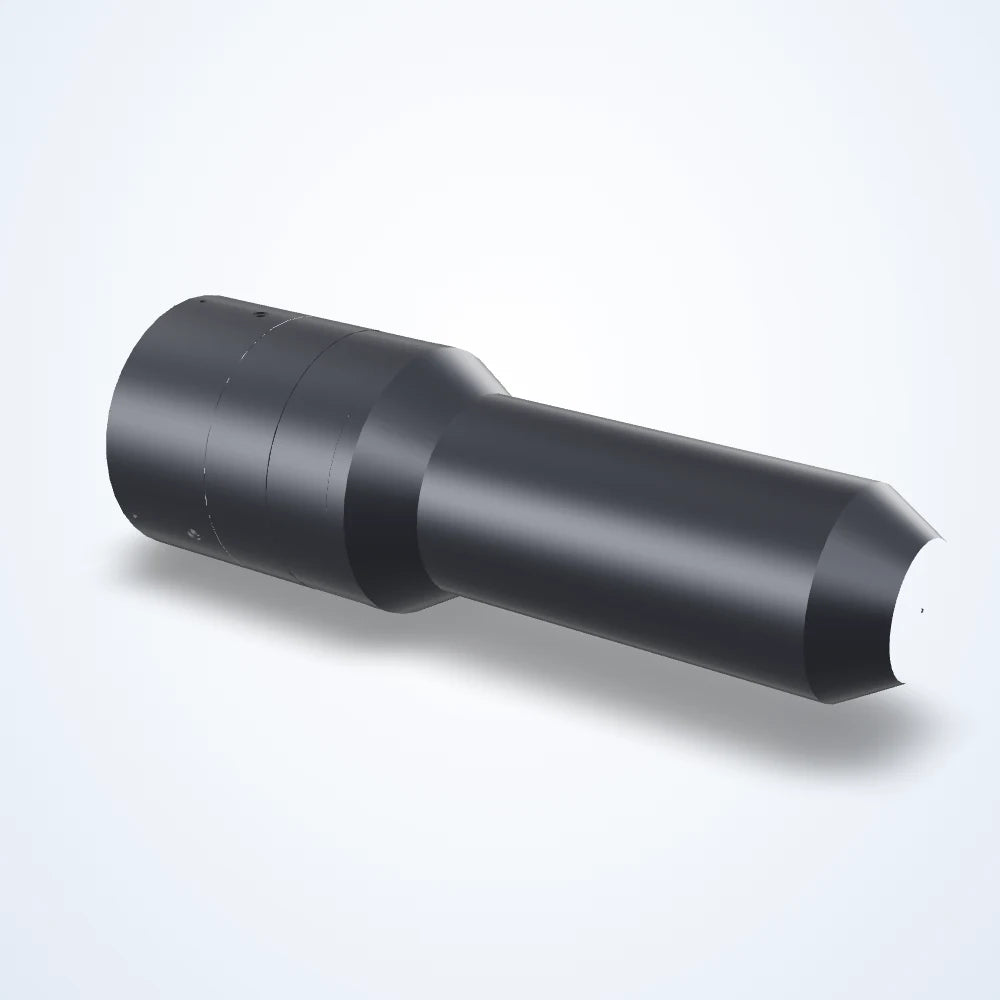

  • 360° inspection lens, 1.1", C-mount (LS-TCL-0056) - view 2

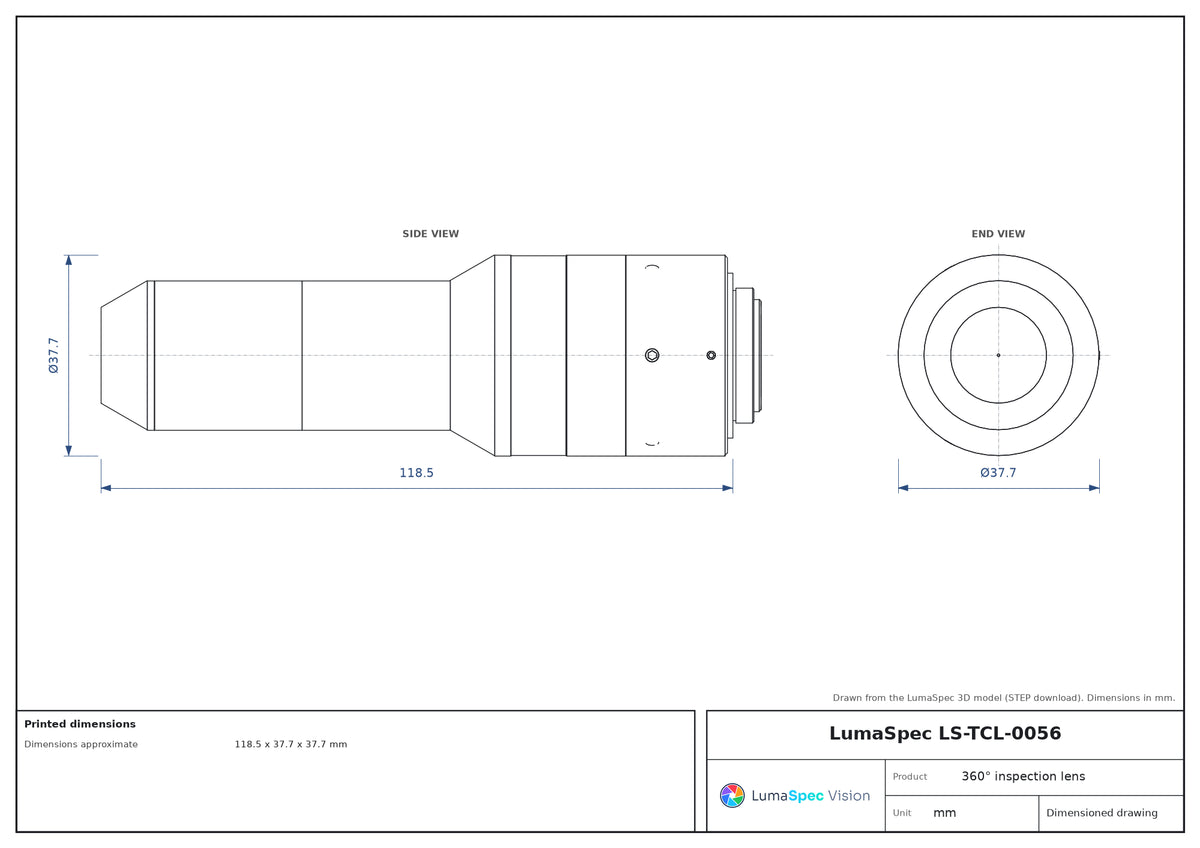

  • LS-TCL-0056 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1.1", C-mount, WD 70 mm (LS-TCL-0056)

Model LS-TCL-0056

  • MountC-mount
  • Sensor1.1"
  • Working distance70 mm
  • Sensor format1.1"
$3,639.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

360° inspection lens, 1.1", C-mount, WD 70 mm (LS-TCL-0056)LS-TCL-0056

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Special inspection optics that image the sides or inner walls of a part in one shot.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0056
Aov82 °
Fov maximum120
Fov minimum10
Lens typeHole Inspection
Working ƒ/nf/13

Optics

Filter threadNo Filter Threads
Focus controlManual with Gear
Image circle10 mm
Working distance @ fov maximum70 mm
Working distance @ fov minimum13 mm

Sensor and imaging

Sensor format1.1"

Environment and compliance

Operating relative humidity (%)20-85 Non Condensing
Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate118.5 x 37.7 x 37.7 mm
Installation locationIndoor Use Only
Weight243 Grams

LS-TCL-0056

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0056 — 360° inspection lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Sensor format
1.1"
Mount
C-mount
Aov
82 °
Dimensions approximate
118.5 x 37.7 x 37.7 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
