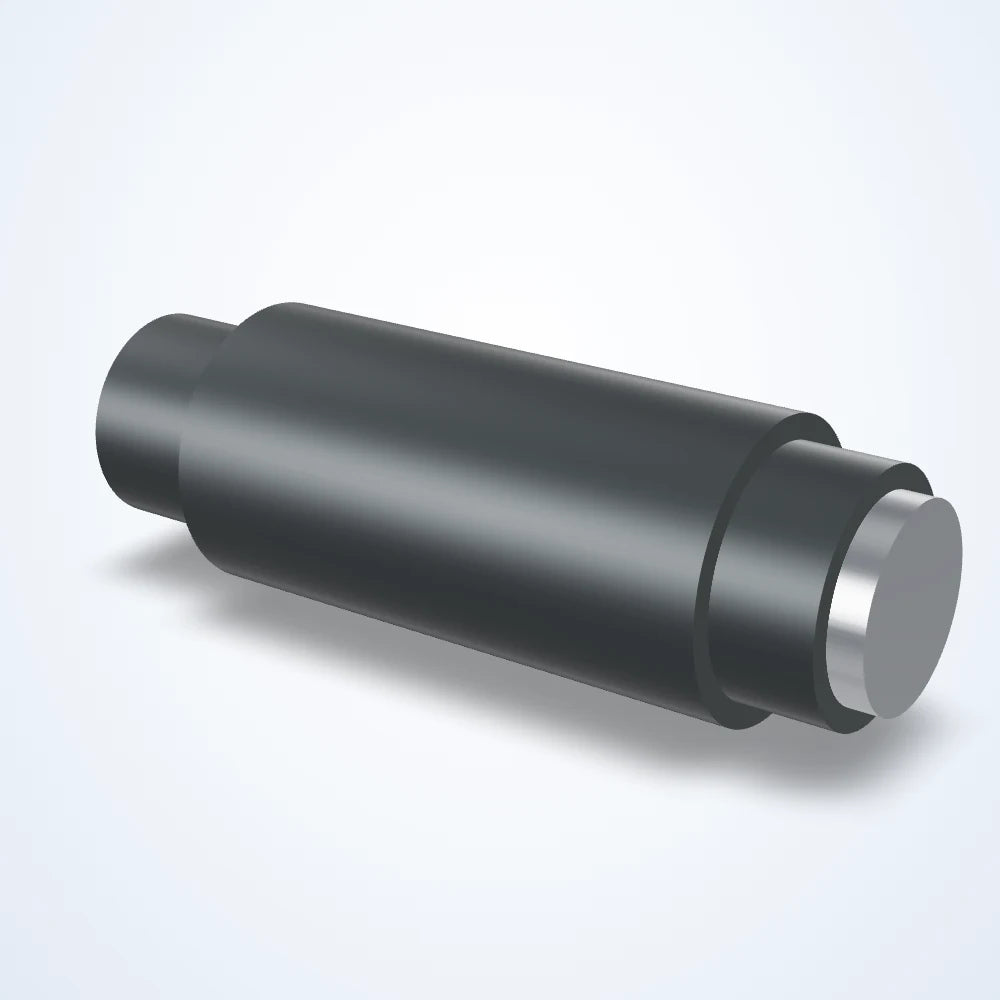

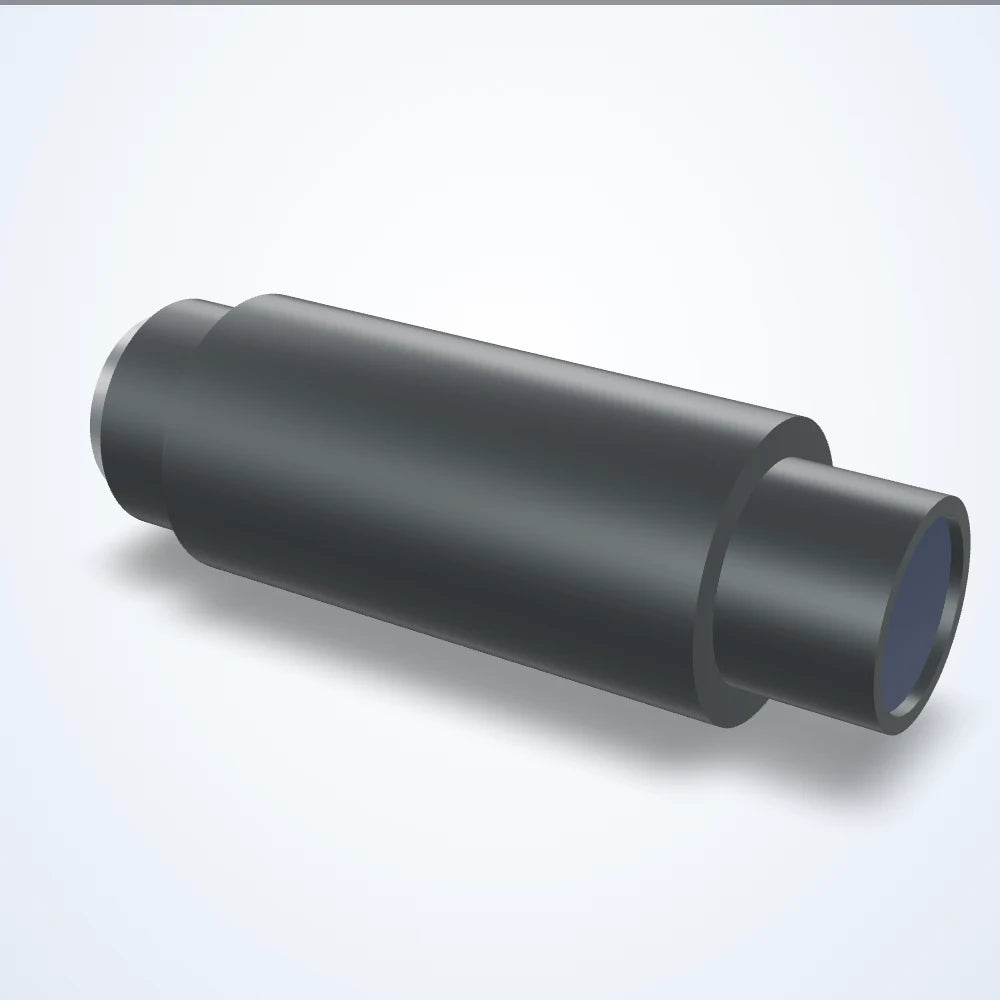

360° inspection lens, 1/2", C-mount (LS-TCL-0051)
Model LS-TCL-0051
- MountC-mount
- Sensor1/3.6"
- Working distance65 mm
- Sensor format1/3.6"
$4,039.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Special inspection optics that image the sides or inner walls of a part in one shot. Connection: hirose hr10a-7r-6pb(73).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0051 |
|---|---|
| Adjustments | Back focal adjustment, camera phase adjustment |
| Aov | 82 ° |
| Fov maximum | 120 |
| Fov minimum | 10 |
| Lens type | Hole Inspection |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | liquid lens |
| Response time | 1 Millisecond |
| Setting time | 4 Milliseconds |
| Type | hole inspection optics |
| Working ƒ/n | f/6 |
Optics
| Clear aperture | Ø0.50 |
|---|---|
| Focal power mode | Yes |
| Focus control | Liquid Lens |
| Image circle | 4.8 mm |
| Working distance @ fov maximum | 65 mm |
| Working distance @ fov minimum | 8 mm |
Interfaces and I/O
| Connector | Hirose HR10A-7R-6PB(73) |
|---|---|
| Connector housing height from axis | 45.61 mm |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Current range | -120 to +120 mA |
|---|
Mechanical
| Mount | C-mount |
|---|---|

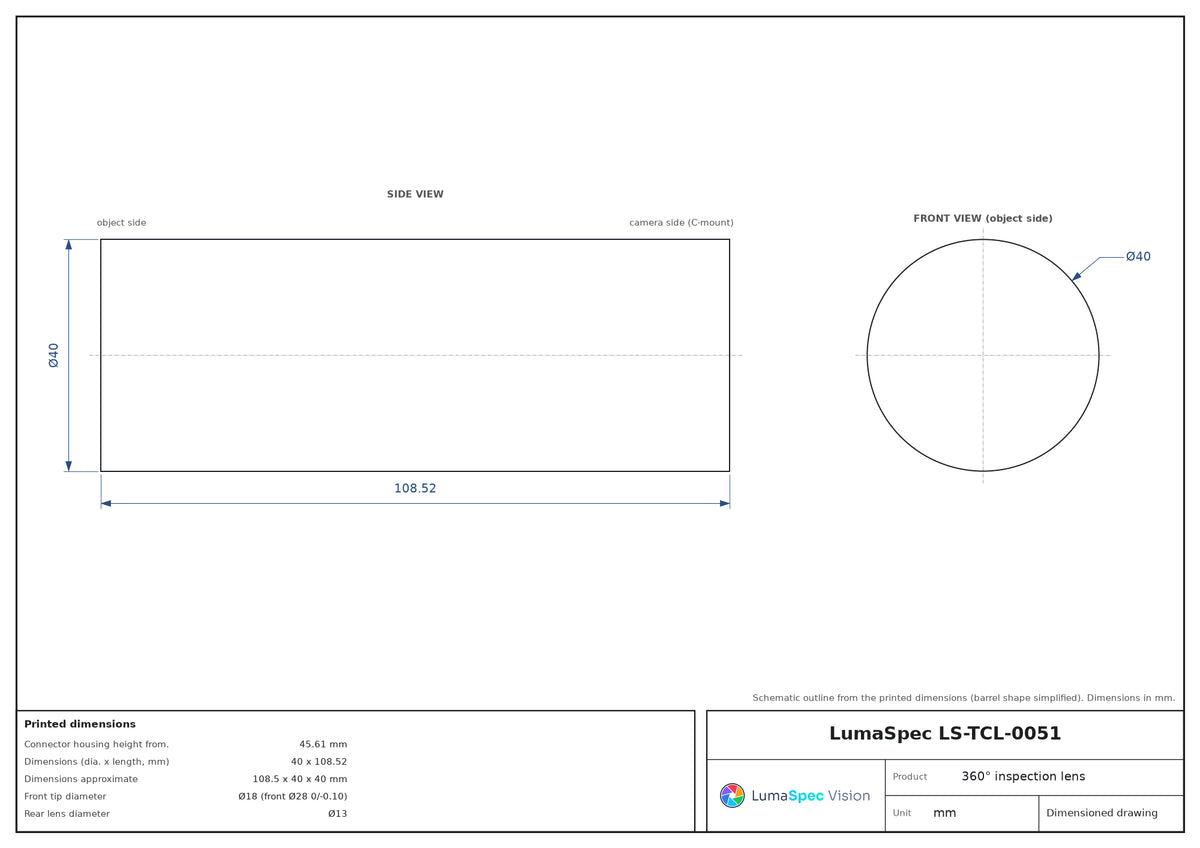

| Dimensions (dia. x length, mm) | 40 x 108.52 |
| Dimensions approximate | 108.5 x 40 x 40 mm |
| Front tip diameter | Ø18 (front Ø28 0/-0.10) |
| Installation location | Indoor Use Only |
| Rear lens diameter | Ø13 |
| Rear protrusion behind mount | 7.70 mm |
| Weight (g) | 255 |
Other models in the 360° inspection lens series, C-mount (S05) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0057 | C-mount · 1/2" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0058 | C-mount · 1/3" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0059 | C-mount · 2/3" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0060 | C-mount · 1.1" | $2,379.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0052 | C-mount · 1/2" | $3,039.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0054 | C-mount · 2/3" | $3,639.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0056 | C-mount · 1.1" | $3,639.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0053 | C-mount · 2/3" | $4,029.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0055 | C-mount · 1/1.56" | $4,819.00 Quote | Lead time confirmed with your quote | View |
