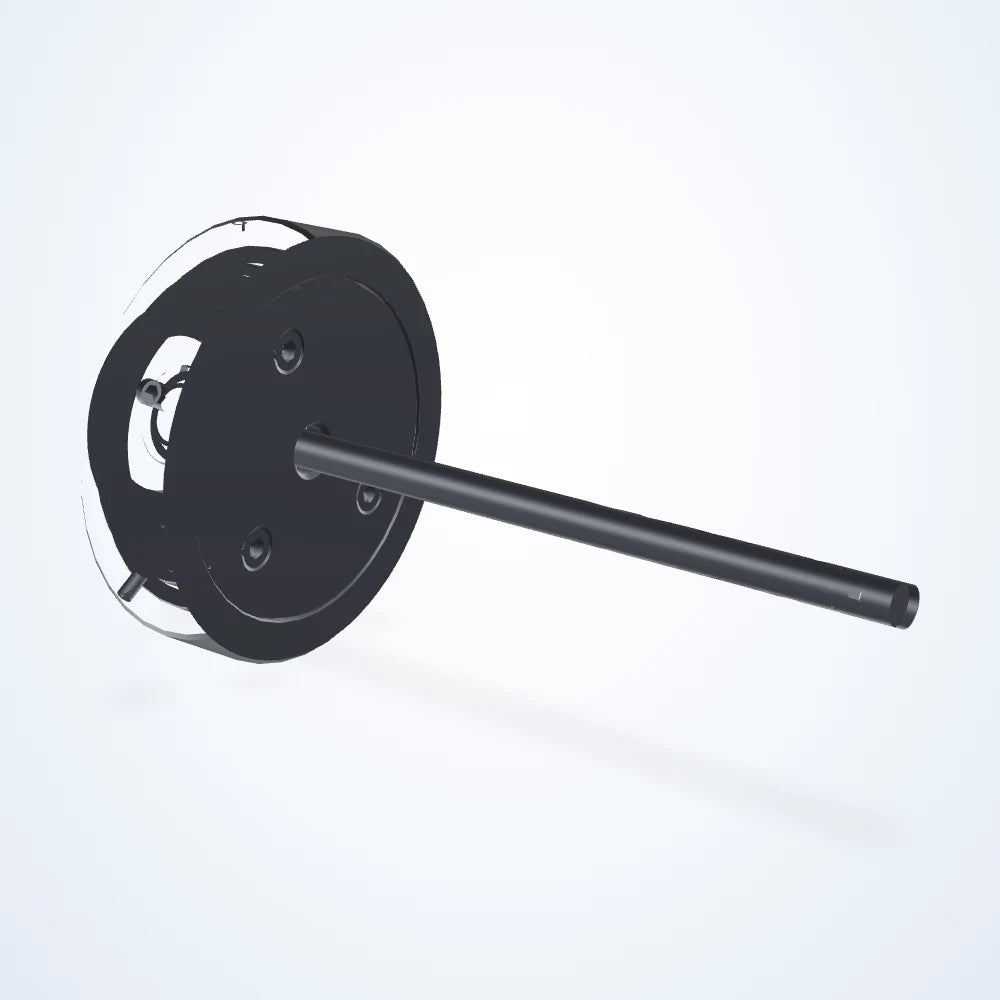

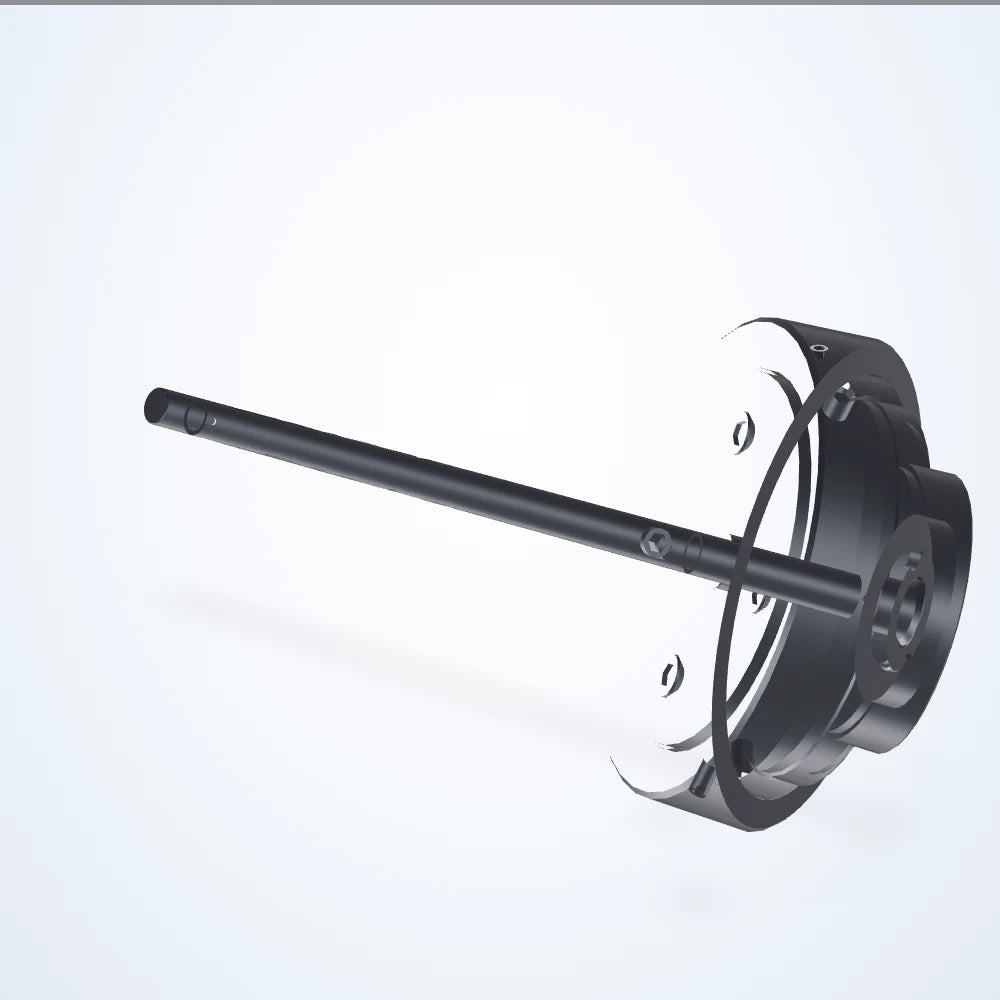

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 1/3", C-mount (LS-TCL-0045)
Model LS-TCL-0045
- MountC-mount
- Sensor1/3"
- Sensor format1/3"
- Image circleUp to 8 mm
$5,369.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Special inspection optics that image the sides or inner walls of a part in one shot.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0045 |
|---|---|
| Aov | 65 ° |
| Fov maximum | 25 |
| Fov minimum | 5.5 |
| Lens type | Boroscopic Probe |
| Working ƒ/n | f/30 |
Optics
| Filter thread | No Filter Threads |
|---|---|
| Focus control | Manual |
| Image circle | 3.4 mm |
Sensor and imaging
| Sensor format | 1/3" |
|---|
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

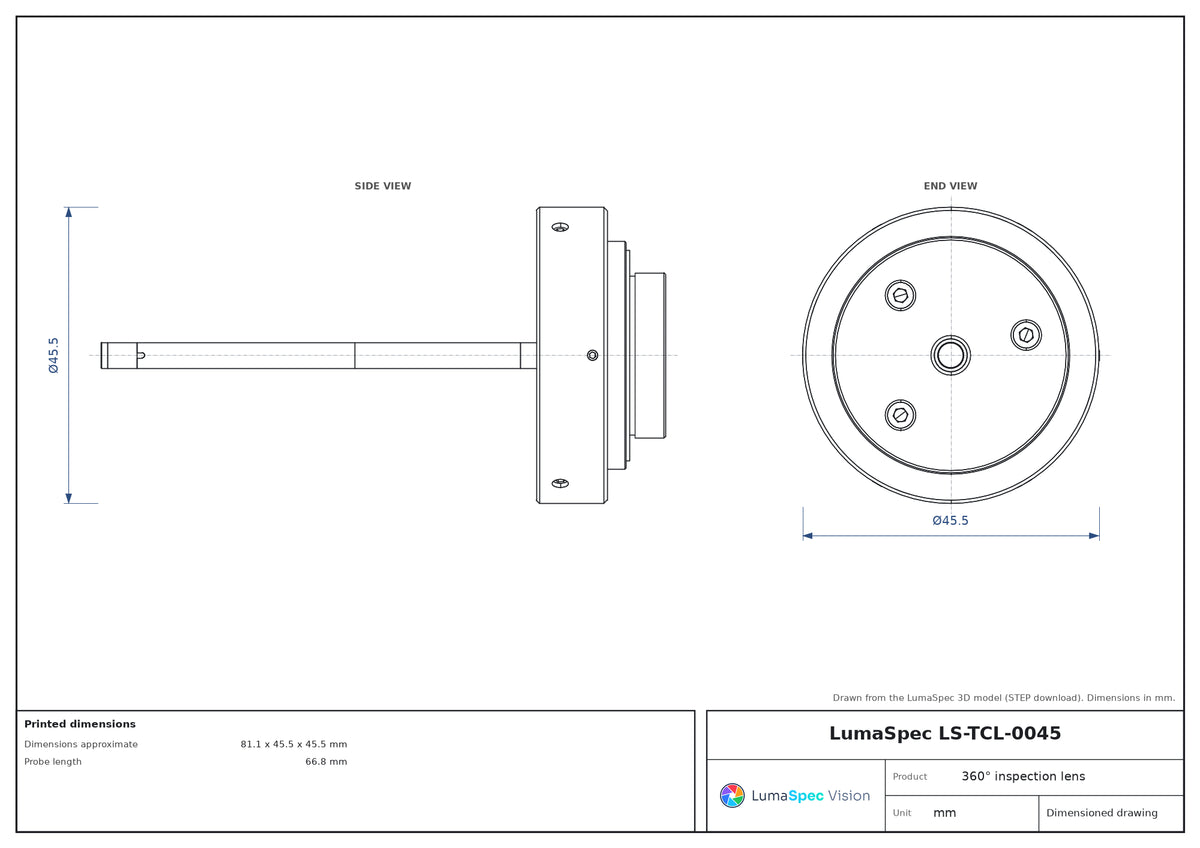

| Dimensions approximate | 81.1 x 45.5 x 45.5 mm |
| Installation location | Indoor Use Only |
| Probe length | 66.8 mm |
| Weight | 80 Grams |
