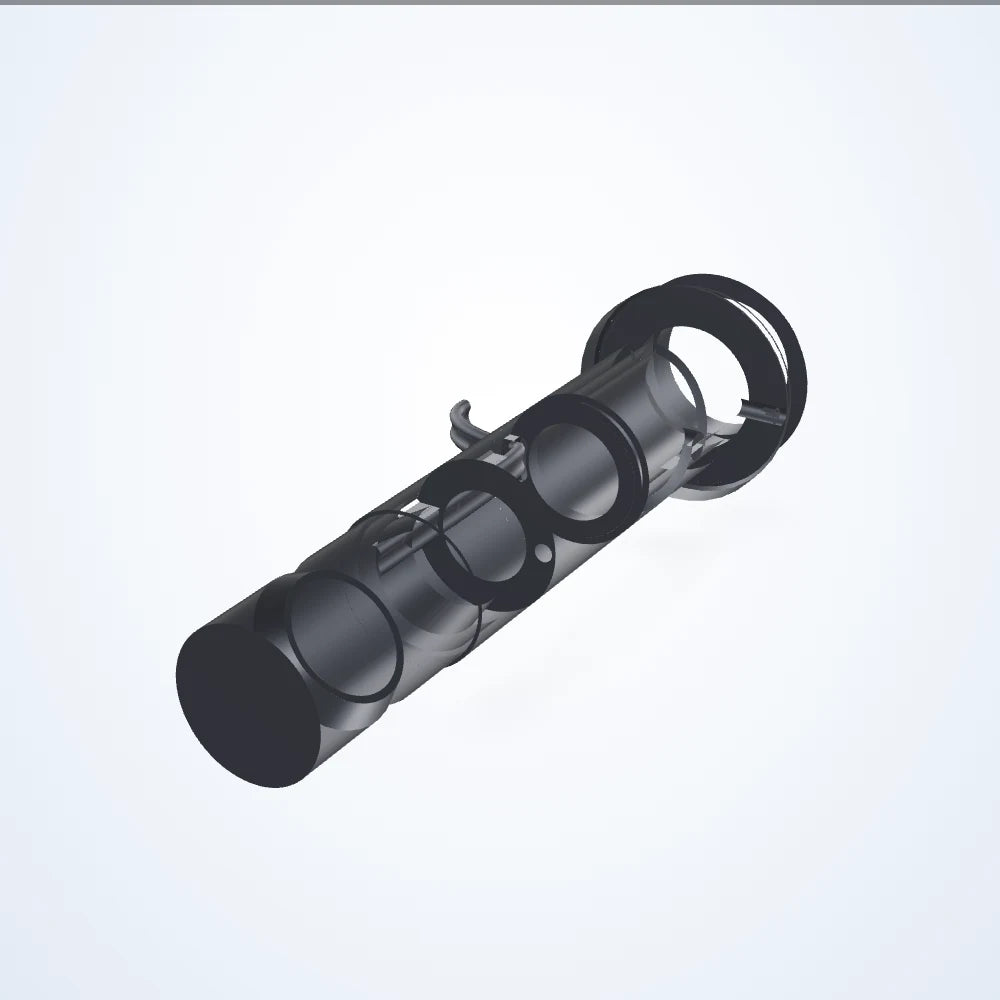

Rendered illustration: the actual product may differ in appearance.
360° inspection lenses
360° inspection lens, 2/3", C-mount, 112.9 x 21 mm (LS-TCL-0043)
Model LS-TCL-0043
- MountC-mount
- Sensor2/3"
- Sensor format2/3"
- Image circleUp to 8 mm
$4,799.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Special inspection optics that image the sides or inner walls of a part in one shot.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0043 |
|---|---|
| Aov | 60 ° |
| Fov maximum | ∞ |
| Fov minimum | 25 |
| Lens type | Boroscopic Probe |
| Working ƒ/n | f/18 |
Optics
| Filter thread | No Filter Threads |
|---|---|
| Focus control | Manual |
| Image circle | 7 mm |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Light
| LED current | 40 mA |
|---|---|
| Light color | White |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 4 Watts |
|---|---|
| Supply voltage | 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 112.9 x 21 x 21 mm |
| Installation location | Indoor Use Only |
| Probe length | 99.9 mm |
| Weight | 76 Grams |
LS-TCL-0043

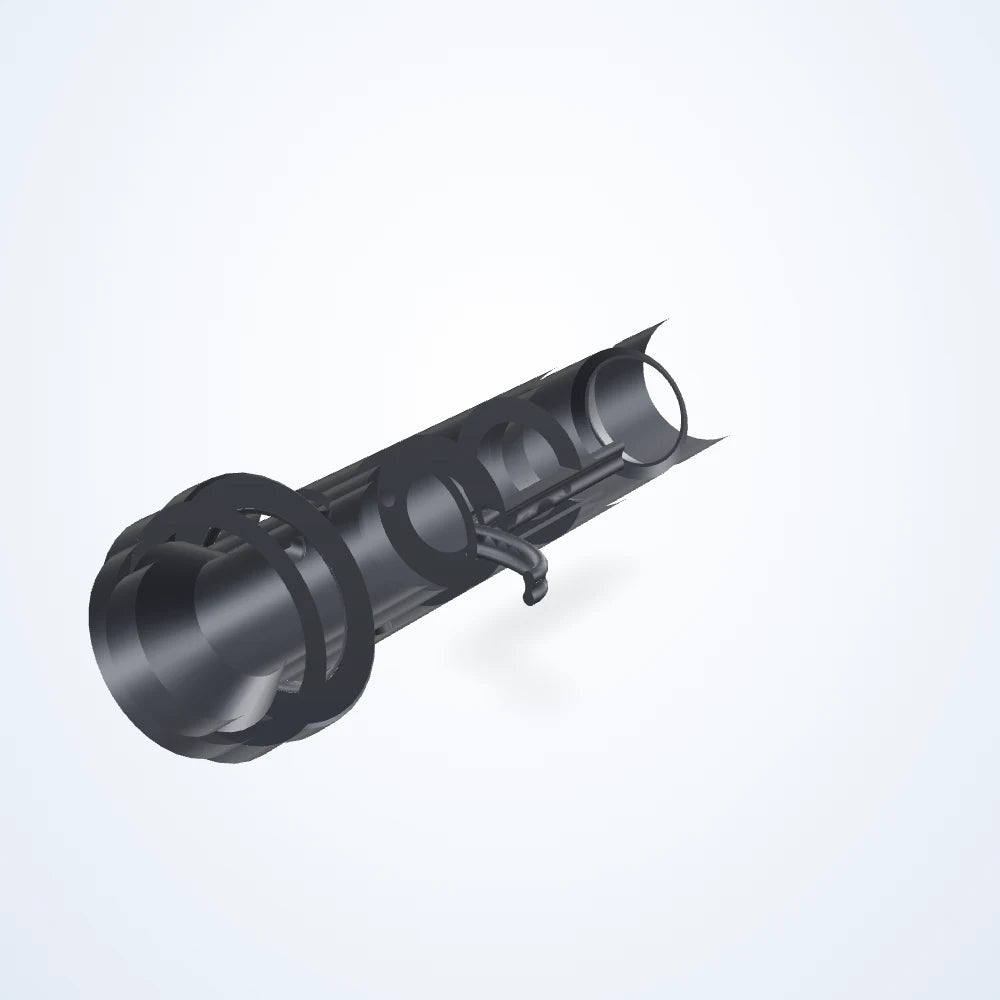

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Sensor format
- 2/3"
- Mount
- C-mount
- Probe length
- 99.9 mm

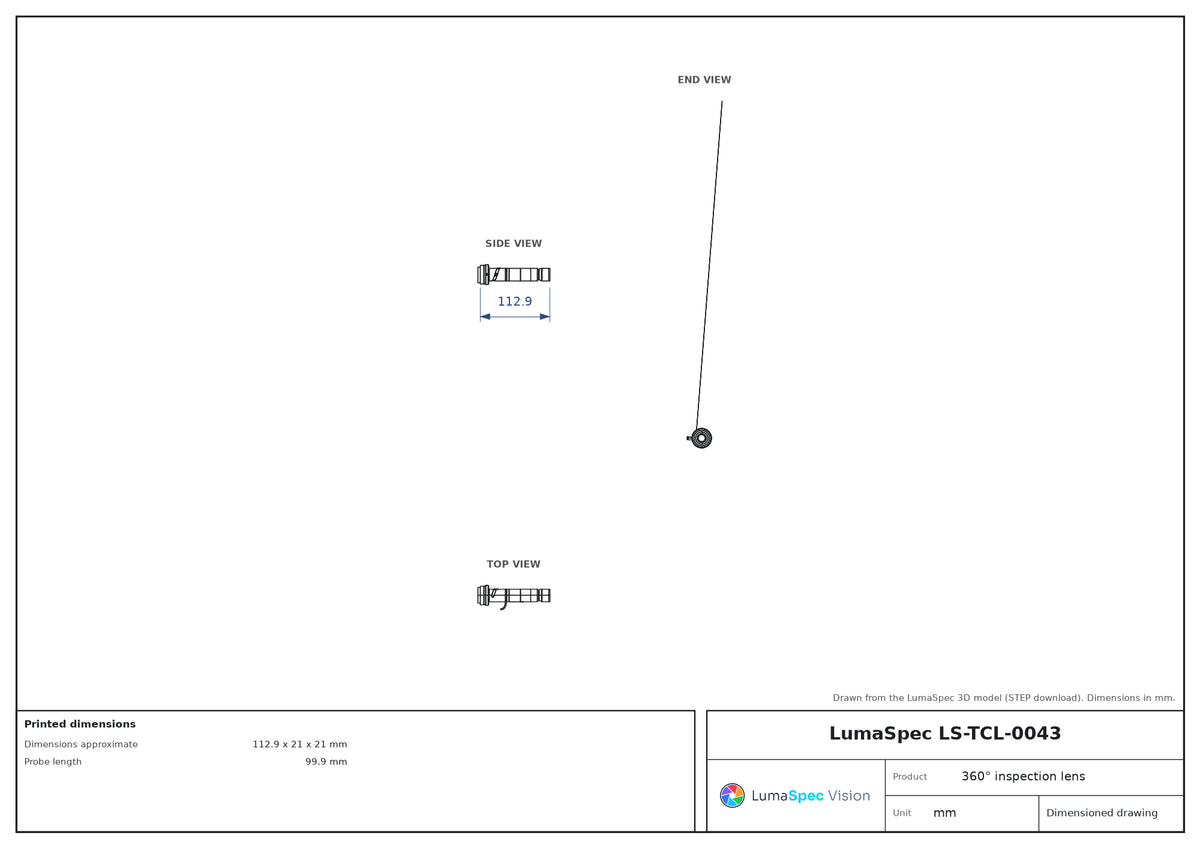

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
