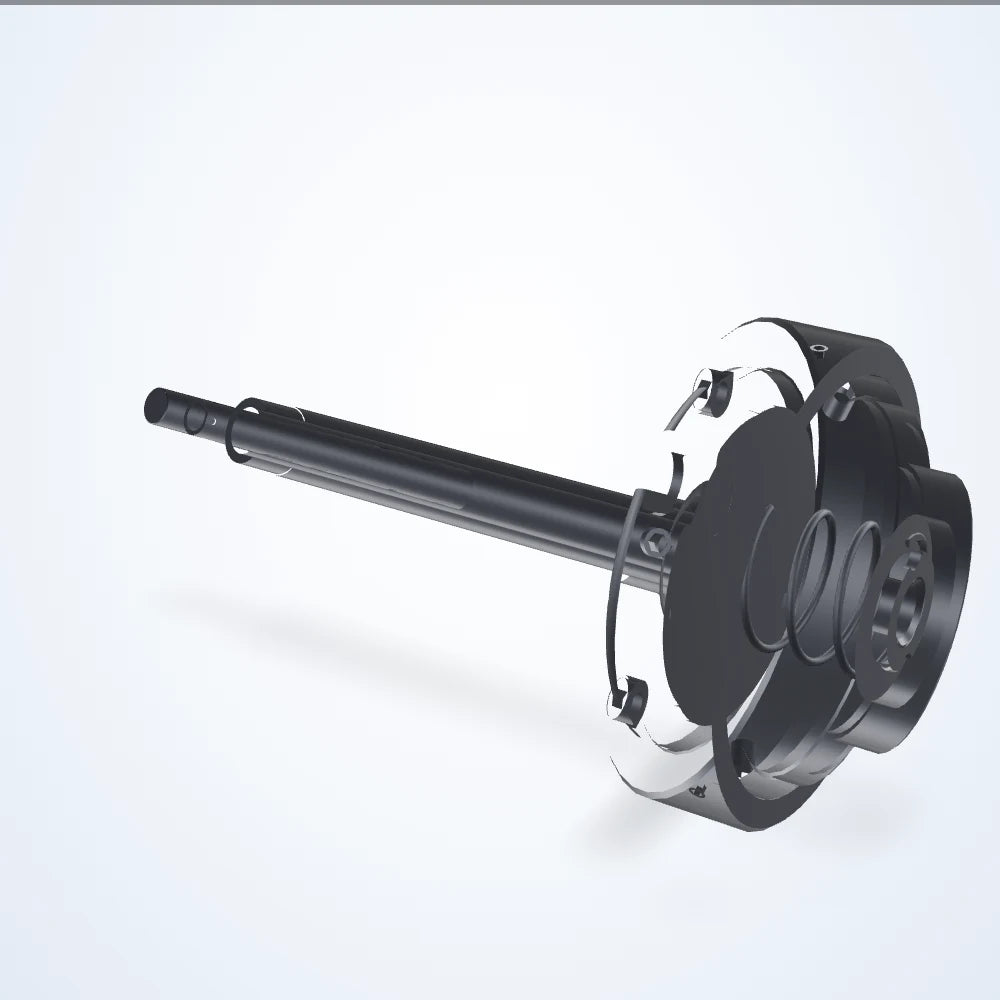

360° inspection lens, 1/3", C-mount (LS-TCL-0046)

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-mount, 81.1 x 45.5 mm, FOV 8 (LS-TCL-0046)

Model LS-TCL-0046

MountC-mount
Sensor1/3"
Sensor format1/3"
Image circleUp to 8 mm

$6,429.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Special inspection optics that image the sides or inner walls of a part in one shot.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0046
Aov	65 °
Fov maximum	25
Fov minimum	8
Lens type	Boroscopic Probe
Working ƒ/n	f/30

Optics

Filter thread	No Filter Threads
Focus control	Manual
Image circle	3.4 mm

Sensor and imaging

Sensor format	1/3"

Light

LED current	150 mA
Light color	White

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	45 Watts
Supply voltage	24 Volts

Mechanical

Mount	C-mount
Dimensions approximate	81.1 x 45.5 x 45.5 mm
Installation location	Indoor Use Only
Probe length	57.6 mm
Weight	85 Grams

LS-TCL-0046

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

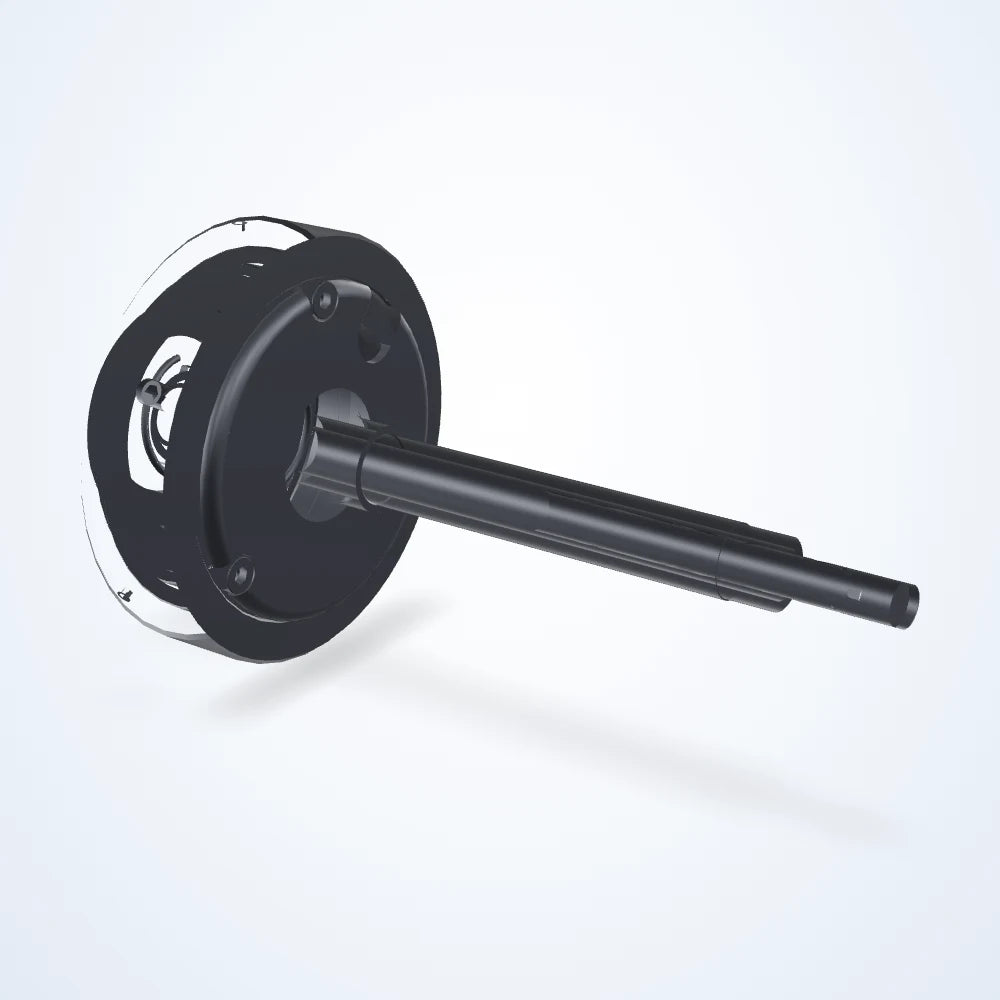

LS-TCL-0046 — 360° inspection lenses, View 1

Source CAD

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

Sensor format: 1/3"
Mount: C-mount
Probe length: 57.6 mm

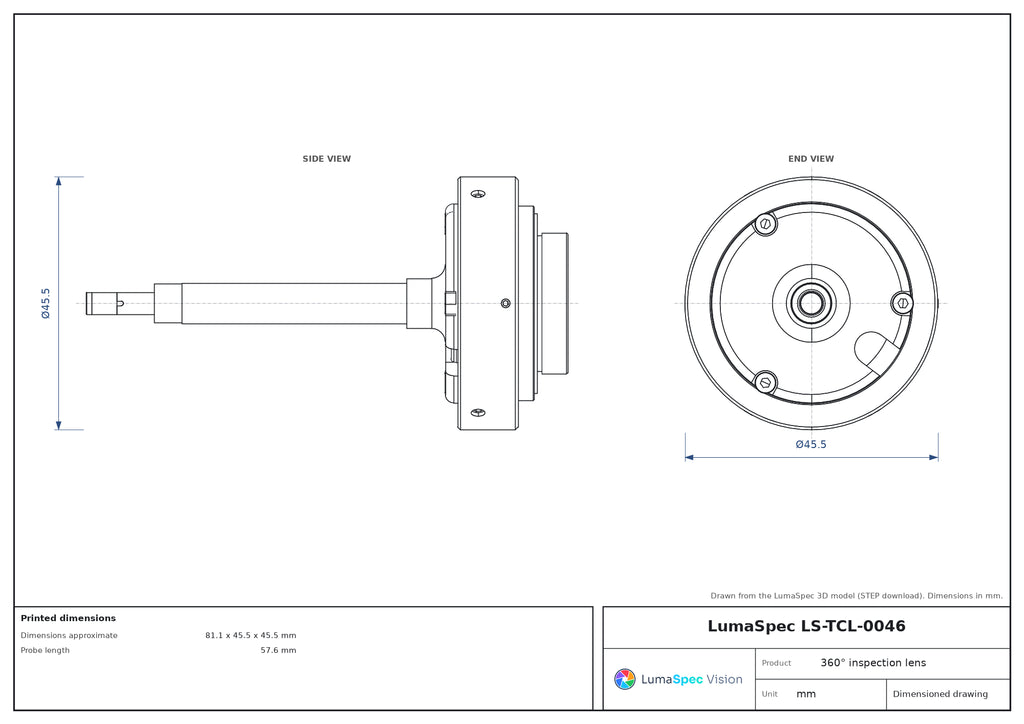

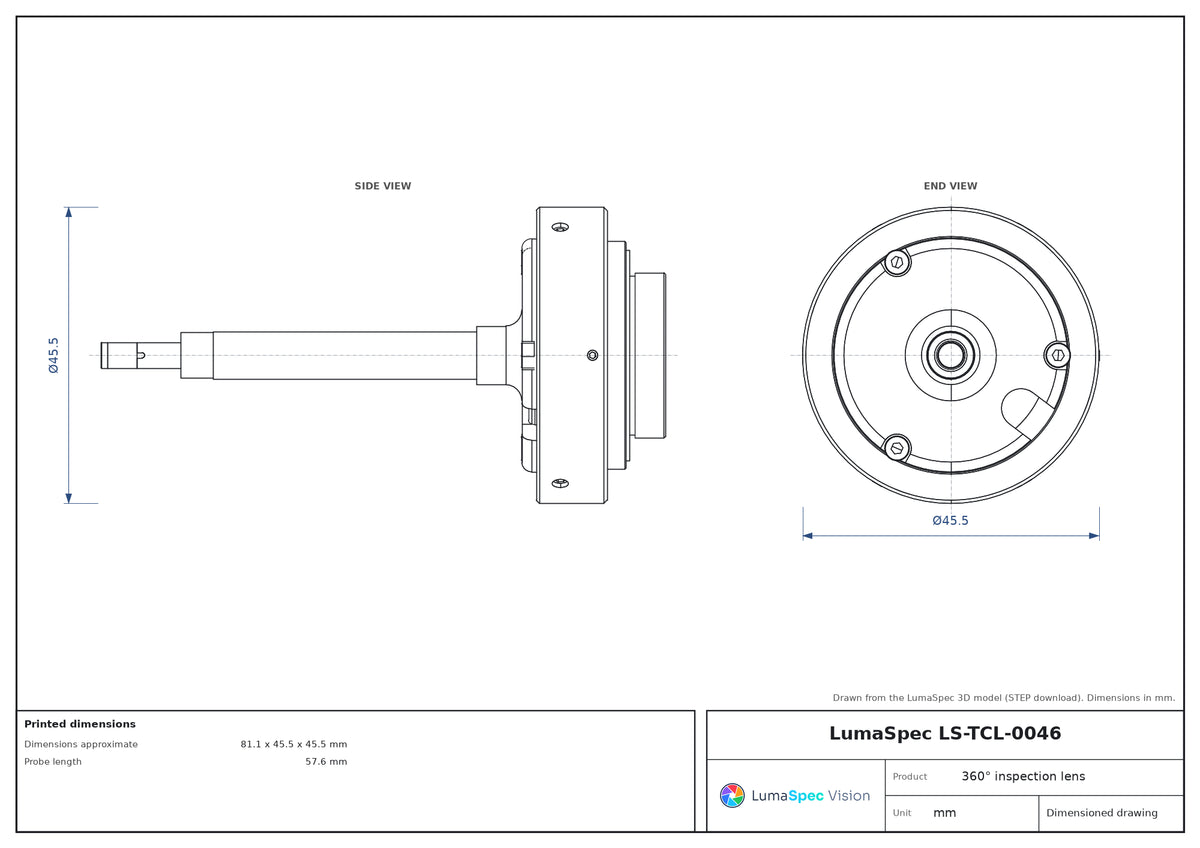

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the 360° inspection lens series, C-mount (S03) series

See all 8 models

Model	Size / key data	Price	Availability	Link
LS-TCL-0039	C-mount · 1/2"	$4,289.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0041	C-mount · 1/3"	$4,289.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0043	C-mount · 2/3"	$4,799.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0045	C-mount · 1/3"	$5,369.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0040	C-mount · 1/4"	$5,739.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0042	C-mount · 1/5.6"	$5,739.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0044	C-mount · 1/2.6"	$6,439.00 Quote	Lead time confirmed with your quote	View
