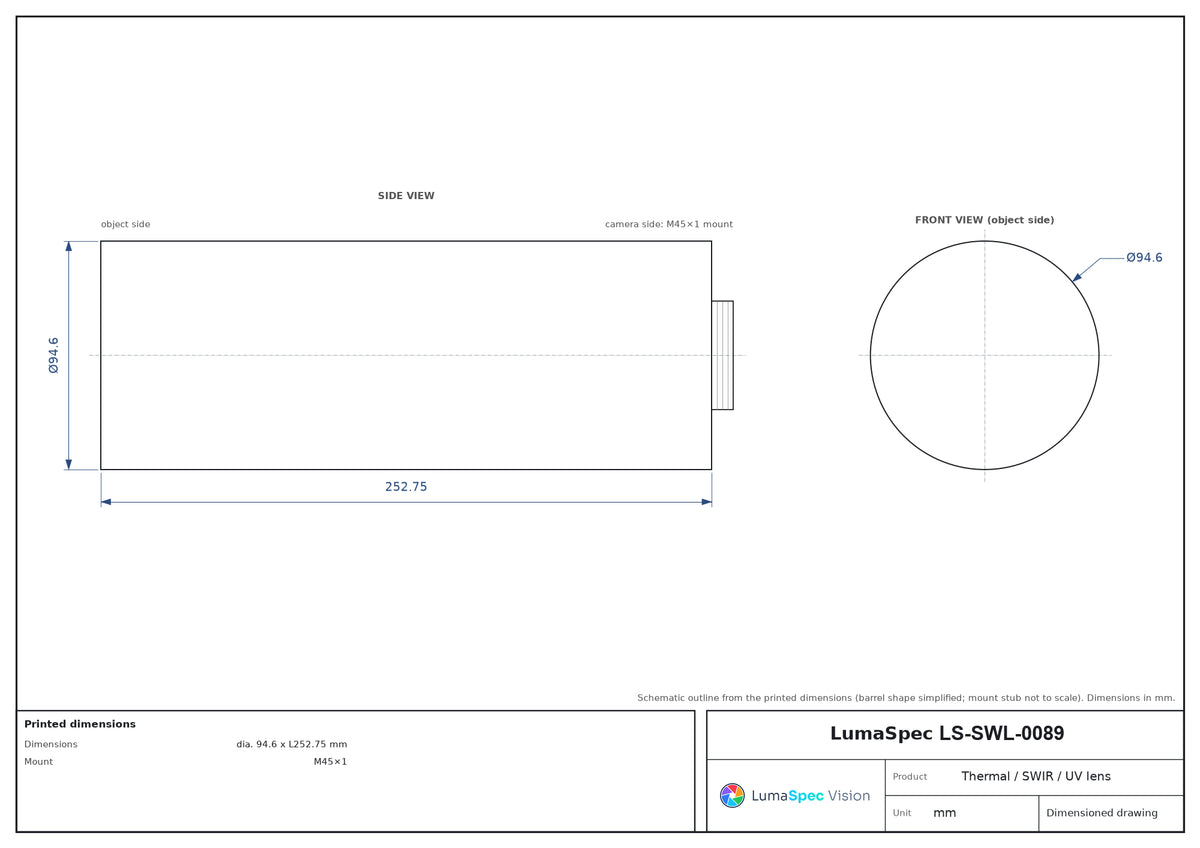

  • LS-SLWIRA9 dimensions (mm)

Thermal, SWIR & UV lenses

32 mm, F1, M45x1-mount LWIR Thermal Lens (LS-SWL-0089)

Model LS-SWL-0089

  • Focal length32 mm
  • MountM45x1
  • Sensor1.2"
  • ApertureF1
$609.00

In stock - ships the same business day (2 available, order by 2 PM ET)

2.99 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

32 mm, F1, M45x1-mount LWIR Thermal Lens (LS-SWL-0089)LS-SWL-0089

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

32 mm, F1, M45x1-mount LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 32 mm; sensor 1280×1024 12μm; aperture F1; mount M45×1; distortion 0.5%.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0089
Angle of view (deg)1.81°(D)×1.42°(H)×1.13°(V)
Front lens coatingHD

Optics

Focal length32 mm
ApertureF1
Distortion0.5%
Relative illumination0.99
Focus methodFixed
Focus range13.6mm
Mechanical back focal length7 mm
Image circle (derived)dia. 19.7 mm, from the 1280 x 1024 detector at 12 micron pitch

Sensor and imaging

Sensor1280×1024 12μm

Environment and compliance

Operating temperatureNon-athermalized

Mechanical

MountM45×1
Dimensionsdia. 94.6 x L252.75 mm
Weight<2063g
Shipping weight (estimated)2.99 kg

Photo shows a representative model of this series; see the specifications for this model.
