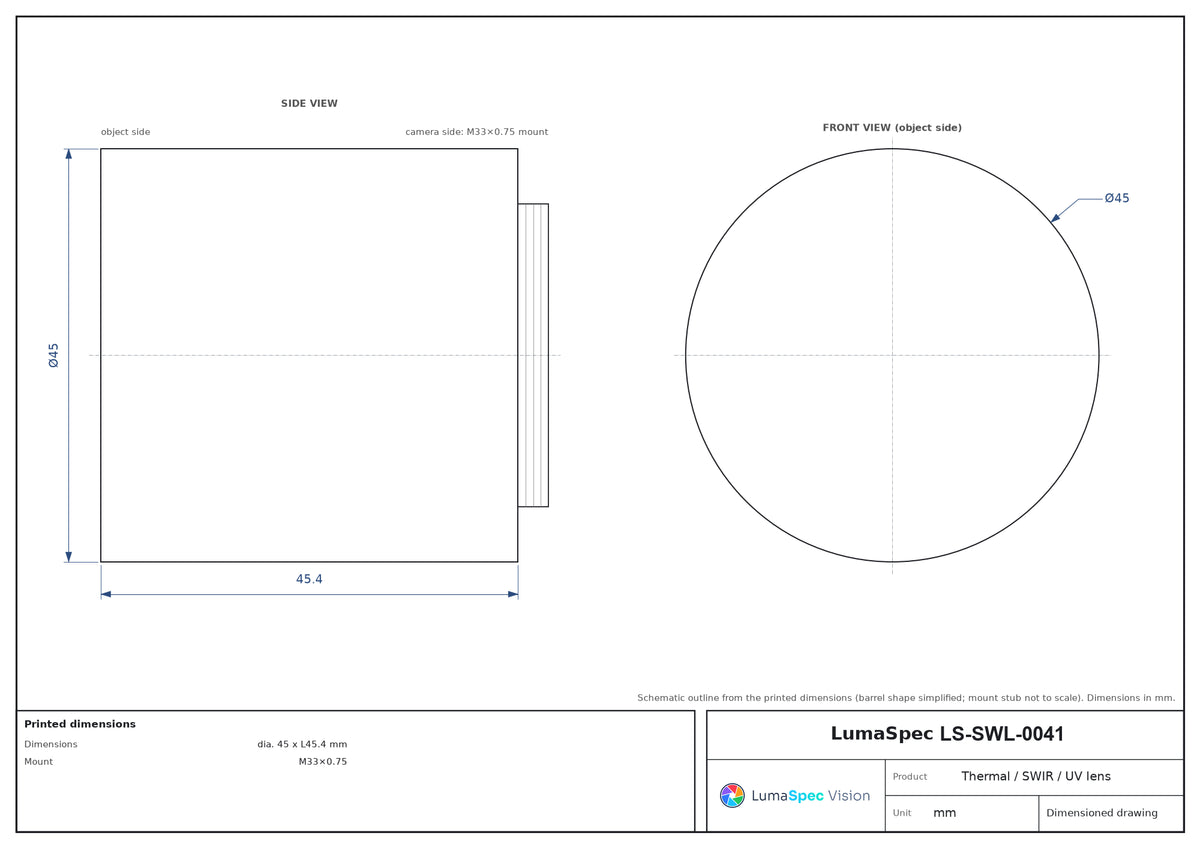

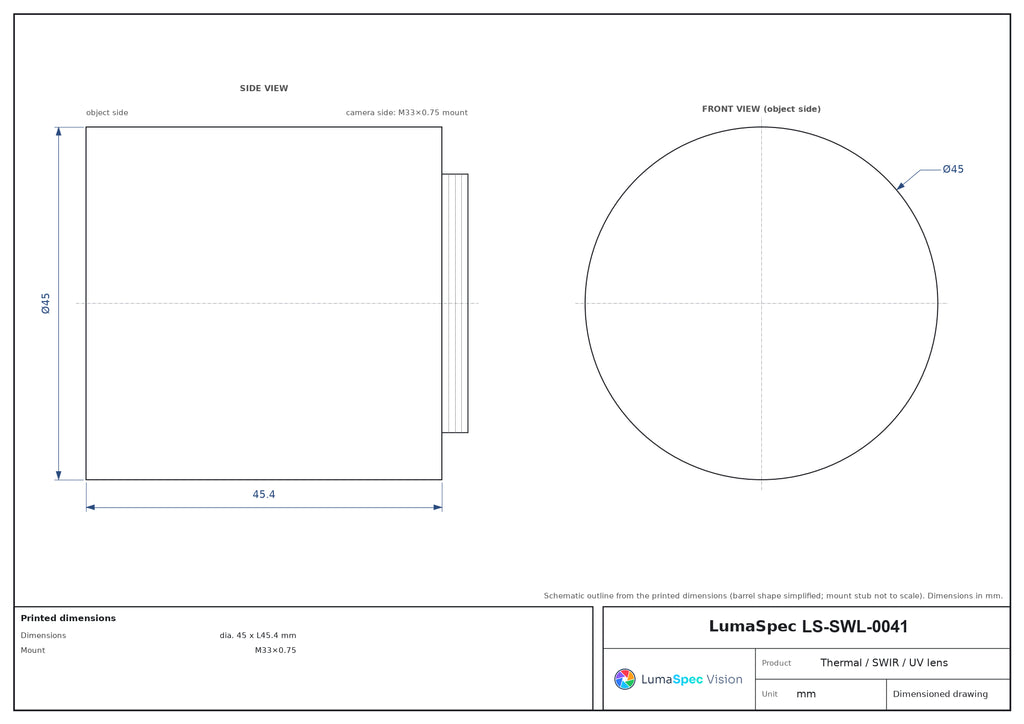

  • LS-SWL-0041 dimensions (mm)

Thermal, SWIR & UV lenses

35 mm, F1 LWIR Thermal Lens, BFL 7.5 mm, dia. 45 x L45.4 mm (LS-SWL-0041)

Model LS-SWL-0041

  • Focal length35 mm
  • MountM33x0.75
  • Sensor1/1.2"
  • ApertureF1
$609.00

Ships in 2-3 weeks

0.21 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, F1 LWIR Thermal Lens, BFL 7.5 mm, dia. 45 x L45.4 mm (LS-SWL-0041)LS-SWL-0041

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 35 mm; sensor 640×512 17μm; aperture F1; mount M33×0.75; distortion -0.22%.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0041
Angle of view (deg)23.12°(D)×17.67°(H)×14.18°(V)
SealingIP 67
Front lens coatingHD

Optics

Focal length35 mm
ApertureF1
Distortion-0.22%
Relative illumination0.93
Focus methodAdjustable focus
Focus range3m~∞
Mechanical back focal length7.5 mm
Image circle (derived)dia. 13.9 mm, from the 640 x 512 detector at 17 micron pitch

Sensor and imaging

Sensor640×512 17μm

Environment and compliance

Operating temperature-40℃ to +80℃

Mechanical

MountM33×0.75
Dimensionsdia. 45 x L45.4 mm
Weight<80g
Shipping weight (estimated)0.21 kg

Photo shows a representative model of this series; see the specifications for this model.
