35 mm, F1, Flange-mount LWIR Thermal Lens, BFL 3.83 mm (LS-SWL-0122)
Model LS-SWL-0122
- Focal length35 mm
- MountFlange mount
- Sensor1/1.7"
- ApertureF1
$609.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, F1, Flange-mount LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 35 mm; sensor 640×512 12μm; aperture F1; mount Flange; distortion -1.5%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0122 |
|---|---|
| Angle of view (deg) | 16.1°(D)×12.6°(H)×10.1°(V) |
| Sealing | Front IP 67 |
| Front lens coating | DLC |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F1 |
| Distortion | -1.5% |
| Relative illumination | 0.92 |
| Focus method | Fixed |
| Focus range | 1.5m~∞ |
| Mechanical back focal length | 3.83 mm |
| Image circle (derived) | dia. 9.8 mm, from the 640 x 512 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 640×512 12μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +60℃ / Non-athermalized |
|---|
Mechanical
| Mount | Flange |
|---|---|

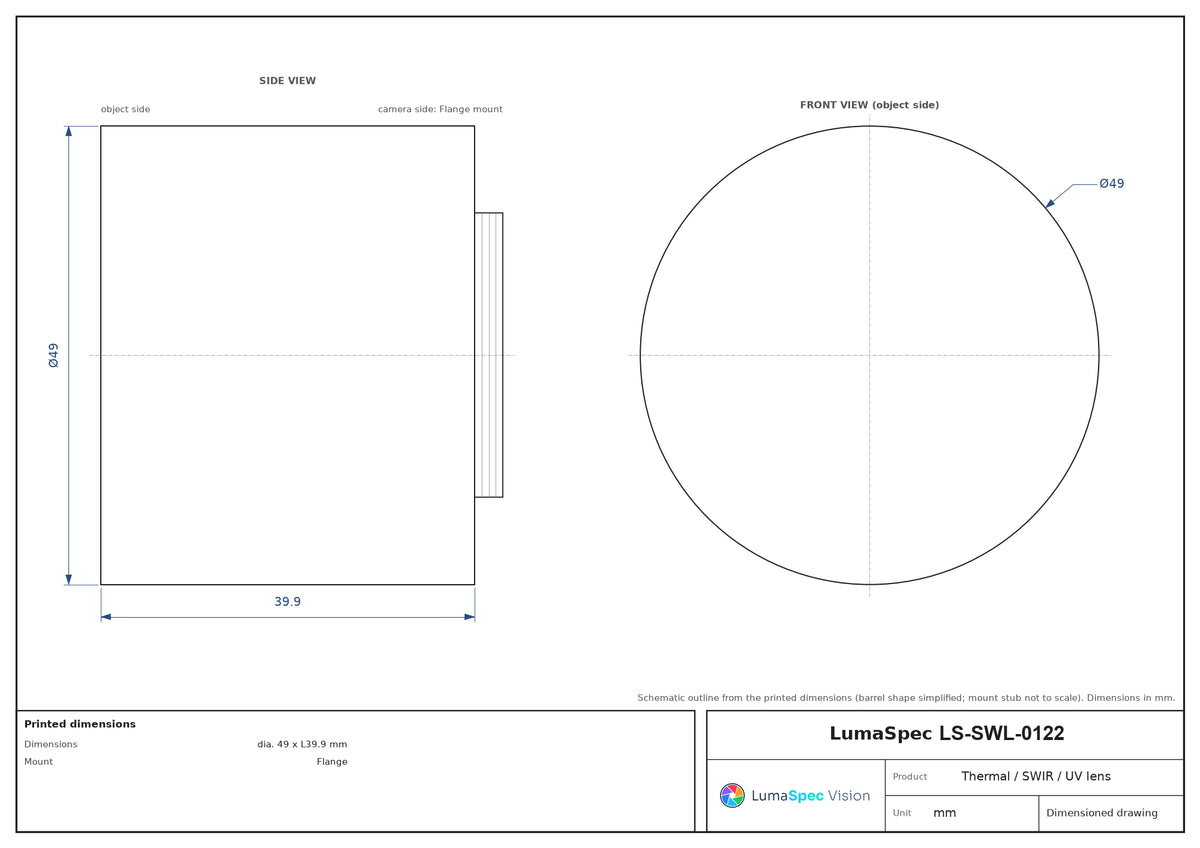

| Dimensions | dia. 49 x L39.9 mm |
| Weight | <110g |
| Shipping weight (estimated) | 0.25 kg |
Photo shows a representative model of this series; see the specifications for this model.
