28.1 mm, F2.8 LWIR Thermal Lens (LS-SWL-0027)
Model LS-SWL-0027
- Focal length28.1 mm
- MountM9.5x0.5
- Sensor1/3"
- ApertureF2.8
$519.00
Quoted price: add to quote for lead time and volume pricing.
No final catalogue part number from the factory yet: we confirm the exact lens and lead time with your quote.
Ships in 2-3 weeks
0.12 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
28.1 mm, F2.8 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 28.1 mm; sensor 2560×1440 2μm; aperture F2.8; mount M9.5x0.5; distortion 0.91%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0027 |
|---|---|
| Angle of view (deg) | 10.32(H)x5.84(V) |
| Sealing | Front IP 67 |
| Front lens coating | Multi-layer coating |
Optics
| Focal length | 28.1 mm |
|---|---|
| Aperture | F2.8 |
| Distortion | 0.91% |
| Relative illumination | 0.66 |
| Focus method | Fixed |
| Mechanical back focal length | 4.5 mm |
| Image circle (derived) | dia. 5.9 mm, from the 2560 x 1440 detector at 2 micron pitch |
Sensor and imaging
| Sensor | 2560×1440 2μm |
|---|
Mechanical
| Mount | M9.5x0.5 |
|---|---|

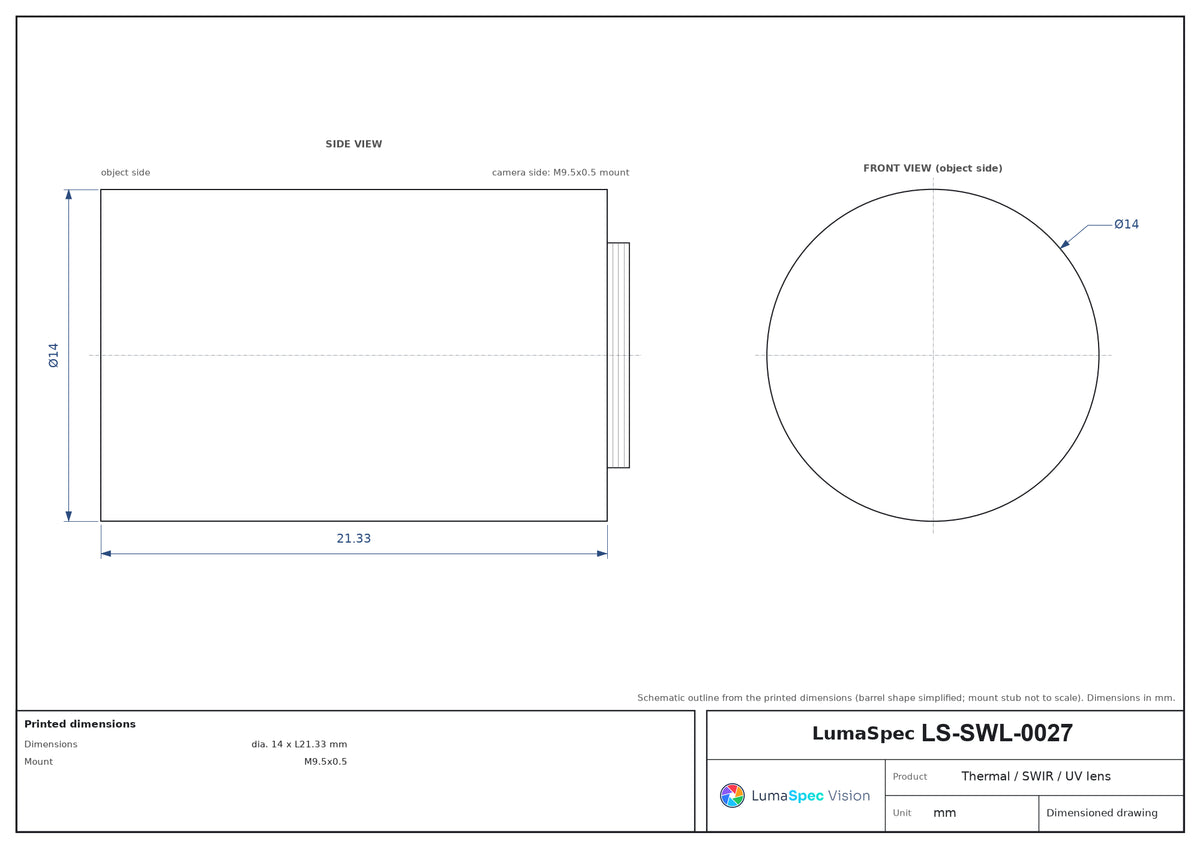

| Dimensions | dia. 14 x L21.33 mm |
| Weight | <15g |
| Shipping weight (estimated) | 0.12 kg |
Photo shows a representative model of this series; see the specifications for this model.
