Thermal, SWIR & UV lenses
8.7 mm, F1.2 LWIR Thermal Lens (LS-SWL-0086)
Model LS-SWL-0086
- Focal length8.7 mm
- MountM34x0.5
- Sensor1.2"
- ApertureF1.2
$269.00
Ships in 2-3 weeks
0.33 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8.7 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 8.7 mm; sensor 1280×1024 12μm; aperture F1.2; mount M34×0.5; distortion -20%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0086 |
|---|---|
| Angle of view (deg) | 109.56°(D)×90.45°(H)×75.1°(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 8.7 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | -20% |
| Relative illumination | 0.8 |
| Focus method | Fixed |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 9 mm |
| Image circle (derived) | dia. 19.7 mm, from the 1280 x 1024 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 1280×1024 12μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M34×0.5 |
|---|---|

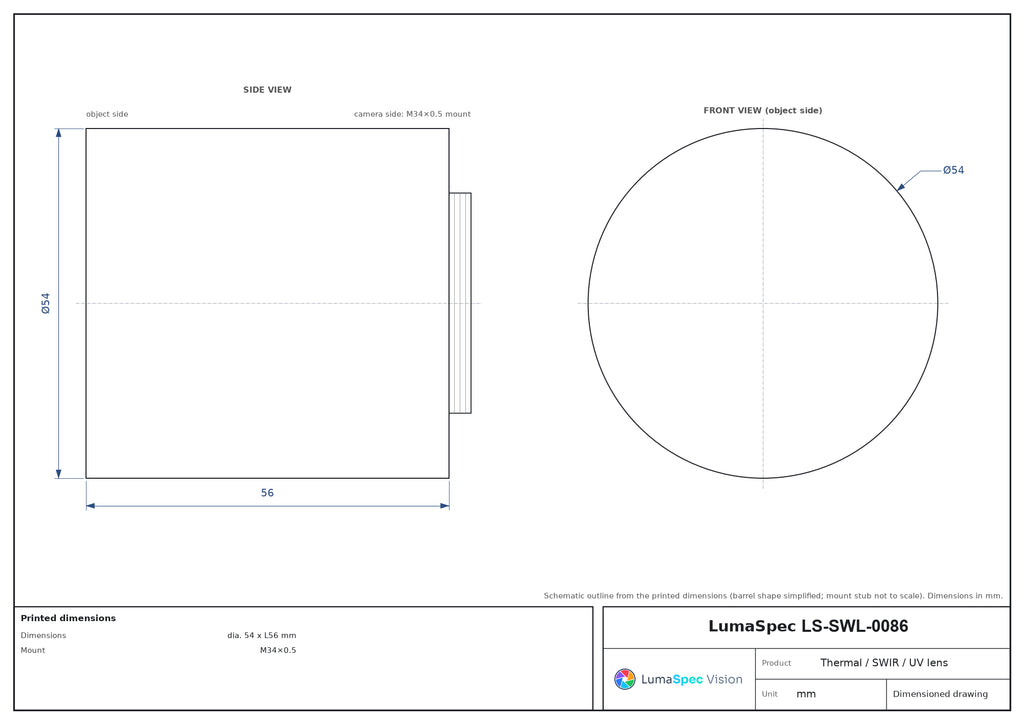

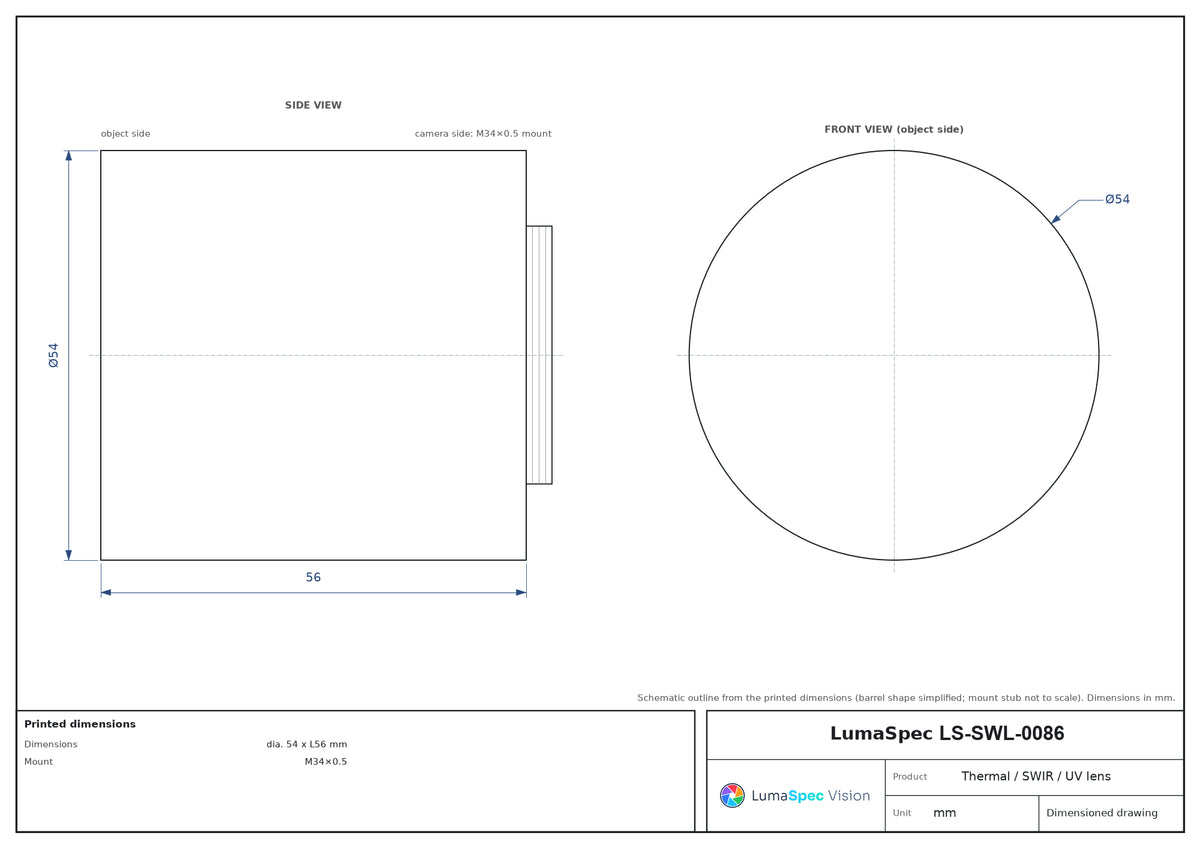

| Dimensions | dia. 54 x L56 mm |
| Weight | <166g |
| Shipping weight (estimated) | 0.33 kg |
Photo shows a representative model of this series; see the specifications for this model.
