9 mm, F1 LWIR Thermal Lens, BFL 4.8 mm (LS-SWL-0056)
Model LS-SWL-0056
- Focal length9 mm
- MountM17x0.75
- Sensor1/5.6"
- ApertureF1
$279.00
Ships in 2-3 weeks
0.11 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
9 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 9 mm; sensor 256×192 12μm; aperture F1; mount M17×0.75; distortion -2.1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0056 |
|---|---|
| Angle of view (deg) | 24.56°(D)×19.63°(H)×14.71°(V) |
| Front lens coating | HD |
Optics
| Focal length | 9 mm |
|---|---|
| Aperture | F1 |
| Distortion | -2.1% |
| Relative illumination | 0.9 |
| Focus method | Fixed |
| Focus range | 0.2m~∞ |
| Mechanical back focal length | 4.8 mm |
| Image circle (derived) | dia. 3.8 mm, from the 256 x 192 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 256×192 12μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M17×0.75 |
|---|---|

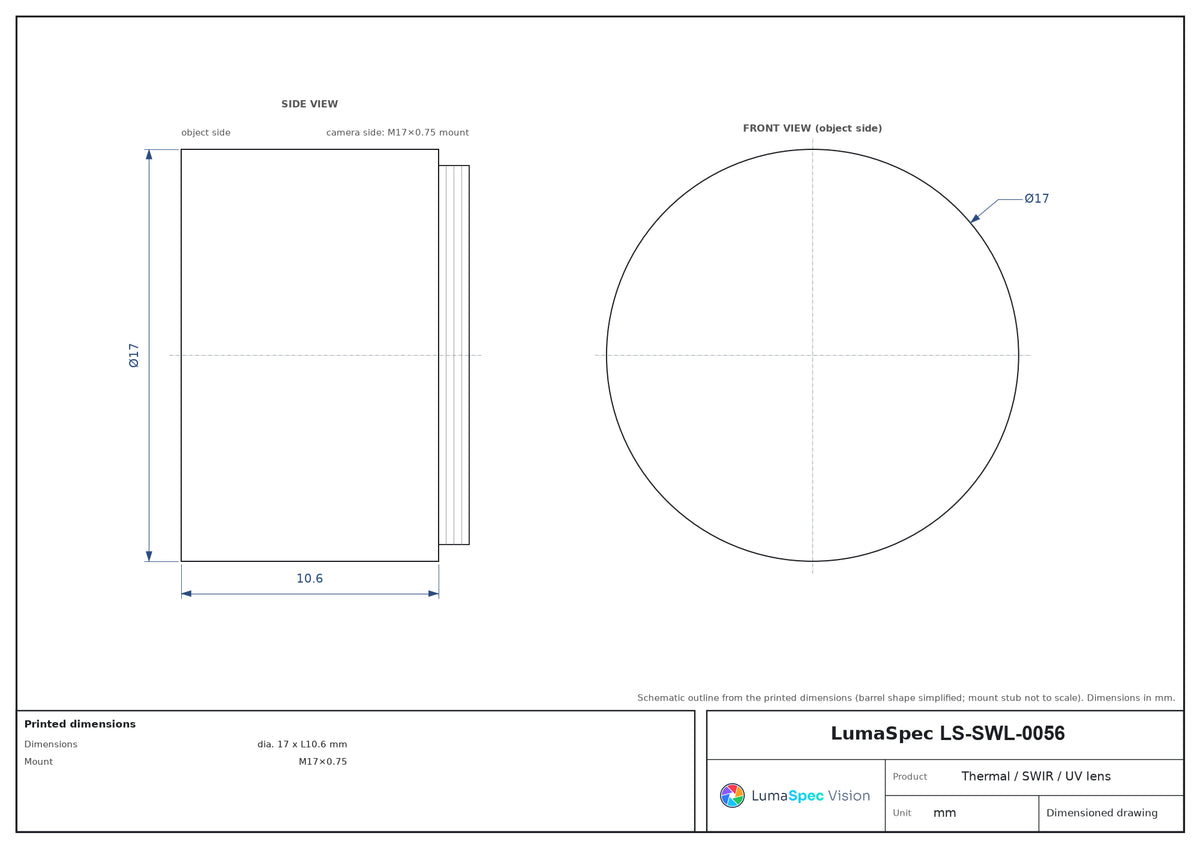

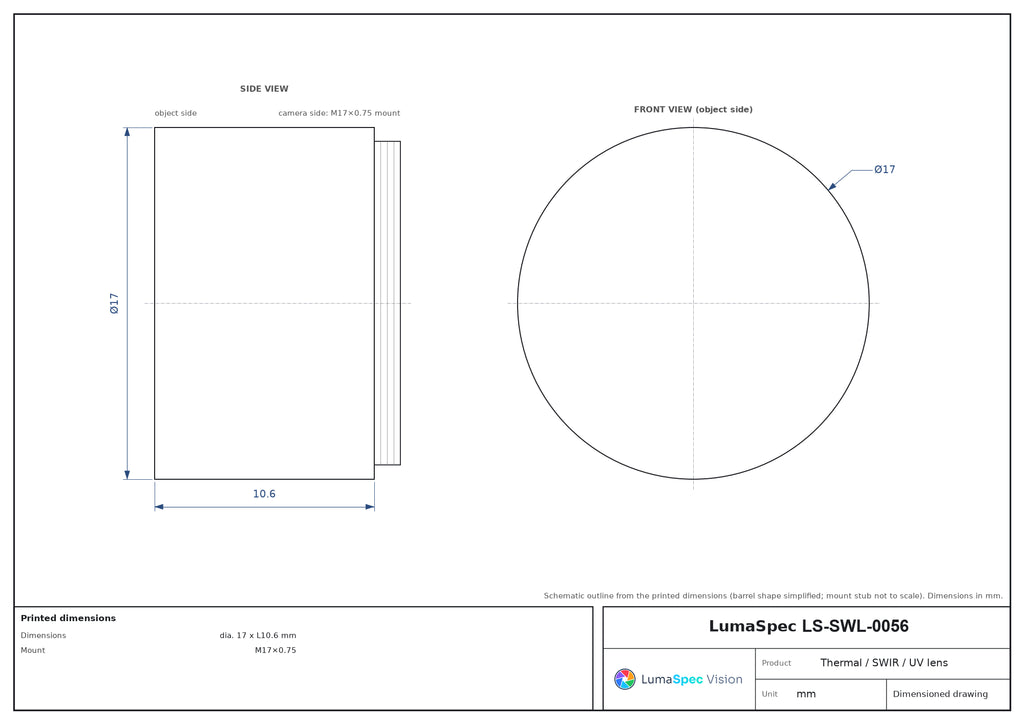

| Dimensions | dia. 17 x L10.6 mm |
| Weight | <10g |
| Shipping weight (estimated) | 0.11 kg |
Photo shows a representative model of this series; see the specifications for this model.
