7 mm, F1.1 LWIR Thermal Lens (LS-SWL-0178)
Model LS-SWL-0178
- Focal length7 mm
- MountM34x0.75
- Sensor1/1.8"
- ApertureF1.1
$249.00
Ships in 2-3 weeks
0.14 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
7 mm, F1.1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 7 mm; sensor 400x300 17um; aperture F1.1; mount M34x0.75; distortion 9.1%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0178 |
|---|---|
| Angle of view (deg) | 67.24(D)x54.4(H)x41.1(V) |
| Sealing | IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 7 mm |
|---|---|
| Aperture | F1.1 |
| Distortion | 9.1% |
| Relative illumination | 0.81 |
| Focus range | 0.3m~∞ |
| Mechanical back focal length | 7.5 mm |
| Focus method | Fixed |
| Image circle (derived) | dia. 8.5 mm, from the 400 x 300 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 400x300 17um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M34x0.75 |
|---|---|

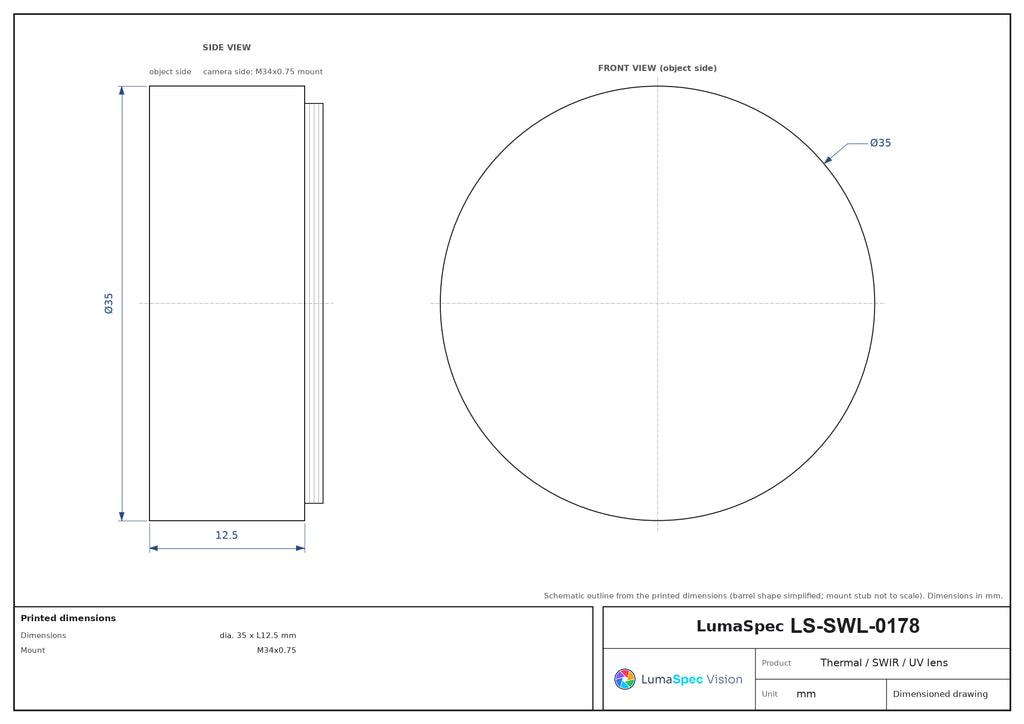

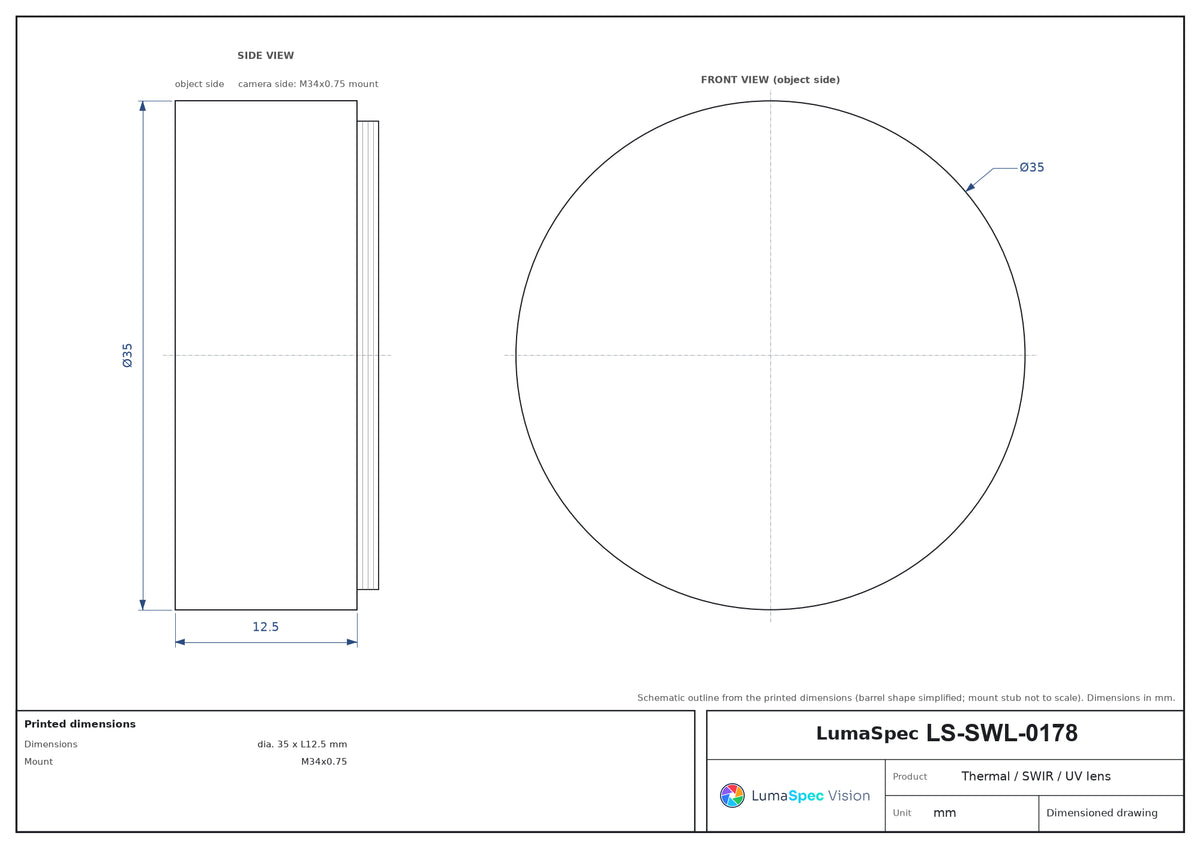

| Dimensions | dia. 35 x L12.5 mm |
| Weight | <30g |
| Shipping weight (estimated) | 0.14 kg |
Photo shows a representative model of this series; see the specifications for this model.
