15 mm, F1 LWIR Thermal Lens, BFL 4 mm (LS-SWL-0077)
Model LS-SWL-0077
- Focal length15 mm
- MountM14x0.5
- Sensor1/5.6"
- ApertureF1
$359.00
Ships in 2-3 weeks
0.14 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
15 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 15 mm; sensor 256×192 12μm; aperture F1; mount M14×0.5; distortion -0.87%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0077 |
|---|---|
| Angle of view (deg) | 14.65°(D)×11.73°(H)×8.8°(V) |
| Sealing | IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 15 mm |
|---|---|
| Aperture | F1 |
| Distortion | -0.87% |
| Relative illumination | 0.97 |
| Focus method | Fixed |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 4 mm |
| Image circle (derived) | dia. 3.8 mm, from the 256 x 192 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 256×192 12μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M14×0.5 |
|---|---|

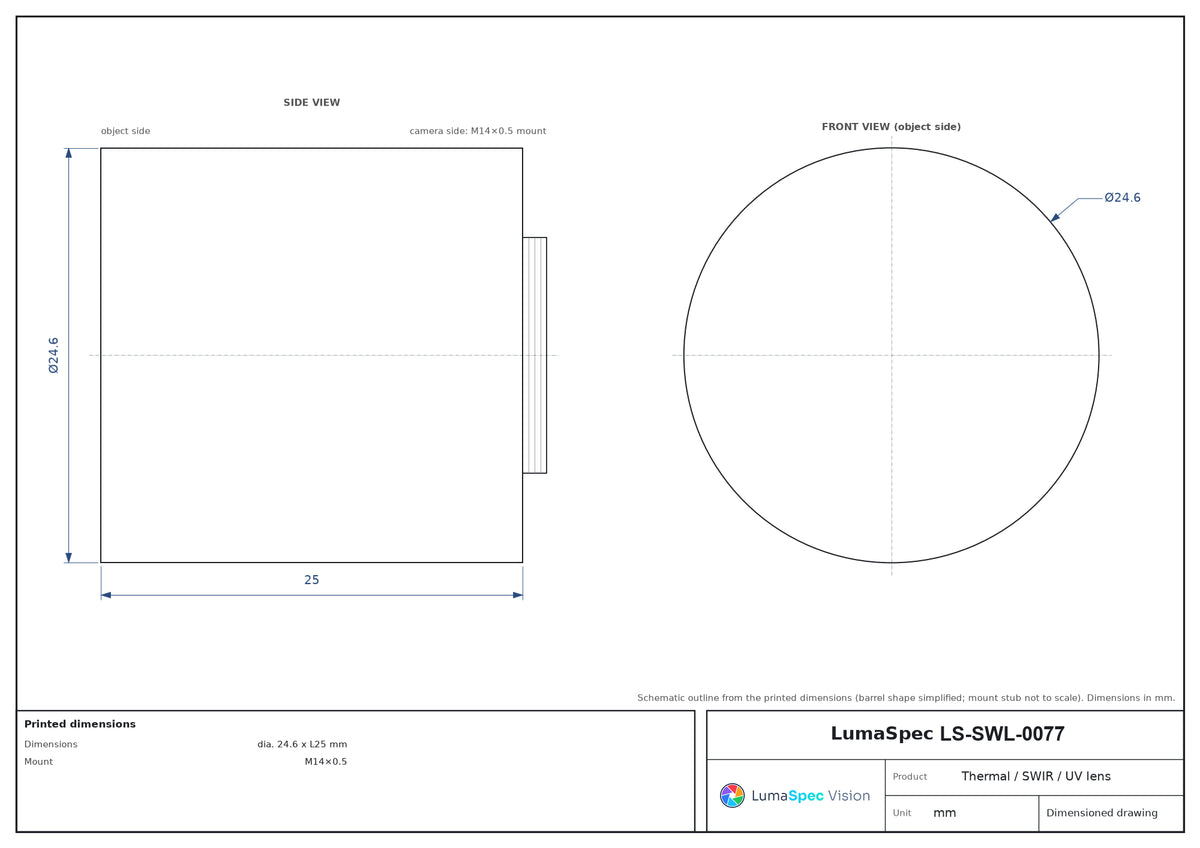

| Dimensions | dia. 24.6 x L25 mm |
| Weight | <30g |
| Shipping weight (estimated) | 0.14 kg |
Photo shows a representative model of this series; see the specifications for this model.
