Model drawing, series photo

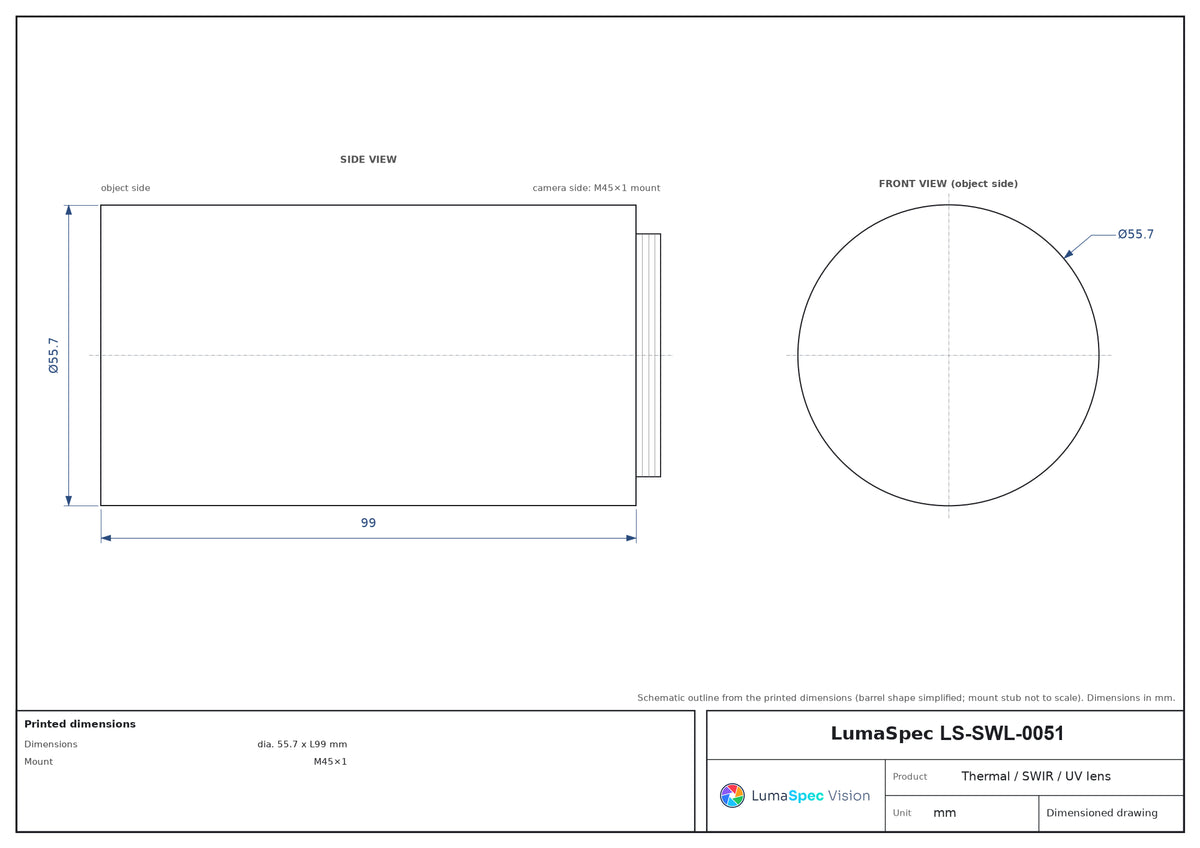

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows a representative lens of this range, not this exact model; size and shape differ by model.
Thermal, SWIR & UV lenses
14 mm, F1, M45x1-mount LWIR thermal lens (LS-SWL-0051)
Model LS-SWL-0051
- Focal length14 mm
- MountM45x1
- Sensor1.1"
- ApertureF1
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-swl-0051
LS-SWL-0051, the M45 x 1-mount version, brings a 14 mm lens to a lens series of 70 focal lengths; a narrower view than most of the series, for smaller detail or longer distances.
LS-SWL-0051: focal length 14 mm, sensor 1024 x 768 14 µm, aperture F1, focus range 20 mm~600 mm.
14 mm, F1, M45x1-mount LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-SWL-0051 |
|---|---|
| Angle of view (deg) | WD 20mm: 65.93°×53.05°×40° / WD 200mm: 71.52°×57.87°×43.71° / WD 600mm: 72.19°×58.38°×44.11° |
| Front lens coating | HD |
Optics
| Focal length | 14 mm |
|---|---|
| Aperture | F1 |
| Distortion | -10.8% |
| Relative illumination | 0.87 |
| Focus method | Manual focus |
| Focus range | 20 mm~600 mm |
| Mechanical back focal length | 7.75 mm |
| Image circle | dia. 17.9 mm, calculated from the 1024 x 768 detector at 14 micron pixel pitch |
Sensor and imaging
| Sensor | 1024×768 14μm |
|---|
Environment and compliance
| Operating temperature | -40 °C to +80 °C |
|---|
Mechanical
| Mount | M45×1 |
|---|---|
| Dimensions | dia. 55.7 x L99 mm |
| Weight | <350 g |
| Shipping weight (estimated) | 0.59 kg |
Photo shows a representative model of this series; see the specifications for this model.
Engineering data
Field of view with the LS-SWL-0051
Before you buy
Questions about the LS-SWL-0051
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What field of view does the LS-SWL-0051 give?
Printed: Angle of view (deg): WD 20mm: 65.93°×53.05°×40° / WD 200mm: 71.52°×57.87°×43.71° / WD 600mm: 72.19°×58.38°×44.11°.
What sensor size is the LS-SWL-0051 made for?
Image circle: dia. 17.9 mm, calculated from the 1024 x 768 detector at 14 micron pixel pitch.
How does the LS-SWL-0051 differ from LS-SWL-0067?
Compared with LS-SWL-0067: distortion -10.8% here, -2.15% there; focus range 20 mm~600 mm here, 0.1 m~0.3 m there.
Learn
Guides for this part
Engineering guides picked for the LS-SWL-0051: how to choose it, set it up and get a better image.
Other models in the LWIR Thermal lens (LS-SWL-S01) series
See all 194 modelsHow this model compares
- Focal length 14 mm; next down 13.5 mm (LS-SWL-0045), up 15 mm (LS-SWL-0133), of 67 focal lengths from 1.8 to 180 mm.
- Compared with LS-SWL-0067: distortion -10.8% here, -2.15% there; focus range 20 mm~600 mm here, 0.1 m~0.3 m there.
Swipe to see all columns
| Model | Focal length | Mount | Sensor | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-SWL-0061 | 7.8 mm | M30 x 0.5 | 2/3" | $259.00 | Ships in 2-3 weeks | View |
| LS-SWL-0005 | 14 mm | 1/1.2" | $339.00 | Ships in 2-3 weeks | View | |
| LS-SWL-0051This model | 14 mm | M45 x 1 | 1.1" | $339.00 | Ships in 2-3 weeks | |
| LS-SWL-0170 | 16 mm | M34 x 0.75 | 1.1" | $369.00 | Ships in 2-3 weeks | View |
| LS-SWL-0187 | 16 mm | M45 x 1 | 1.1" | $369.00 | Ships in 2-3 weeks | View |
| LS-SWL-0067 | 30 mm | M45 x 1 | 1.1" | $549.00 | Ships in 2-3 weeks | View |
| LS-SWL-0089 | 32 mm | M45 x 1 | 1.2" | $609.00 | Ships in 2-3 weeks | View |
| LS-SWL-0037 | 35 mm | M34 x 0.5 | 1/1.2" | $609.00 | Ships in 2-3 weeks | View |
| LS-SWL-0149 | 35 mm | M45 x 1 | 1/1.2" | $609.00 | Ships in 2-3 weeks | View |
