LS-SWL-0001 dimensions (mm)
  • LS-SWL-0001 dimensions (mm)
  • 14 mm LWIR thermal lens (LS-SWL-0001)
Model drawing, series photo

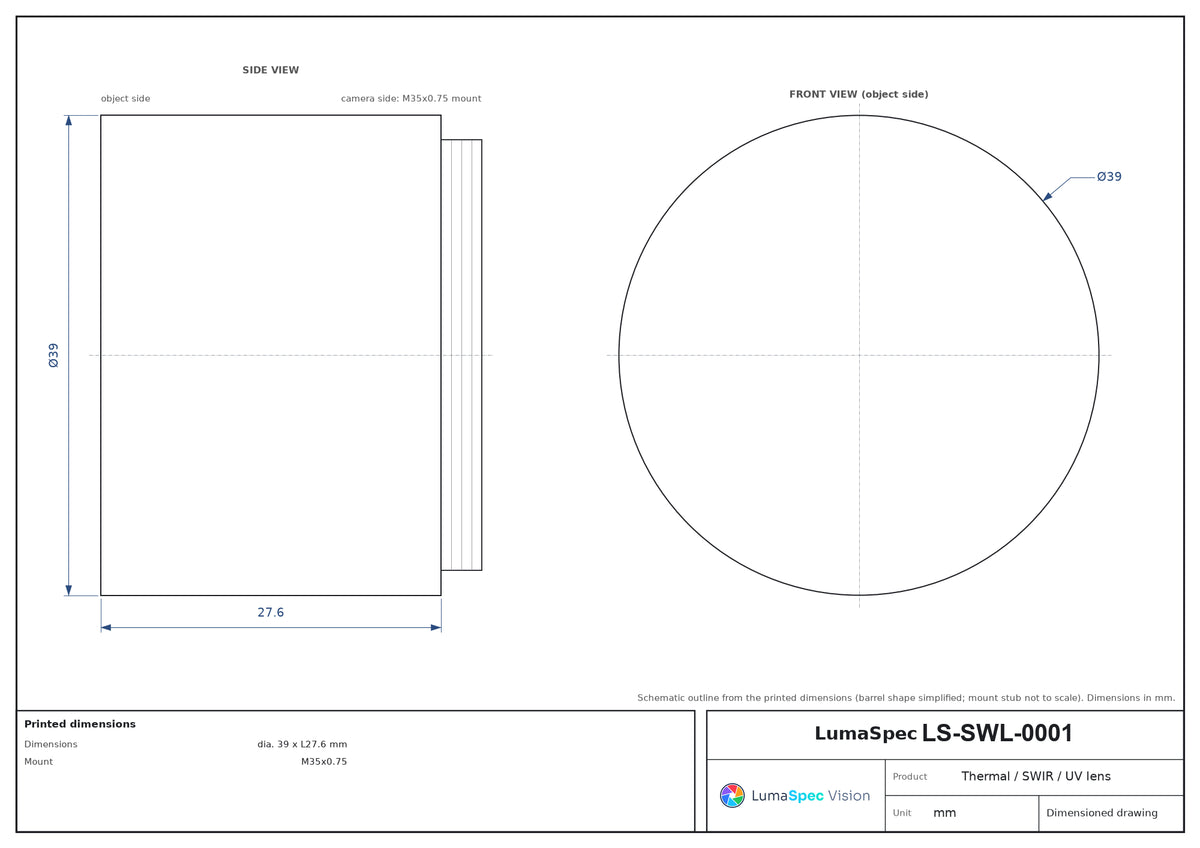

Main picture: this model's dimensioned drawing, from its printed dimensions. The photo shows a representative lens of this range, not this exact model; size and shape differ by model.

Thermal, SWIR & UV lenses

14 mm LWIR thermal lens (LS-SWL-0001)

Model LS-SWL-0001

  • Focal length14x eyepiece
  • MountM35x0.75
  • Sensor1/2"
  • TypeThermal (LWIR)
$339.00

Ships in 2-3 weeks

0.32 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-swl-0001

Request a quote

14 mm LWIR thermal lens (LS-SWL-0001)LS-SWL-0001

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-SWL-0001, the M35 x 0.75-mount version, sits in the upper half of the 70 focal lengths in its series, with a 14x eyepiece lens: a narrower view than most of the series, for smaller detail or longer distances.

LS-SWL-0001: focal length 14x eyepiece, sensor 8.127 mmx6.095 mm, dimensions dia. 39 x L27.6 mm, mount M35x0.75.

14 mm LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelLS-SWL-0001
SealingFront IP 67
Front lens coatingMulti-layer coating

Optics

Focal length14x eyepiece
Distortion2%
Focus methodFixed
Mechanical back focal length10.5 mm

Sensor and imaging

Sensor8.127mmx6.095mm

Mechanical

MountM35x0.75
Dimensionsdia. 39 x L27.6 mm
Weight<160 g
Shipping weight (estimated)0.32 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-SWL-0001

Focal length14 mm
Distortion2 %
Back focal length10.5 mmmechanical
SizeØ 39 × 27.6 mm
Weight< 160 g

Other models in the LWIR Thermal lens (LS-SWL-S01) series

See all 194 models

How this model compares

  • Compared with LS-SWL-0151: distortion 2% here, 3% there; mechanical back focal length 10.5 mm here, 3 mm there.
ModelFocal lengthMountSensorPriceAvailabilityLink
LS-SWL-01931.8 mmM17 x 0.51/5.6"$179.00 Ships in 2-3 weeks View
LS-SWL-00253.1 mmM17 x 0.51/5.6"$189.00 Quote Ships in 2-3 weeks View
LS-SWL-00122.45 mmM25 x 11/2"$189.00 Ships in 2-3 weeks View
LS-SWL-00876.3 mmM20 x 0.51/3.2"$239.00 Ships in 2-3 weeks View
LS-SWL-015112 mmM19 x 0.51/3"$319.00 Ships in 2-3 weeks View
LS-SWL-0001This model14x eyepieceM35 x 0.751/2"$339.00 Ships in 2-3 weeks
LS-SWL-015317x eyepieceM24 x 81/2"$389.00 Ships in 2-3 weeks View
LS-SWL-001050 mm (medium-wave / MWIR)M35 x 0.751/1.2"$779.00 Ships in 2-3 weeks View
LS-SWL-018875 mmFlange mount1/1.2"$1,069.00 Ships in 2-3 weeks View
