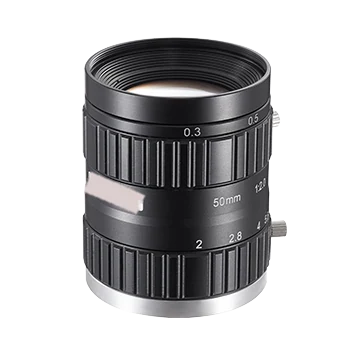

50mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA5020M-10MP)
  • 50mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA5020M-10MP)
  • LS-SA5020M-10MP dimensions (mm)

Machine vision lenses

50mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA5020M-10MP)

Model LS-SA5020M-10MP

  • Focal length50 mm
  • MountC-mount
  • Sensor4/3"
  • ApertureF2.0 to F22
$319.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.33 kg shipping weight

Volume pricing, Net 30 or a formal quote?

50mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, maximum image circle of 4/3"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SA5020M-10MP
Minimum object distance0.3 m
Close-up with extension tube20 mm tube, near focus: WD 102.60 mm, magnification -0.594; 20 mm tube, far focus: WD 147.16 mm, magnification -0.401; 10 mm tube, near focus: WD 145.32 mm, magnification -0.394; 10 mm tube, far focus: WD 271.70 mm, magnification -0.201; 5 mm tube, near focus: WD 188.49 mm, magnification -0.294; 5 mm tube, far focus: WD 519.83 mm, magnification -0.101; 2 mm tube, near focus: WD 232.10 mm, magnification -0.234; 2 mm tube, far focus: WD 1256.89 mm, magnification -0.041; 1 mm tube, near focus: WD 252.06 mm, magnification -0.214; 1 mm tube, far focus: WD 2461.34 mm, magnification -0.021

Optics

Focal length50 mm
F-numberF2.0 to F22
Image sizeØ23 mm (4/3")
Optical distortion–0.14%
Field of viewD (22.6 mm): 25.9°; H (18.13 mm): 20.9°; V (13.6 mm): 15.7°
Iris controlManual
Focus controlManual
Filter threadM40.5 × 0.5
Magnification at working distance (mm)300: -0.190; 350: -0.160; 400: -0.138; 450: -0.121; 500: -0.108; 550: -0.097; 600: -0.089; 650: -0.082; 700: -0.075; 750: -0.070; 800: -0.066; 850: -0.061; 900: -0.058; 950: -0.055; 1000: -0.052
Field of view H x V (mm) at working distance (mm), 4/3" sensor (18.13 x 13.6 mm)300: 95.63 x 71.69; 350: 113.79 x 85.30; 400: 131.95 x 98.95; 450: 150.12 x 112.53; 500: 168.29 x 126.15; 550: 186.45 x 139.76; 600: 204.59 x 153.36; 650: 222.74 x 166.97; 700: 240.90 x 180.58; 750: 259.04 x 194.18; 800: 277.22 x 207.81; 850: 295.38 x 221.43; 900: 313.56 x 235.05; 950: 331.70 x 248.66; 1000: 349.86 x 262.27
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)300: 74.54 x 54.54; 350: 88.69 x 64.89; 400: 103.05 x 75.25; 450: 117.01 x 85.61; 500: 131.17 x 95.96; 550: 145.33 x 106.32; 600: 159.46 x 116.67; 650: 173.61 x 127.02; 700: 187.76 x 137.37; 750: 201.91 x 147.72; 800: 216.08 x 158.09; 850: 230.24 x 168.45; 900: 244.40 x 178.82; 950: 258.55 x 189.17; 1000: 272.70 x 199.53
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)300: 44.52 x 37.24; 350: 52.97 x 44.31; 400: 61.42 x 51.38; 450: 69.88 x 58.46; 500: 78.33 x 65.53; 550: 86.79 x 72.60; 600: 95.23 x 79.67; 650: 103.68 x 86.74; 700: 112.13 x 93.81; 750: 120.58 x 100.88; 800: 129.05 x 107.96; 850: 137.50 x 115.04; 900: 145.96 x 122.11; 950: 154.42 x 129.18; 1000: 162.87 x 136.26

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ44.6 mm × 67.8 mm (Ø1.8" × 2.7")
Weight165 g (0.4 lb.)
Shipping weight (estimated)0.33 kg
