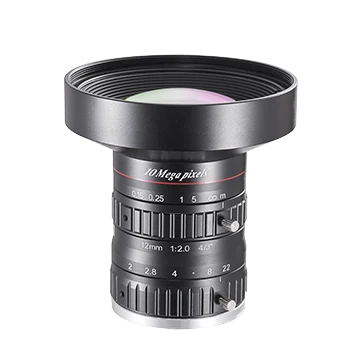

12mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA1220M-10MP)
Model LS-SA1220M-10MP
- Focal length12 mm
- MountC-mount
- Sensor4/3"
- ApertureF2.0 to F22
$269.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.72 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity. F2.0, maximum format of 4/3''.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SA1220M-10MP |
|---|---|
| Minimum object distance | 0.15 m |
| Close-up with extension tube | 2 mm tube, near focus: WD 24.95 mm, magnification -0.236; 2 mm tube, far focus: WD 45.70 mm, magnification -0.167; 1 mm tube, near focus: WD 52.80 mm, magnification -0.152; 1 mm tube, far focus: WD 117.54 mm, magnification -0.083 |
Optics
| Focal length | 12 mm |
|---|---|
| F-number | F2.0 to F22 |
| Image size | Ø23 mm (4/3") |
| Optical distortion | –2.40% |
| Field of view | D (22.6 mm): 89.0°; H (18.13 mm): 75.5°; V (13.6 mm): 61.1° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M77 × 0.75 |
| Magnification at working distance (mm) | 150: -0.067; 200: -0.053; 250: -0.043; 300: -0.037; 350: -0.032; 400: -0.028; 450: -0.025; 500: -0.023; 550: -0.021; 600: -0.019; 650: -0.018; 700: -0.017; 750: -0.015; 800: -0.015; 850: -0.014; 900: -0.013; 950: -0.012; 1000: -0.012 |
| Field of view H x V (mm) at working distance (mm), 4/3" sensor (18.13 x 13.6 mm) | 150: 283.19 x 209.06; 200: 361.19 x 267.20; 250: 439.16 x 325.33; 300: 517.09 x 383.43; 350: 595.02 x 441.53; 400: 672.95 x 499.65; 450: 750.84 x 557.72; 500: 828.76 x 615.82; 550: 906.67 x 673.91; 600: 984.58 x 732.01; 650: 1062.48 x 790.10; 700: 1140.39 x 848.19; 750: 1218.29 x 906.28; 800: 1296.19 x 964.37; 850: 1374.09 x 1022.46; 900: 1451.99 x 1080.55; 950: 1529.89 x 1138.64; 1000: 1607.79 x 1196.73 |
| Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm) | 150: 217.80 x 157.18; 200: 278.32 x 201.09; 250: 338.83 x 244.98; 300: 399.30 x 288.86; 350: 459.78 x 332.73; 400: 520.27 x 376.62; 450: 580.71 x 420.47; 500: 641.18 x 464.35; 550: 701.65 x 508.22; 600: 762.12 x 552.10; 650: 822.58 x 595.97; 700: 883.05 x 639.84; 750: 943.51 x 683.71; 800: 1003.98 x 727.58; 850: 1064.44 x 771.45; 900: 1124.90 x 815.32; 950: 1185.36 x 859.19; 1000: 1245.83 x 903.06 |
| Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm) | 150: 127.50 x 106.24; 200: 163.18 x 136.00; 250: 198.85 x 165.75; 300: 234.50 x 195.48; 350: 270.16 x 225.22; 400: 305.82 x 254.97; 450: 341.46 x 284.69; 500: 377.11 x 314.42; 550: 412.76 x 344.16; 600: 448.42 x 373.90; 650: 484.07 x 403.63; 700: 519.72 x 433.37; 750: 555.37 x 463.10; 800: 591.02 x 492.84; 850: 626.67 x 522.57; 900: 662.32 x 552.31; 950: 697.97 x 582.04; 1000: 733.62 x 611.78 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

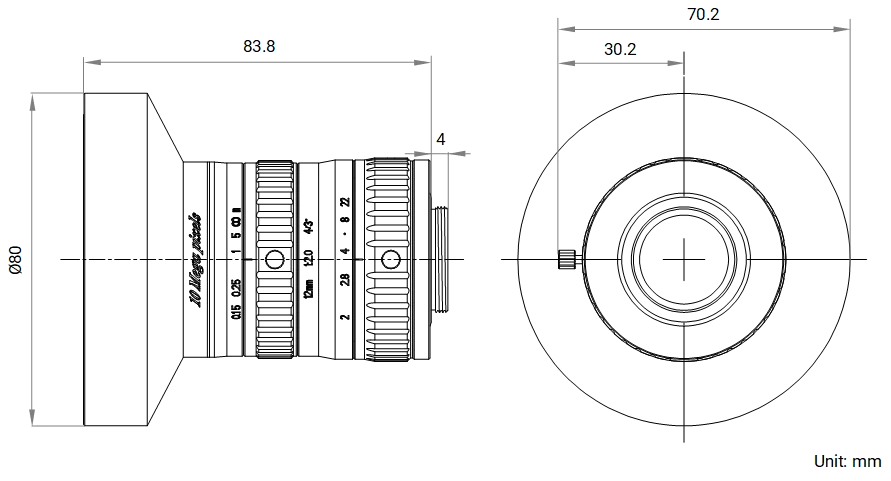

| Dimension | Ø80 mm × 83.8 mm (Ø3.1" × 3.3") |
| Weight | 445 g (1.0 lb.) |
| Shipping weight (estimated) | 0.72 kg |
