  • Ø206 mm low-angle ring light

Rendered illustration: the actual product may differ in appearance.

Ring lights

Ø206 mm low-angle ring light (LS-RNG-0680)

Model LS-RNG-0680-R

  • ColourRed, Blue, White, Green, Infrared, UV
  • Voltage24 VDC
  • TypeLow-angle
  • AngleLow angle (0-15°)
$265.00

Ships in 3-4 weeks

1.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ø206 mm low-angle ring light (LS-RNG-0680)LS-RNG-0680-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Low-angle ring light for even illumination around the lens. Size Ø206 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0680
Service lifeWhite:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Emission angle0°
Recommended WD0-10 mm
Pin assignment1: (+), 2: NC, 3: (-)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

WavelengthRed: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)6500-8500K

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation)

Electrical

Supply voltage24 VDC

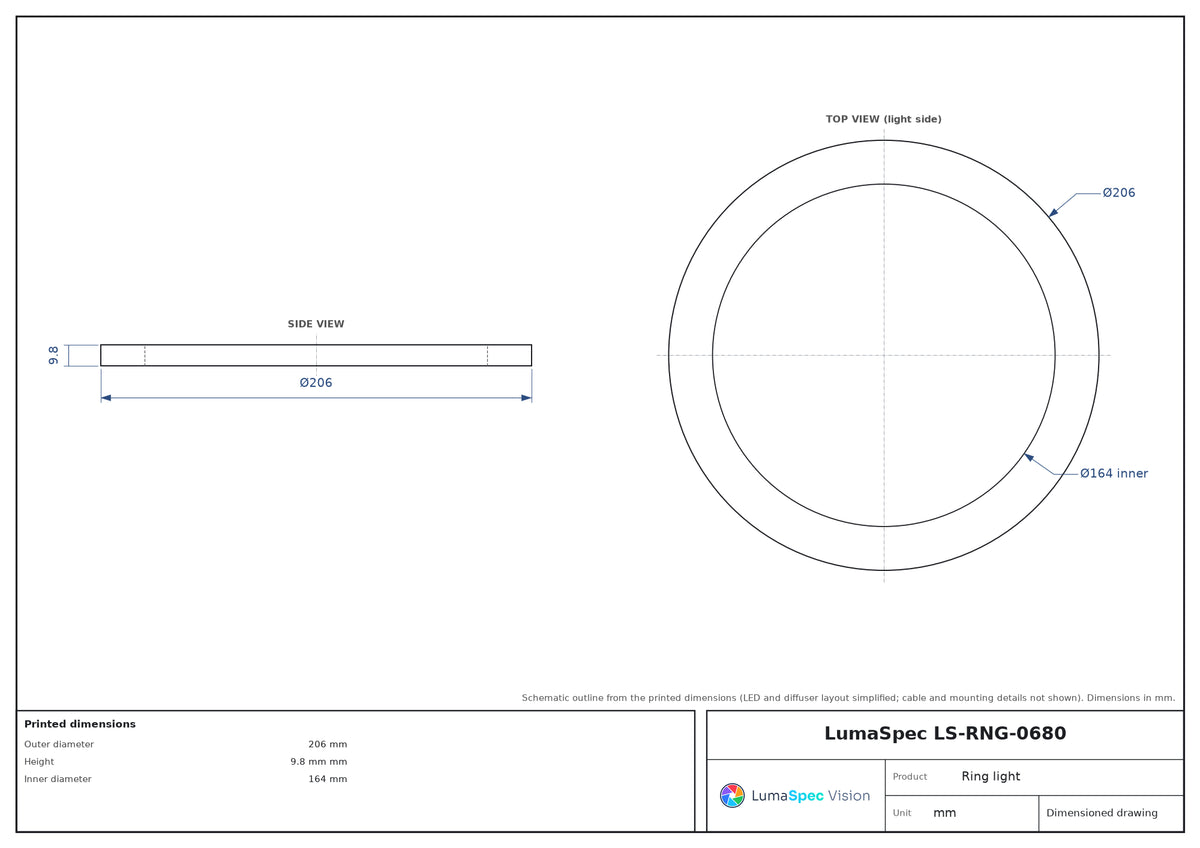

Mechanical

Outer diameter (mm)206
Inner diameter (mm)164
Housing materialAluminum alloy, Resin
Height (mm)9.8 mm
Shipping weight1.50 kg
