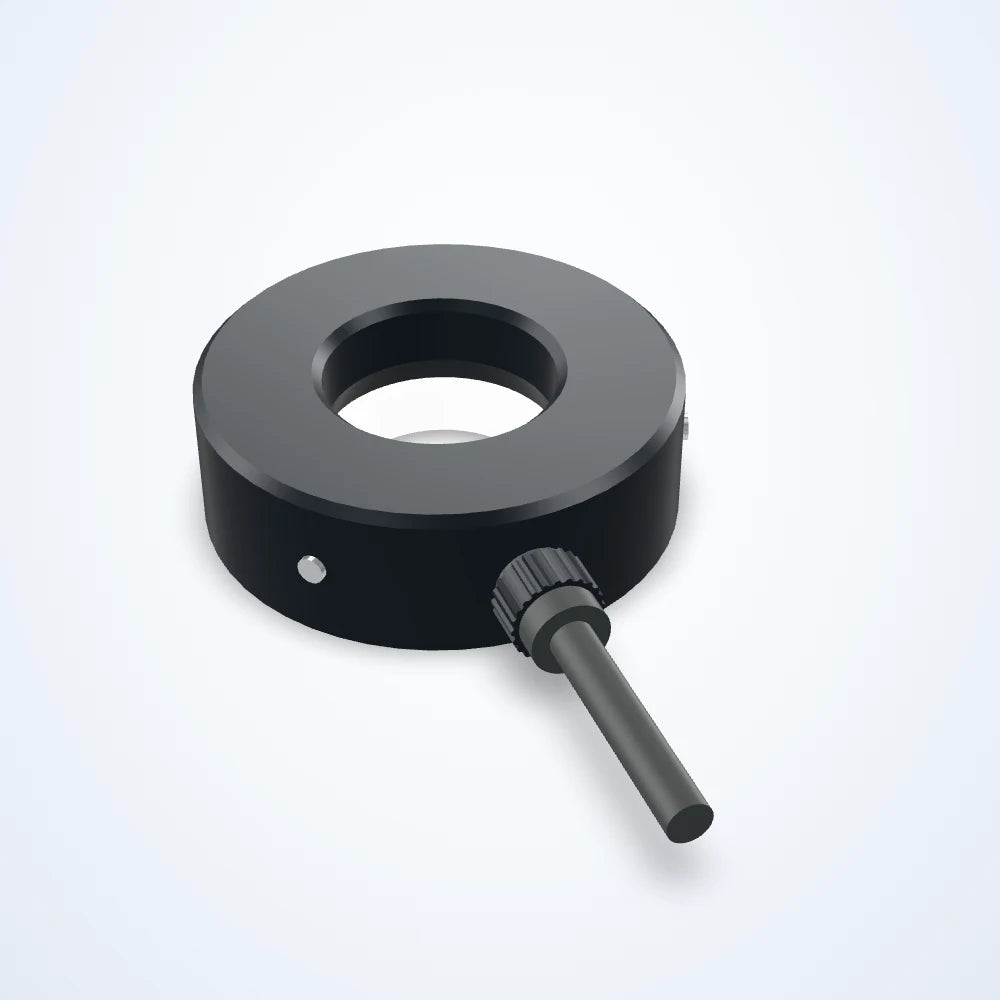

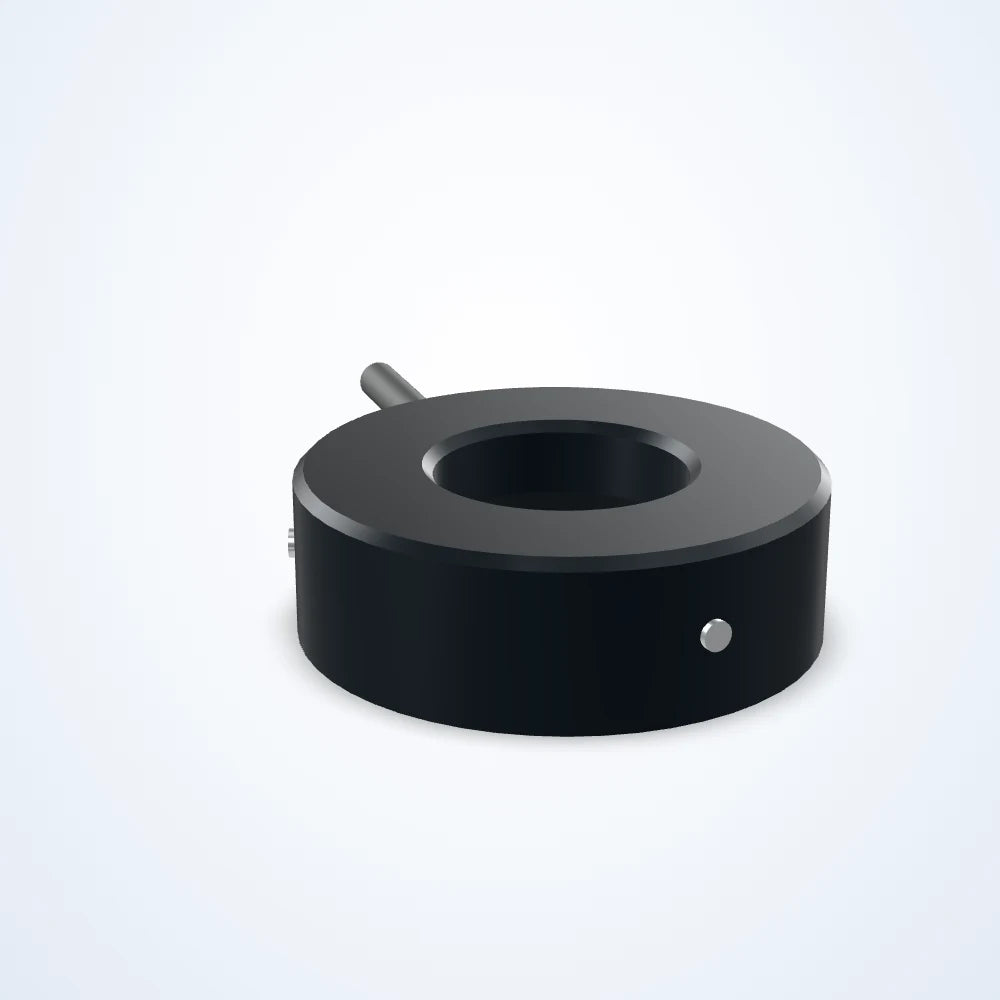

Ring light (series view)
  • Ring light (series view)
  • Ring light (series view)
  • Ø120 mm low-angle ring light

Rendered illustration: the actual product may differ in appearance.

Ring lights

Ø120 mm low-angle ring light (LS-RNG-0673)

Model LS-RNG-0673

  • ColourRed, Blue, White, Green, Infrared, UV
  • Voltage24 VDC
  • TypeLow-angle
  • AngleLow angle (0-15°)
$149.00

Ships in 3-4 weeks

1.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ø120 mm low-angle ring light (LS-RNG-0673)LS-RNG-0673

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Low-angle ring light for even illumination around the lens. Size Ø120 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0673
Service lifeWhite:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Emission angle0°
Recommended WD0-10 mm
Pin assignment1: (+), 2: NC, 3: (-)

Interfaces and I/O

ConnectorSMR-03 V-B
Cable length500 mm

Light

WavelengthRed: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)6500-8500K

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation)

Electrical

Supply voltage24 VDC

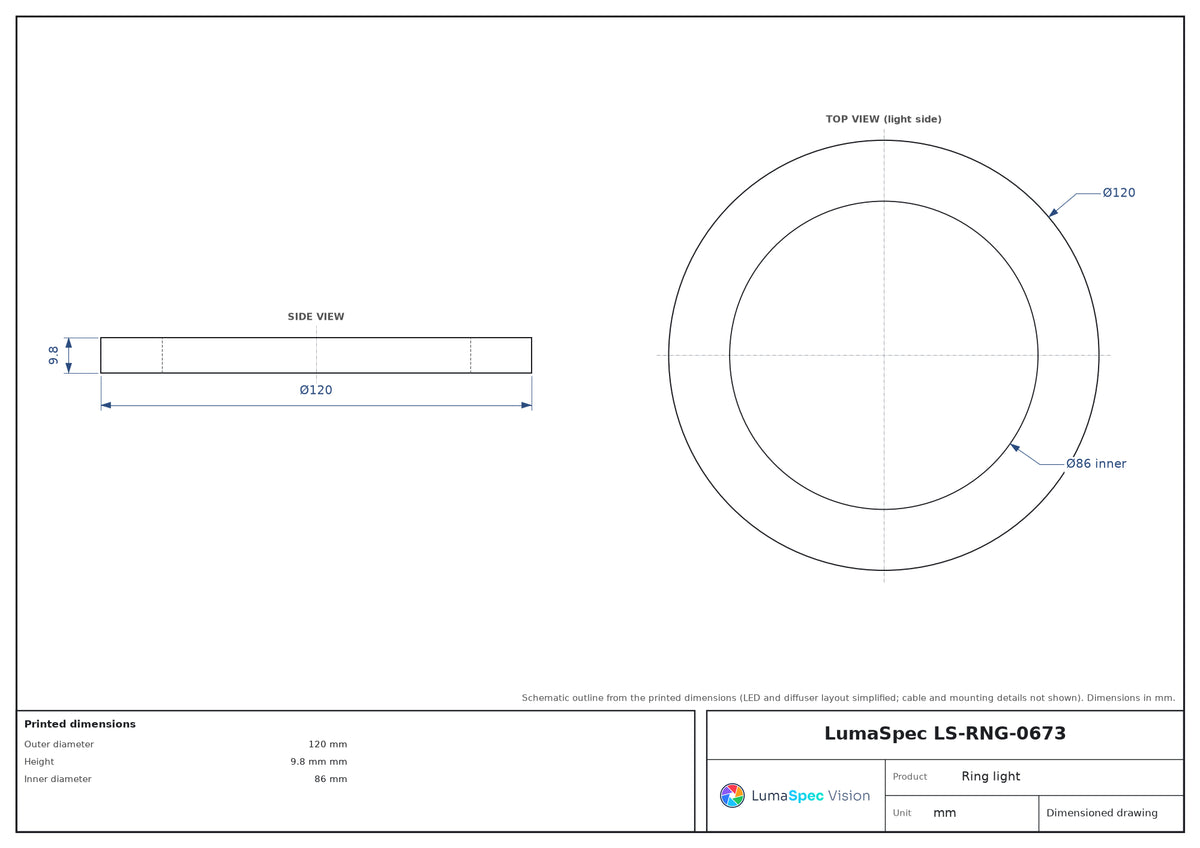

Mechanical

Outer diameter (mm)120
Inner diameter (mm)86
Housing materialAluminum alloy, Resin
Height (mm)9.8 mm
Shipping weight1.50 kg

Other models in the Low-angle ring lights (LS-RNG-S80) series

See all 16 models
ModelSize / key dataPriceAvailabilityLink
LS-RNG-0666 Ø50 mm from $112.00 Ships in 3-4 weeks View
LS-RNG-0667 Ø50 mm from $125.00 Ships in 3-4 weeks View
LS-RNG-0668 Ø66 mm from $125.00 Ships in 3-4 weeks View
LS-RNG-0670 Ø75 mm from $126.00 Ships in 3-4 weeks View
LS-RNG-0669 Ø74 mm from $130.00 Ships in 3-4 weeks View
LS-RNG-0671 Ø96 mm from $139.00 Ships in 3-4 weeks View
LS-RNG-0672 Ø100 mm from $170.00 Ships in 3-4 weeks View
LS-RNG-0676 Ø146 mm from $170.00 Ships in 3-4 weeks View
LS-RNG-0674 Ø120 mm from $190.00 Ships in 3-4 weeks View
LS-RNG-0678 Ø176 mm from $218.00 Ships in 3-4 weeks View
LS-RNG-0675 Ø132 mm from $235.00 Ships in 3-4 weeks View
LS-RNG-0680 Ø206 mm from $265.00 Ships in 3-4 weeks View
LS-RNG-0677 Ø150 mm from $340.00 Ships in 3-4 weeks View
LS-RNG-0679 Ø180 mm from $345.00 Ships in 3-4 weeks View
LS-RNG-0681 Ø208 mm from $385.00 Ships in 3-4 weeks View
