Ring lights

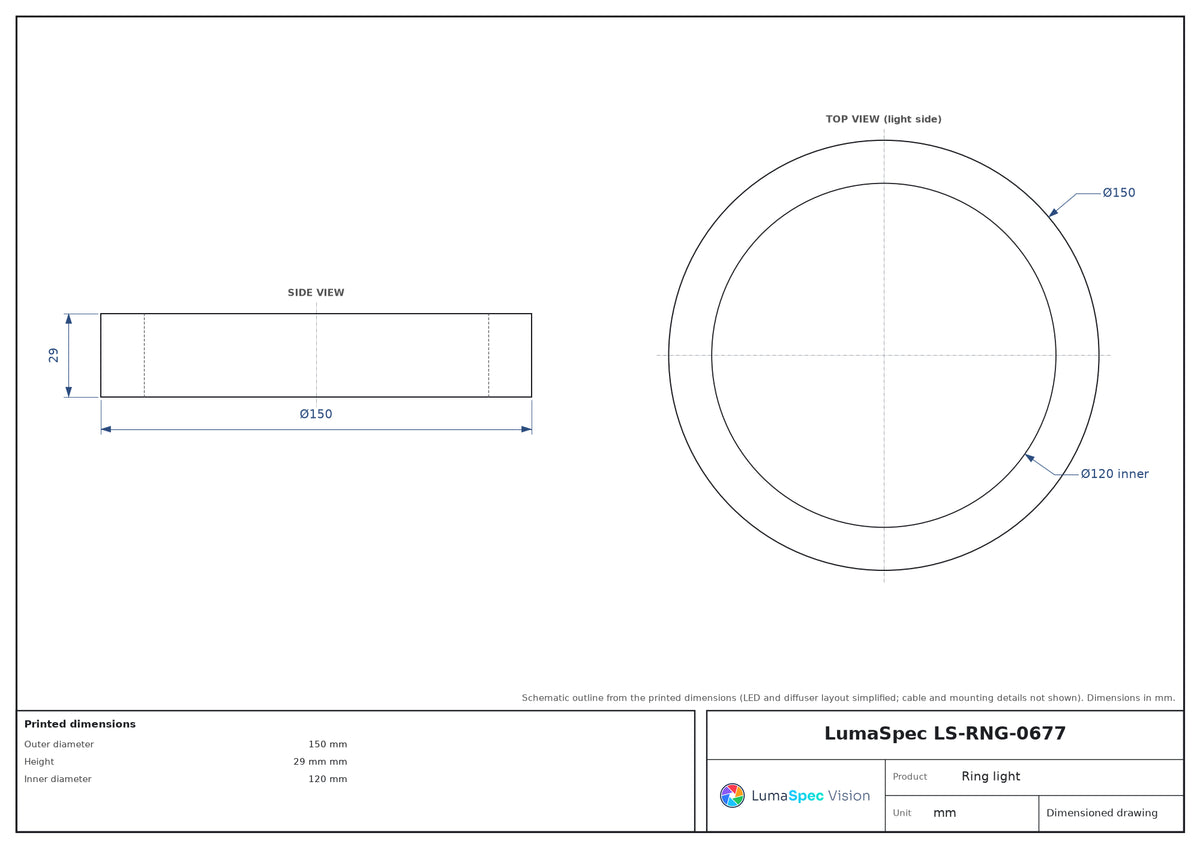

Ø150 mm low-angle ring light, 30° angle (LS-RNG-0677)

Model LS-RNG-0677

ColourRed, Blue, White, Green, Infrared, UV
Voltage24 VDC
Angle30°
TypeLow-angle

$340.00

Ships in 3-4 weeks

1.5 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Low-angle ring light for even illumination around the lens. Size Ø150 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0677
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Emission angle	30°
Recommended WD	24-34 mm
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Lighting angle	30°
Wavelength	Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)	6500-8500K

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Outer diameter (mm)	150
Inner diameter (mm)	120
Housing material	Aluminum alloy, Resin
Height (mm)	29 mm
Shipping weight	1.50 kg
