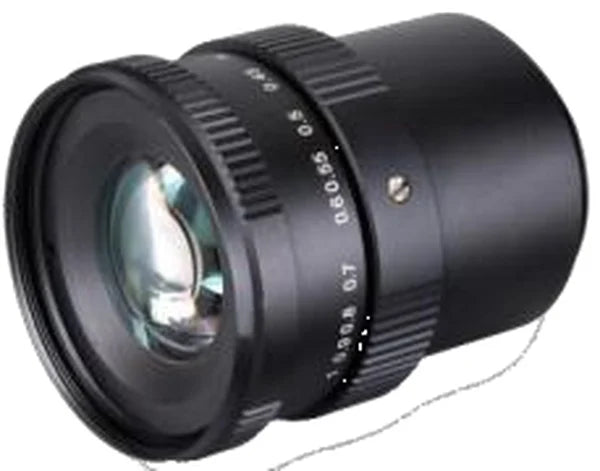

50 mm, 0.094x, M42-mount Line Scan Lens (LS-LSL-0210)
  • 50 mm, 0.094x, M42-mount Line Scan Lens (LS-LSL-0210)
  • LS-LSL-0210 dimensions (mm)

Line scan lenses

50 mm, 0.094x, M42-mount Line Scan Lens (LS-LSL-0210)

Model LS-LSL-0210

  • Focal length50 mm
  • Magnification0.094x
  • MountM42
  • SensorAPS-C
  • ApertureF2.8 Manual Iris
$1,549.00

Ships in 2-3 weeks

0.35 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 0.094x, M42-mount Line Scan Lens (LS-LSL-0210)LS-LSL-0210

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 0.094x, M42-mount Line Scan Lens. A 50 mm M42-mount high-definition lens for 5400-pixel / 5.25 um line cameras in colour sorting machines (grain, minerals, tea, stone), magnification 0.094x, optical distortion -0.61% (TV distortion -0.2%). At a glance: magnification 0.094x; focal length 50 mm; aperture F2.8 Manual Iris; mount M42 x 1; optical distortion -0.61%.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0210
Object distance640 mm
C.R.A.19.34 deg

Optics

Focal length50 mm
ApertureF2.8 Manual Iris
Relative illumination>95.5%
Magnification0.094x
Working distanceWD574 mm; Optimal 600~700 mm
Optical distortion-0.61%
Filter threadM52 x P0.75-7H
Image circledia. 30 mm
TV distortion-0.2%
M.F.L. (mechanical back focus)5.9 mm
Distortion0.15%

Sensor and imaging

Sensor size5400(H) x 3(V) / H28.35 x V0.016 x D28.35 mm
Pixel size5.25 x 5.25 μm

Mechanical

Sizedia. 42 x 36.21 mm
MountM42 x 1
Weight180 g
Shipping weight (estimated)0.35 kg
