50 mm, 0.5x, 65 MP, M58-mount Line Scan Lens (LS-SMZ-LS5001-65M)
  • 50 mm, 0.5x, 65 MP, M58-mount Line Scan Lens (LS-SMZ-LS5001-65M)

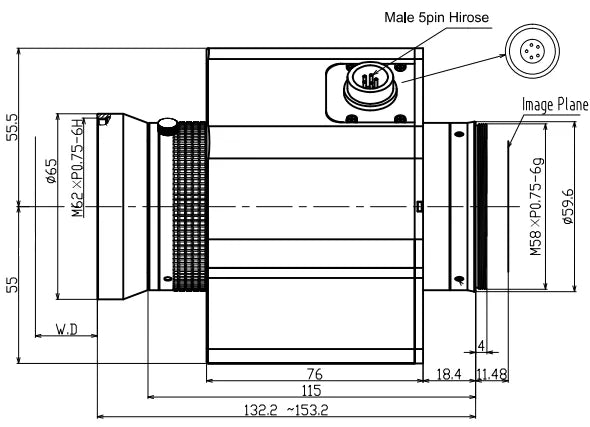

  • LS-LSL-0207 dimensions (mm)

Line scan lenses

50 mm, 0.5x, 65 MP, M58-mount Line Scan Lens (LS-LSL-0207)

Model LS-LSL-0207

  • Focal length50 mm ±5%
  • Magnification0.5x-0.02x
  • MountM58
  • SensorLarge format
  • ApertureF3.6-22
  • Resolution65 Megapixel
$1,559.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 0.5x, 65 MP, M58-mount Line Scan Lens (LS-LSL-0207)LS-LSL-0207

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 0.5x, 65 MP, M58-mount Line Scan Lens. A motorized auto-focus 50 mm line scan lens for 65 megapixel / 3.2 um sensors with a 46 mm image circle, 0.5x-0.02x magnification and <0.2% distortion, for LED display and screen inspection. At a glance: magnification 0.5x-0.02x; focal length 50 mm ±5%; resolution 65 Megapixel; aperture F3.6-22; mount M58 x P0.75.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSL-0207
Angle of view (D)43.4 deg
Motor speed0-250 RPM
Motor rated speed150 RPM
Motor response<1 ms
Motor stop torque0.16 N.m
Motor accuracy±0.01 deg
Motor directionCW, CCW

Optics

Focal length50 mm ±5%
Image circledia. 46 mm
ApertureF3.6-22
Magnification0.5x-0.02x
Working distance vs magnification0.02X: 2500 mm; 0.06X: 800 mm; 0.16X: 300 mm; 0.3X: 150 mm; 0.5X: 80 mm
Flange focal distance11.48 mm
TV distortion<0.2%

Sensor and imaging

Pixel size3.2 um
Resolution65 Megapixel

Interfaces and I/O

CommunicationRS232 / TTL (5-pin Hirose connector; DB9 + DC 5.5 x 2.1 cable)

Environment and compliance

Motor operating temp./humidity-40~105 °C, RH 0-90%

Electrical

Motor voltage24 V
Motor power1.68 W
Motor max output torque0.08 N.m

Mechanical

Entrance pupil diameterdia. 47.2 mm
Sizedia. 65 x 153.22 mm
MountM58 x P0.75
Front threadM62 x P0.75
Shipping weight (estimated)0.94 kg
