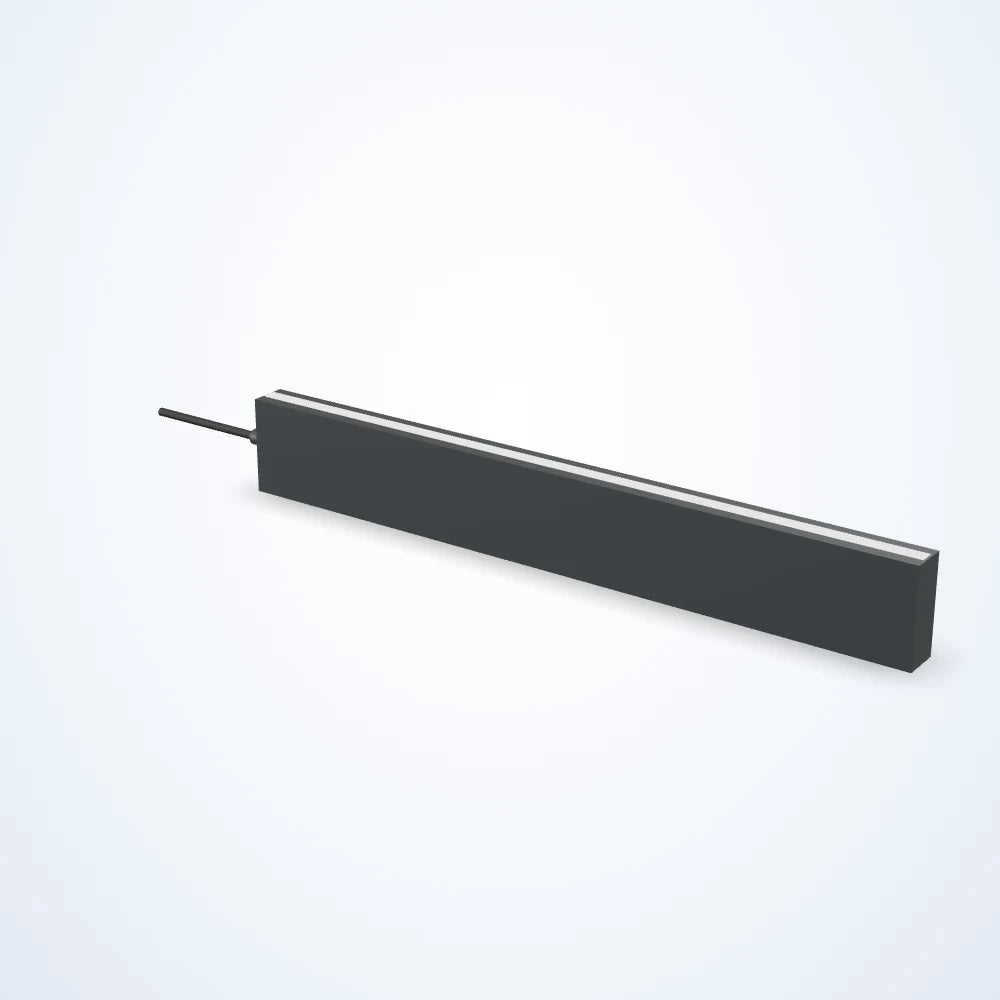

  • Line scan light, 441.1 mm lit length (LS-LSC-0017-L8) - view 2
  • Line scan light, 441.1 mm lit length (LS-LSC-0017-L8) - view 3

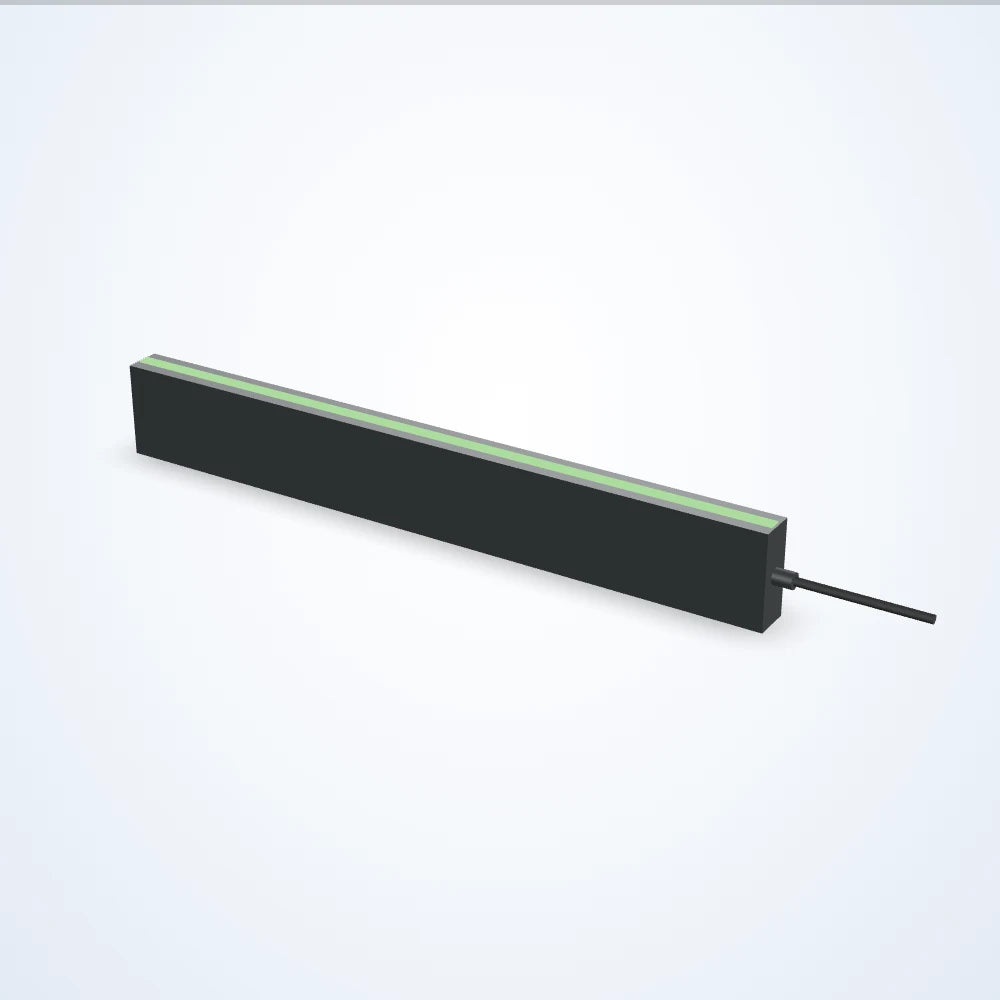

  • Line scan light, 441.1 mm lit length (LS-LSC-0017-L8) - view 4
  • Line scan light, 441.1 mm lit length (LS-LSC-0017-L8) - view 5

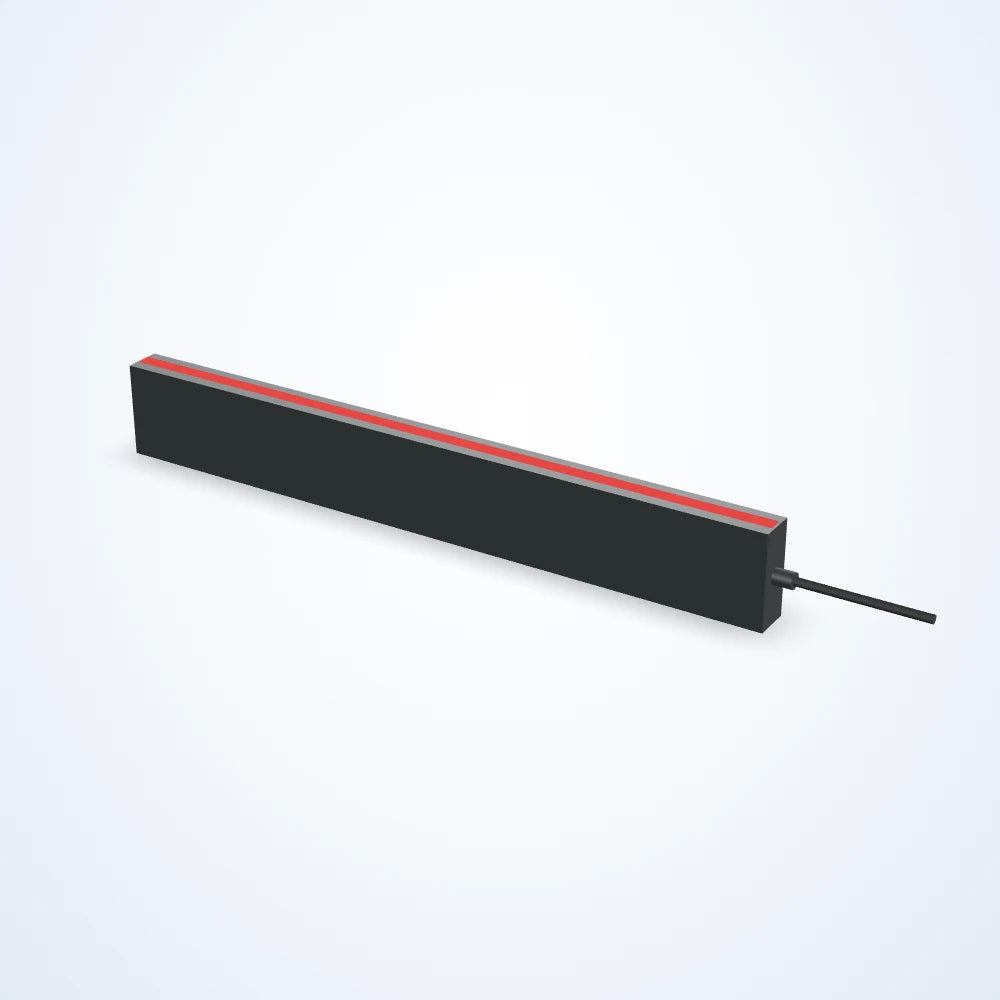

  • Line scan light, 441.1 mm lit length (LS-LSC-0017-L8) - view 6

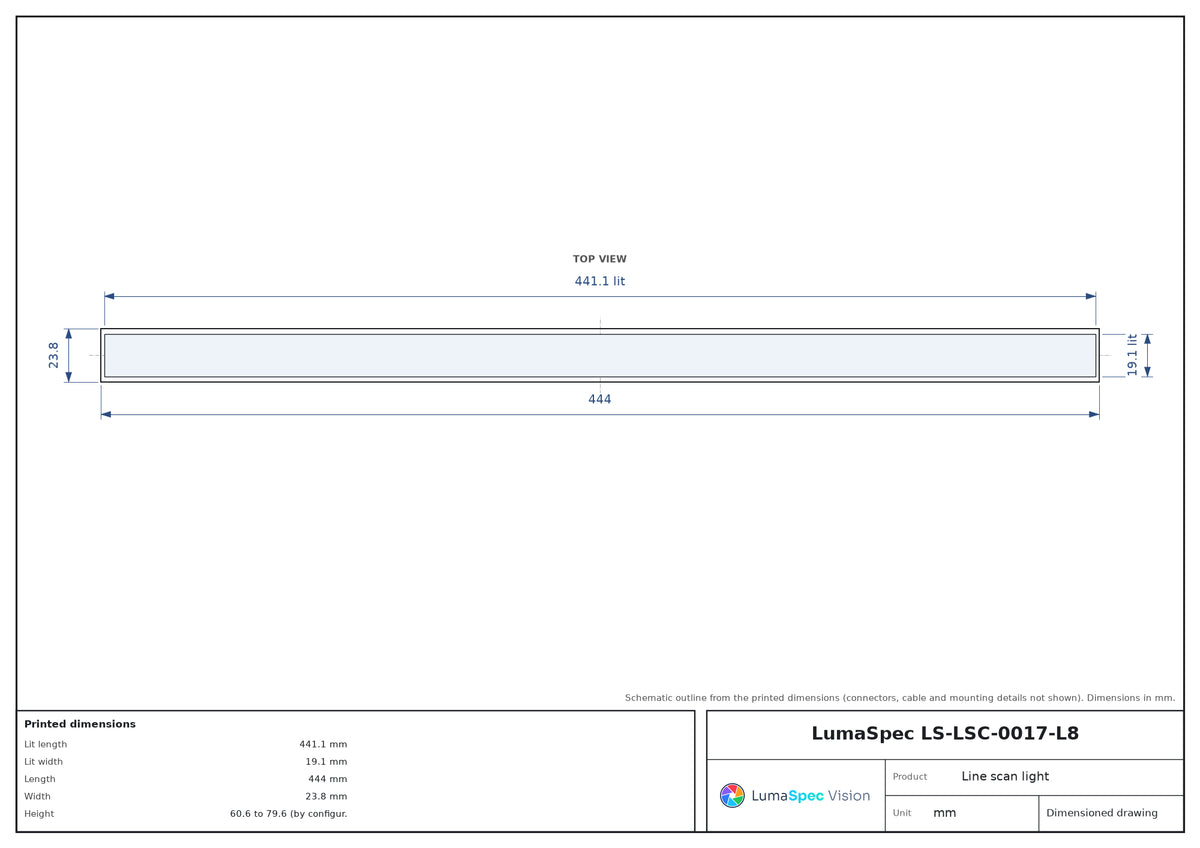

  • LS-LSC-0017-L8 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 441.1 mm lit length (LS-LSC-0017-L8)

Model LS-LSC-0017-L8

  • ColourWhite, Green, Red, UV, Blue
  • Voltage24 VDC
  • Wavelength395 nm
  • Lit length441.1 mm
from $1,529.00 USDList price

Sold by quote: request a quote and we confirm the price, lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 112 available

Colour
Lens / beam angle
Driver included
Driver location
Intensity control
Strobe trigger input
Collimated
Version

Configuration LS-LSC-0017-0197 $1,889.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Line scan light, 441.1 mm lit length (LS-LSC-0017-L8)LS-LSC-0017-L8

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 441.1 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (112 configurations) and request a quote.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEIEC 62471RoHS

Specifications

General

ModelLS-LSC-0017-L8
Connection at lightHardwired
Maximum duty cycle (%)100
Daisy chainNo
Direct connectNo
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature0 to 60 °C
IP ratingIP50
ComplianceCE, IEC 62471, RoHS
As declared by the manufacturer

Electrical

Voltage24 VDC
Maximum constant on current (mA)105 / 233 (by configuration)
Maximum input power constant on (W)2.5 / 5.6 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit length (mm)441.1
Lit width (mm)19.1
Length (mm)444
Width (mm)23.8
Height (mm)60.6 to 79.6 (by configuration)
HousingAluminum
MountingT-Slot Channel

Engineering data

Drive and fit the LS-LSC-0017-L8

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Emitting length441.1 mm
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm

Mounting and installation

MountingT-slot / nut channel
Cable2 mFlying leads
ProtectionIP50
HousingAluminum

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

About 16.8 W per channel at 24 V (from its rated output) for this 5.6 W light

About 24 W per channel at 24 V (from its rated output) for this 5.6 W light

15 W per channel at 24 V for this 5.6 W light

About 15 W per channel at 24 V (from its rated output) for this 5.6 W light

15 W per channel at 24 V for this 5.6 W light

About 31.2 W per channel at 24 V (from its rated output) for this 5.6 W light
