Bar Light, 100 x 40 mm, White (LS-BAR-1099)
  • Bar Light, 100 x 40 mm, White (LS-BAR-1099)
  • LS-BAR-1099 dimensions (mm)

Bar lights

Bar light, 108 x 40 mm, White (LS-BAR-1099)

Model LS-BAR-1099

  • ColourWhite
  • Emitting area96 mm × 31.6 mm
  • Size108 mm × 40 mm × 30 mm
  • Voltage24 VDC
  • Power10.6 W
$209.00

Ships in 2-3 weeks

0.42 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar light, 108 x 40 mm, White (LS-BAR-1099)LS-BAR-1099

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BAR-1099: dimension 108 mm x 40 mm x 30 mm, emitting area dimension 96 mm x 31.6 mm, LED rows 6, power 10.6 W.

Bar Light, 100 x 40 mm, White. The irradiation direction and angle can be adjusted freely. Support multi-side installation.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1099
Safety classNo danger
Cooling modeNatural cooling

Optics

Best working distance30 mm to 500 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 16000 lux @ 100 mm
Color temperatureW: 6000K to 7500K
Emitting area dimension96 mm × 31.6 mm
LED rows6
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power10.6 W
Input voltage24 VDC

Mechanical

Dimension108 mm × 40 mm × 30 mm
Weight0.23 kg
Shipping weight (estimated)0.42 kg

Engineering data

Drive and fit the LS-BAR-1099

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V442 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 10.6 W
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 16000 luxat 100 mm

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications
Cable1 m
ConnectorSMR-03V-B

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: supply voltage, drive type and the light's power against the controller's power per channel.

Build the full system with this part

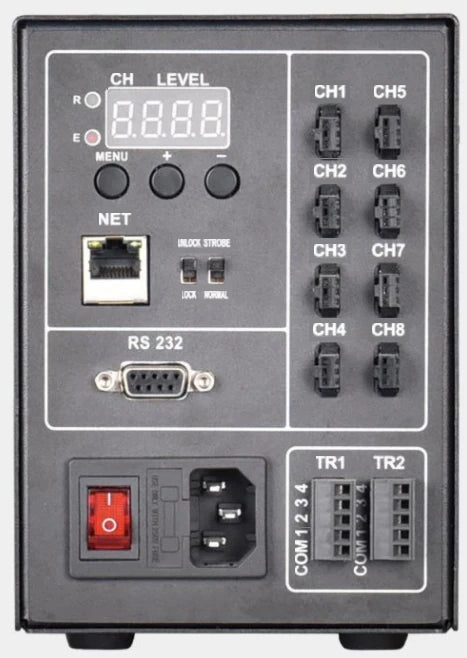

Controllers for this light

20 W per channel at 24 V for this 10.6 W light

About 15 W per channel at 24 V (from its rated output) for this 10.6 W light

About 24 W per channel at 24 V (from its rated output) for this 10.6 W light

15 W per channel at 24 V for this 10.6 W light

About 16.7 W per channel at 24 V (from its rated output) for this 10.6 W light

About 12.5 W per channel at 24 V (from its rated output) for this 10.6 W light

Light cables
