Bi-Telecentric Lens, 1.65x, 40 mm WD (LS-LBT-165-40-M58)

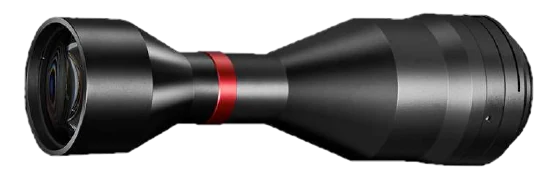

  • Bi-Telecentric Lens, 1.65x, 40 mm WD (LS-LBT-165-40-M58)

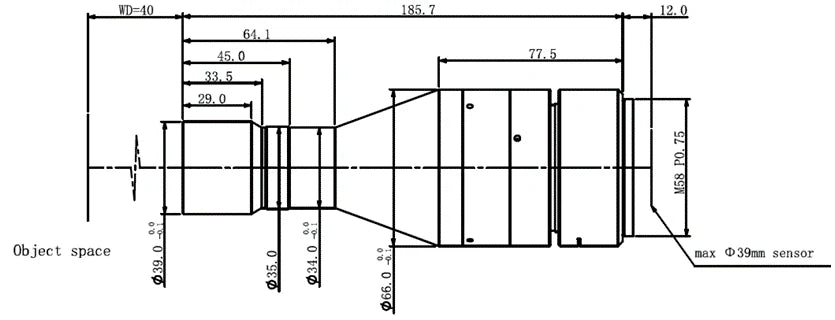

  • LS-LBT-165-40-M58 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 1.65x, 40 mm WD (LS-LBT-165-40-M58)

Model LS-LBT-165-40-M58

  • Magnification1.65
  • MountM58
  • SensorAPS-H
  • Working distance40mm
  • ApertureF6.2
$749.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Bi-Telecentric Lens, 1.65x, 40 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBT-165-40-M58

Optics

Magnification1.65
Working distance40mm
F-numberF6.2
Image sizeΦ39mm
Depth of field±0.2mm@F16
Distortion≤ 0.1%
Object-side resolution3.5um
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeM58-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension185.7 mm × Φ39 mm
Shipping weight (estimated)0.66 kg
