Bi-Telecentric Lens, 0.163x, 410 mm WD (LS-LBT-0163-410-F)

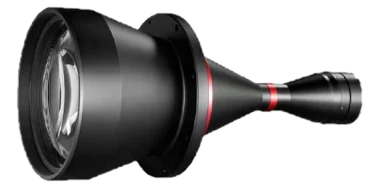

  • Bi-Telecentric Lens, 0.163x, 410 mm WD (LS-LBT-0163-410-F)

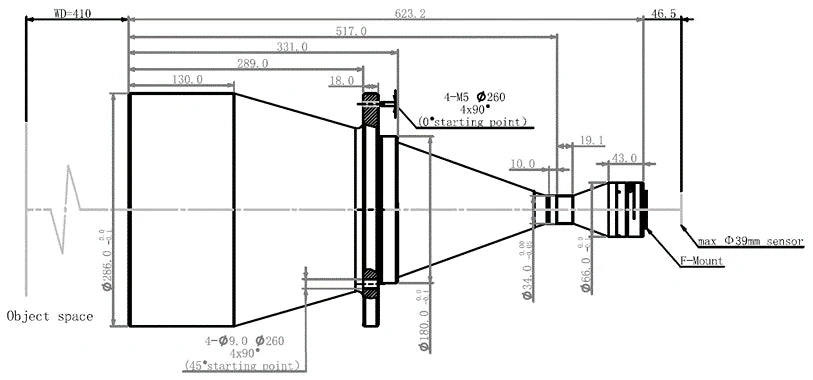

  • LS-LBT-0163-410-F dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.163x, 410 mm WD, size 623.2 mm × Φ286 mm (LS-LBT-0163-410-F)

Model LS-LBT-0163-410-F

  • Magnification0.163
  • MountF-mount
  • SensorAPS-H
  • Working distance410mm
  • ApertureF7.5
$4,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Bi-Telecentric Lens, 0.163x, 410 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBT-0163-410-F

Optics

Magnification0.163
Working distance410mm
F-numberF7.5
Image sizeΦ39mm
Depth of field±24.3mm@F16
Distortion≤ 0.1%
Object-side resolution23.6um
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeF-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension623.2 mm × Φ286 mm
Shipping weight (estimated)0.66 kg
