Bi-Telecentric Lens, 0.497x, 288 mm WD (LS-LBT-0497-288-M72-19.5)

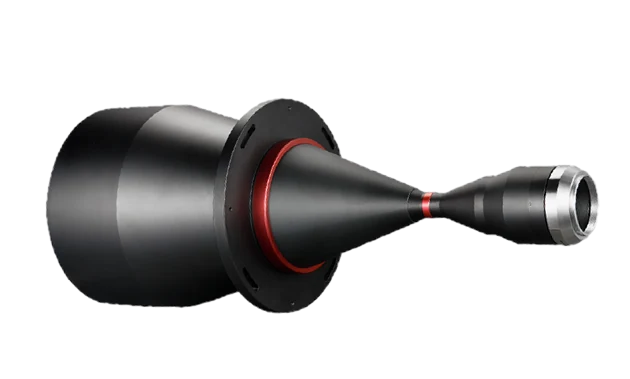

  • Bi-Telecentric Lens, 0.497x, 288 mm WD (LS-LBT-0497-288-M72-19.5)

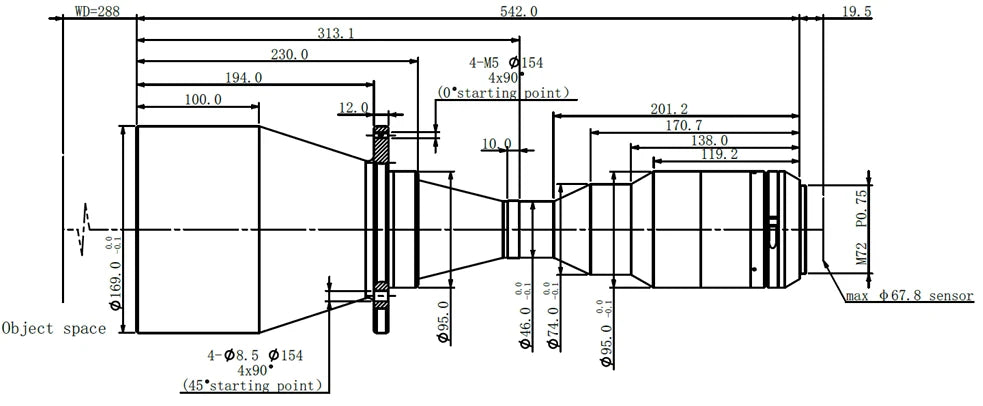

  • LS-LBT-0497-288-M72-19.5 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.497x, 288 mm WD (LS-LBT-0497-288-M72-19.5)

Model LS-LBT-0497-288-M72-19.5

  • Magnification0.497
  • MountM72
  • SensorLarge format
  • Working distance288mm
  • ApertureF12.2
$1,929.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Bi-Telecentric Lens, 0.497x, 288 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBT-0497-288-M72-19.5

Optics

Magnification0.497
Working distance288mm
F-numberF12.2
Image sizeΦ67.8mm
Depth of field±3.2mm@F12.2
Distortion≤ 0.1%
Object-side resolution14.4um
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported

Interfaces and I/O

Connector typeM72-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension542 mm × Φ169 mm
Shipping weight (estimated)0.66 kg

Other models in the L Series Bi-Telecentric lenses series

See all 16 models
ModelSize / key dataPriceAvailabilityLink
LS-LBT-165-40-M58 1.65x, 40 mm WD $749.00 4 in stock View
LS-LBT-1083-110-M58 1.083x, 110 mm WD $799.00 3 in stock View
LS-LBT-2-102-G-M58 2x, 102 mm WD $929.00 5 in stock View
LS-LBT-0489-208-M72-10.1 0.489x, 208 mm WD $1,279.00 3 in stock View
LS-LBT-0929-118-M72-19.5 0.929x, 118 mm WD $1,279.00 3 in stock View
LS-LBT-0929-118-M58 0.929x, 118 mm WD $1,279.00 3 in stock View
LS-LBT-1-102-M72 1x, 102 mm WD $1,309.00 5 in stock View
LS-LBT-0696-138-M58 0.696x, 138 mm WD $1,379.00 4 in stock View
LS-LBT-1-162-M72-19.5 1x, 162 mm WD $1,649.00 2 in stock View
LS-LBT-1-162-G-M72 1x, 162 mm WD $1,649.00 5 in stock View
LS-LBT-0738-228-M58 0.738x, 228 mm WD $1,929.00 4 in stock View
LS-LBT-039-238-F 0.39x, 238 mm WD $2,439.00 Quote Ships in 2-3 weeks View
LS-LBT-0205-330-F 0.205x, 330 mm WD $3,819.00 Quote Ships in 2-3 weeks View
LS-LBT-0163-410-F 0.163x, 410 mm WD $4,669.00 Quote Ships in 2-3 weeks View
LS-LBT-0163-410-M58 0.163x, 410 mm WD $4,669.00 Quote Ships in 2-3 weeks View
