Flat Backlight, 400 x 300 mm, White (LS-BKL-1499)
  • Flat Backlight, 400 x 300 mm, White (LS-BKL-1499)
  • LS-BKL-1499 dimensions (mm)

Backlights

Flat Backlight, 400 x 300 mm, White, 124.9 W (LS-BKL-1499)

Model LS-BKL-1499

  • ColourWhite
  • Emitting area400 mm × 300 mm
  • Size438 mm × 315 mm × 21 mm
  • Voltage24 VDC
  • Power124.9 W
$1,219.00

Ships in 2-3 weeks

4.3 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight, 400 x 300 mm, White, 124.9 W (LS-BKL-1499)LS-BKL-1499

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1499: emitting area dimension 400 mm x 300 mm, dimension 438 mm x 315 mm x 21 mm, power 124.9 W, color White.

Flat Backlight, 400 x 300 mm, White. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1499
Cooling modeNatural cooling

Interfaces and I/O

Connector type12M-2A
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 65000 lux @ 100 mm
Color temperature6000 ~ 7000K
Emitting area dimension400 mm × 300 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power124.9 W
Input voltage24 VDC

Mechanical

Dimension438 mm × 315 mm × 21 mm
Weight3 kg
Shipping weight (estimated)4.30 kg

Engineering data

Drive and fit the LS-BKL-1499

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V5204 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 124.9 W
Emitting area400 × 300 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 65000 luxat 100 mm

Mounting and installation

Cable1 m12M-2A connector

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

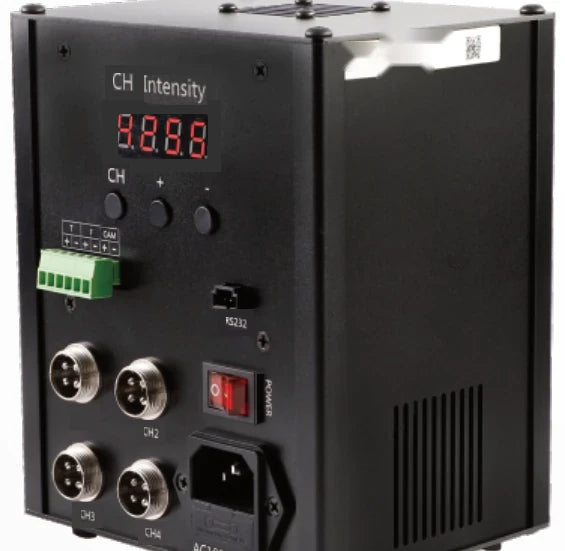

Controllers for this light

240 W per channel at 24 V for this 124.9 W light

200 W per channel at 24 V for this 124.9 W light

200 W per channel at 24 V for this 124.9 W light

Same 24 V supply

Same 24 V supply

Same 24 V supply
