Flat Backlight, 350 x 250 mm, White (LS-BKL-1493)
  • Flat Backlight, 350 x 250 mm, White (LS-BKL-1493)

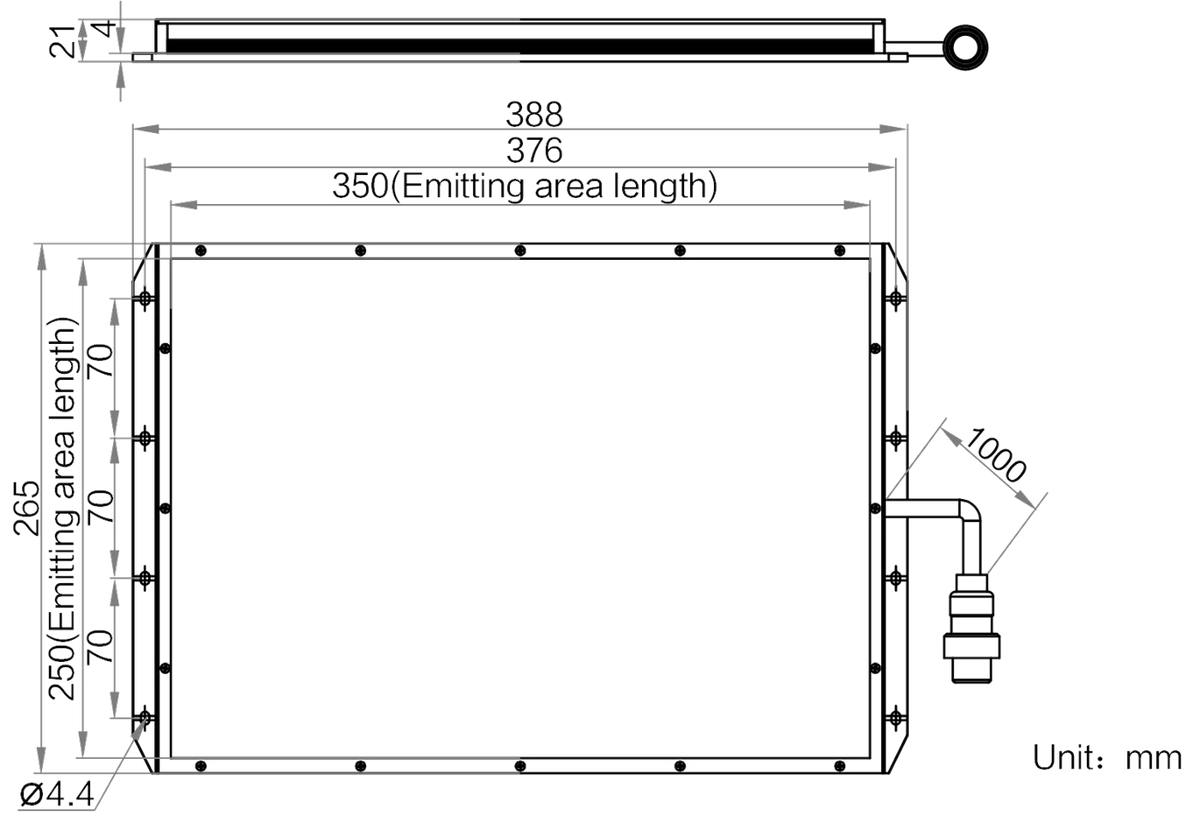

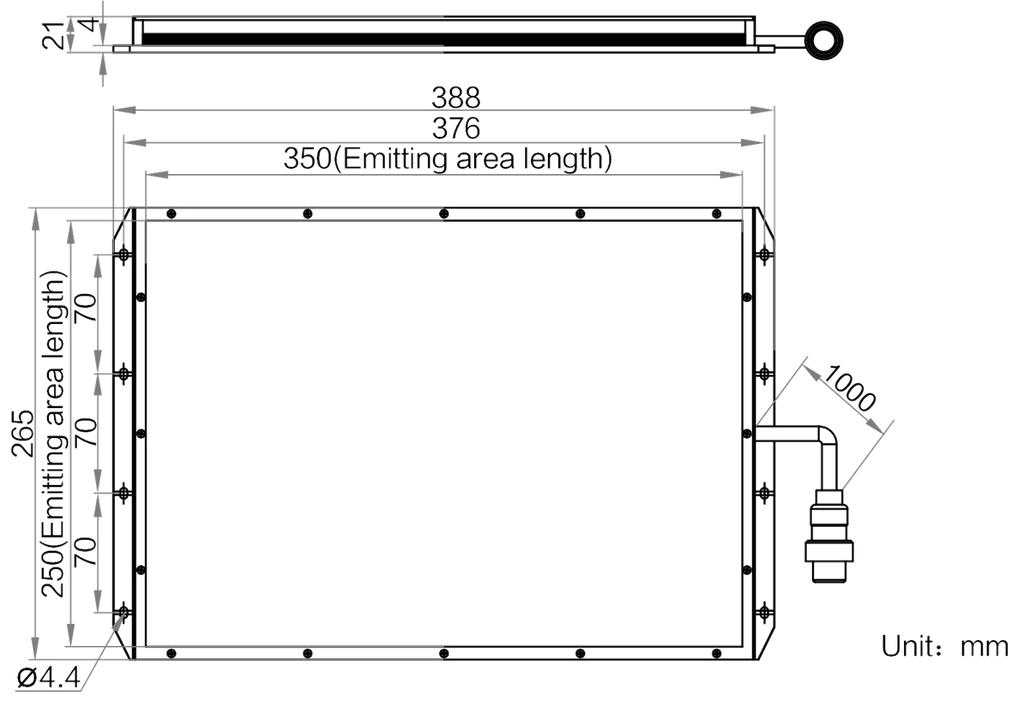

  • LS-BKL-1493 dimensions (mm)

Backlights

Flat Backlight, 350 x 250 mm, White (LS-BKL-1493)

Model LS-BKL-1493

  • ColourWhite
  • Emitting area350 mm × 250 mm
  • Size388 mm × 265 mm × 21 mm
  • Voltage24 VDC
  • Power89.6 W
$949.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

2.9 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Flat Backlight, 350 x 250 mm, White (LS-BKL-1493)LS-BKL-1493

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Flat Backlight, 350 x 250 mm, White. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1493
Cooling modeNatural cooling

Interfaces and I/O

Connector type12M-2A
Cable length1 m

Light

ColorWhite
Color temperature6000 ~ 7000K
Center illuminance/irradiance≥ 60000 lux@100 mm
Emitting area dimension350 mm × 250 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power89.6 W
Input voltage24 VDC

Mechanical

Dimension388 mm × 265 mm × 21 mm
Weight2 kg
Shipping weight (estimated)2.90 kg
