Flat Backlight with Center Hole, 620 x 620 mm, Blue (LS-BKL-1413)

Model LS-BKL-1413

  • ColourBlue
  • Emitting area620 mm × 620 mm
  • Size696 mm × 650 mm × 25 mm
  • Voltage24 VDC
  • Power233.9 W
  • Wavelength470 nm
$2,339.00

Ships in 2-3 weeks

14.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Flat Backlight with Center Hole, 620 x 620 mm, Blue (LS-BKL-1413)LS-BKL-1413

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1413: emitting area dimension 620 mm x 620 mm, dimension 696 mm x 650 mm x 25 mm, bore dimension Ø 50 mm, power 233.9 W.

Flat Backlight with Center Hole, 620 x 620 mm, Blue. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1413

Interfaces and I/O

Connector typeDual-channel 19M-2A
Cable length1 m

Light

ColorBlue
Center illuminance/irradiance≥ 3500 lux @ 600 mm
Wavelength470 nm
Emitting area dimension620 mm × 620 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power233.9 W
Input voltage24 VDC

Mechanical

Dimension696 mm × 650 mm × 25 mm
Bore dimensionØ 50 mm
Weight10 kg
Shipping weight (estimated)14.10 kg

Engineering data

Drive and fit the LS-BKL-1413

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V9746 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 233.9 W
Emitting area620 × 620 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 3500 luxat 600 mm

Mounting and installation

Cable1 mDual-channel 19M-2A connector

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

240 W per channel at 24 V for this 233.9 W light

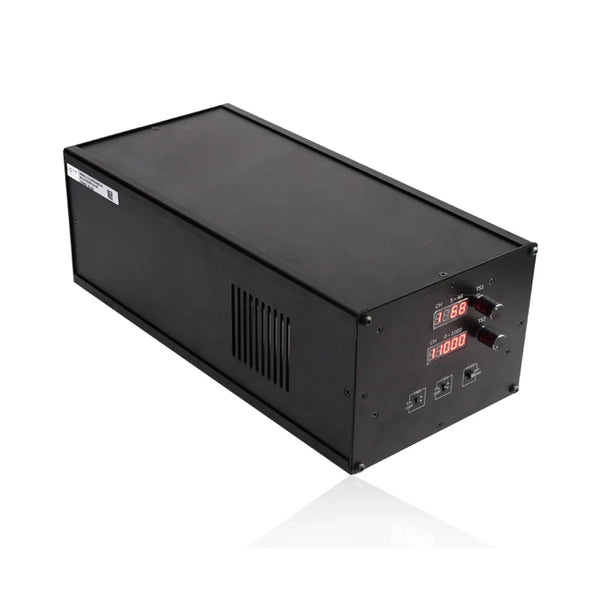

250 W per channel at 24 V for this 233.9 W light

250 W per channel at 24 V for this 233.9 W light

Same 24 V supply

Same 24 V supply

Same 24 V supply
