Backlights

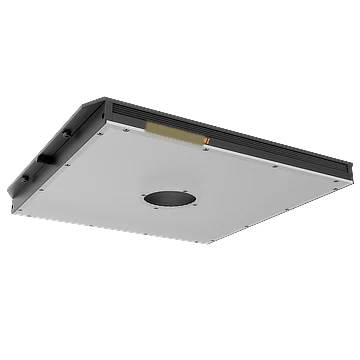

Flat Backlight with Center Hole, 450 x 320 mm, White (LS-LBES-H-450-320-W2)
Model LS-LBES-H-450-320-W2
- ColourWhite
- Emitting area450 mm × 320 mm
- Size488 mm × 335 mm × 21 mm
- Voltage24 VDC
- Power218.3 W
$589.00
In stock - ships the same business day (4 available, order by 2 PM ET)
4.58 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Flat Backlight with Center Hole, 450 x 320 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LBES-H-450-320-W2 |
|---|
Interfaces and I/O
| Connector type | Dual-channel 19M-2A |
|---|---|
| Cable length | 1 m |
Light
| Color | White |
|---|---|
| Center illuminance/irradiance | ≥ 16000 lux@600 mm |
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 450 mm × 320 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 218.3 W |
|---|---|
| Input voltage | 24 VDC |
Mechanical

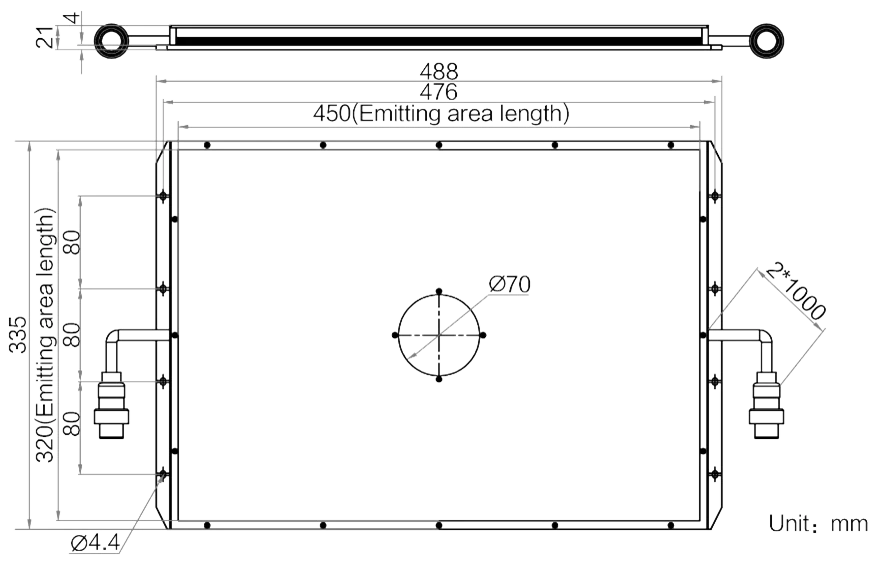

| Dimension | 488 mm × 335 mm × 21 mm |
|---|---|
| Bore dimension | Ø 70 mm |
| Weight | 3.2 kg |
| Shipping weight (estimated) | 4.58 kg |
