Telecentric lenses

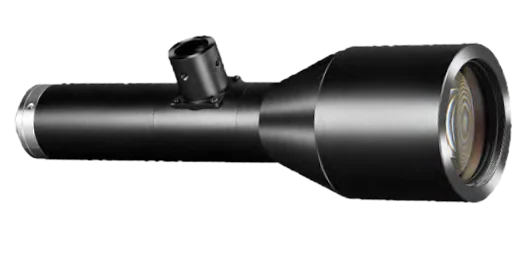

Object-Side Telecentric Lens, 0.367x, 220 mm WD, 1.1", coaxial light port (LS-KT-0367-220C)
Model LS-KT-0367-220C
- Magnification0.367
- MountC-mount
- Sensor1.1"
- Working distance220 mm
- ApertureF8
$1,299.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 0.367x, 220 mm WD, 1.1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-KT-0367-220C |
|---|
Optics
| Magnification | 0.367 |
|---|---|
| Working distance | 220 mm |
| Image size | 1.1" |
| F-number | F8 |
| Depth of field | ±2.4 mm @F8 |
| Distortion | ≤ 0.06% |
| Object-side resolution | 11.9 μm |
| Object-side telecentricity | ≤ 0.06° |
| Coaxial light | Supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

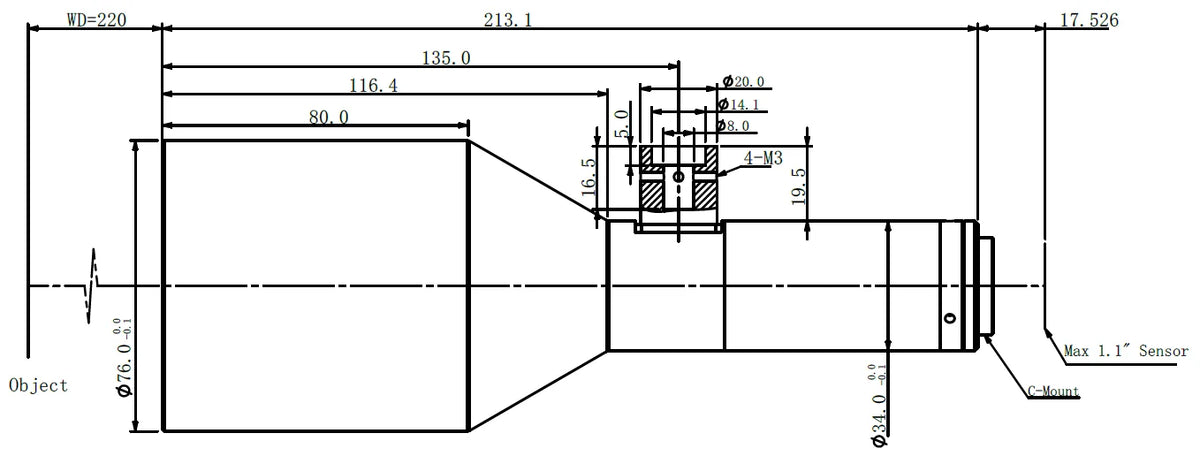

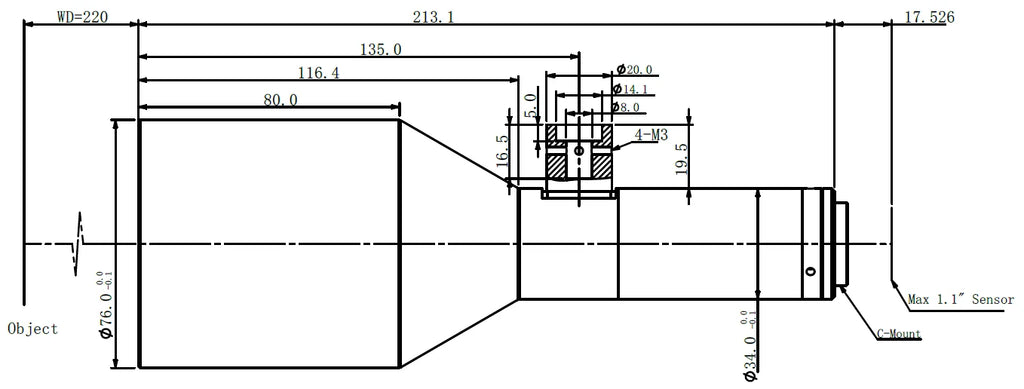

| Dimension | 213.1 mm × Φ76 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
