Telecentric lenses

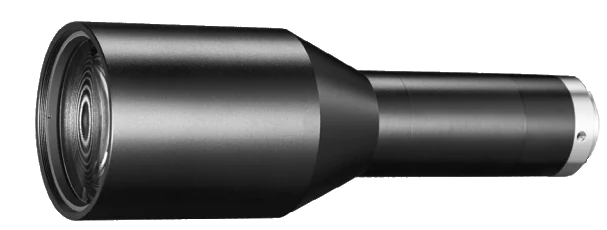

Object-Side Telecentric Lens, 0.46x, 220 mm WD, 1" (LS-TCL-0646)
Model LS-TCL-0646
- Magnification0.46
- MountC-mount
- Sensor1"
- Working distance220 mm
- ApertureF11.6
$1,149.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 0.46x, 220 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0646 |
|---|
Optics
| Magnification | 0.46 |
|---|---|
| Working distance | 220 mm |
| Image size | 1" |
| F-number | F11.6 |
| Depth of field | ±2.2 mm @F11.6 |
| Distortion | ≤ 0.25% |
| Object-side resolution | 13.6 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

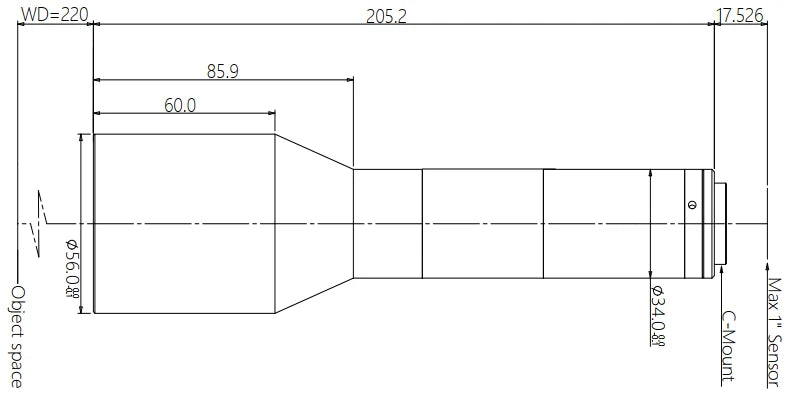

| Dimension | 205.2 mm × Φ56 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
