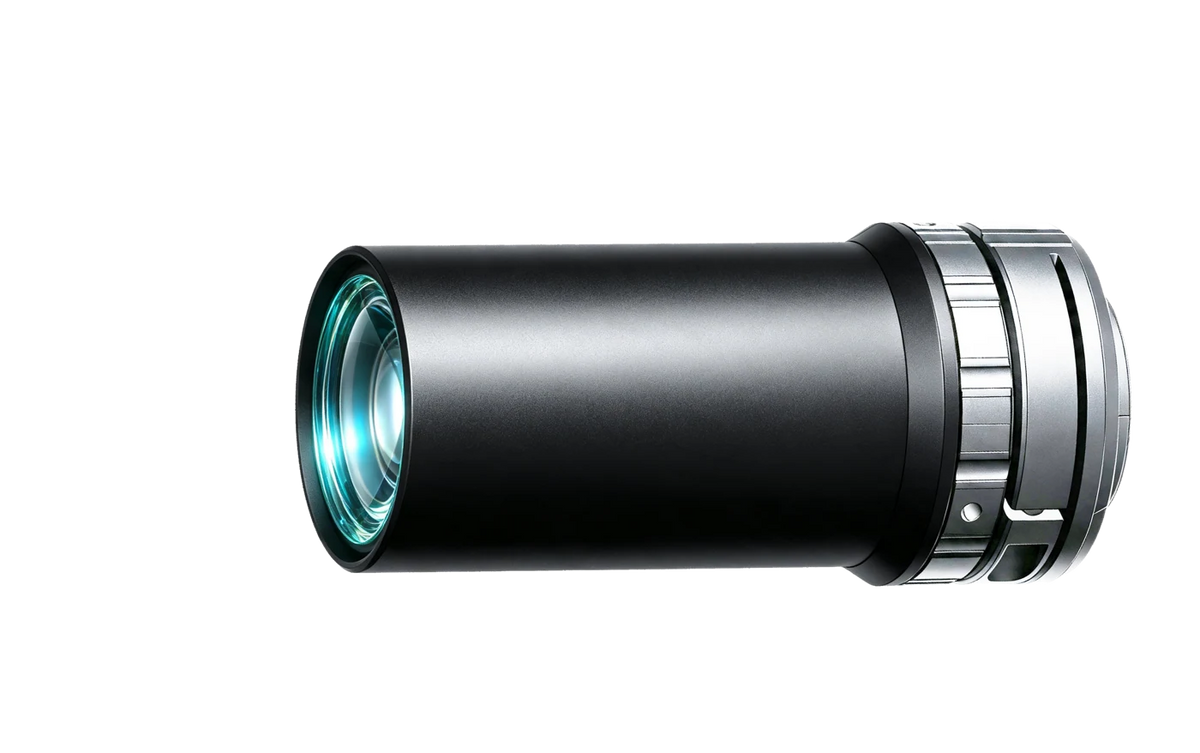

Object-Side Telecentric Lens, 0.35x, 232 mm WD, 1.2" (LS-KS-035-232)
  • Object-Side Telecentric Lens, 0.35x, 232 mm WD, 1.2" (LS-KS-035-232)

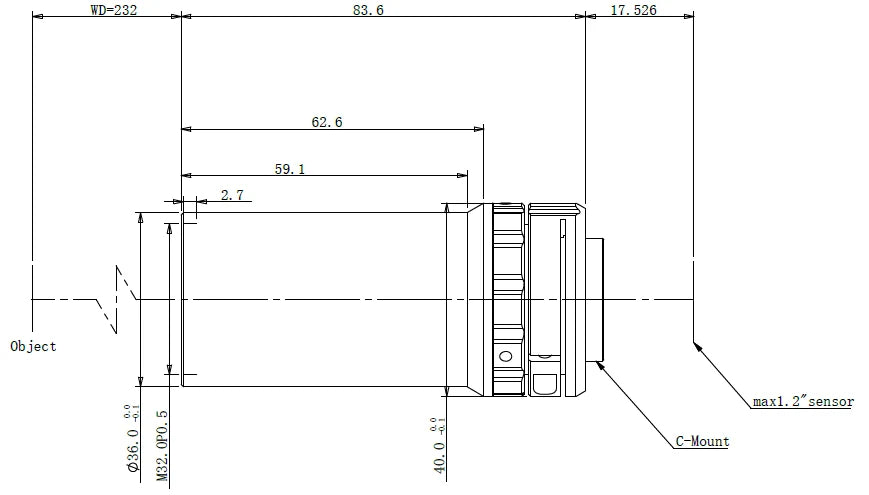

  • LS-KS-035-232 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.35x, 232 mm WD, 1.2" (LS-KS-035-232)

Model LS-KS-035-232

  • Magnification0.35
  • MountC-mount
  • Sensor1.2"
  • Working distance232 mm
  • ApertureF5.6
$1,449.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.35x, 232 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KS-035-232

Optics

Magnification0.35
Working distance232 mm
Image size1.2"
F-numberF5.6
Depth of field3.7 mm
Distortion≤ 0.17%
Object-side resolution10.7 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension83.6 mm × Φ36 mm
Shipping weight (estimated)0.66 kg
