Line scan hyperspectral camera USB3 (series view)
  • Line scan hyperspectral camera USB3 (series view)
  • Line scan hyperspectral camera USB3 (series view)

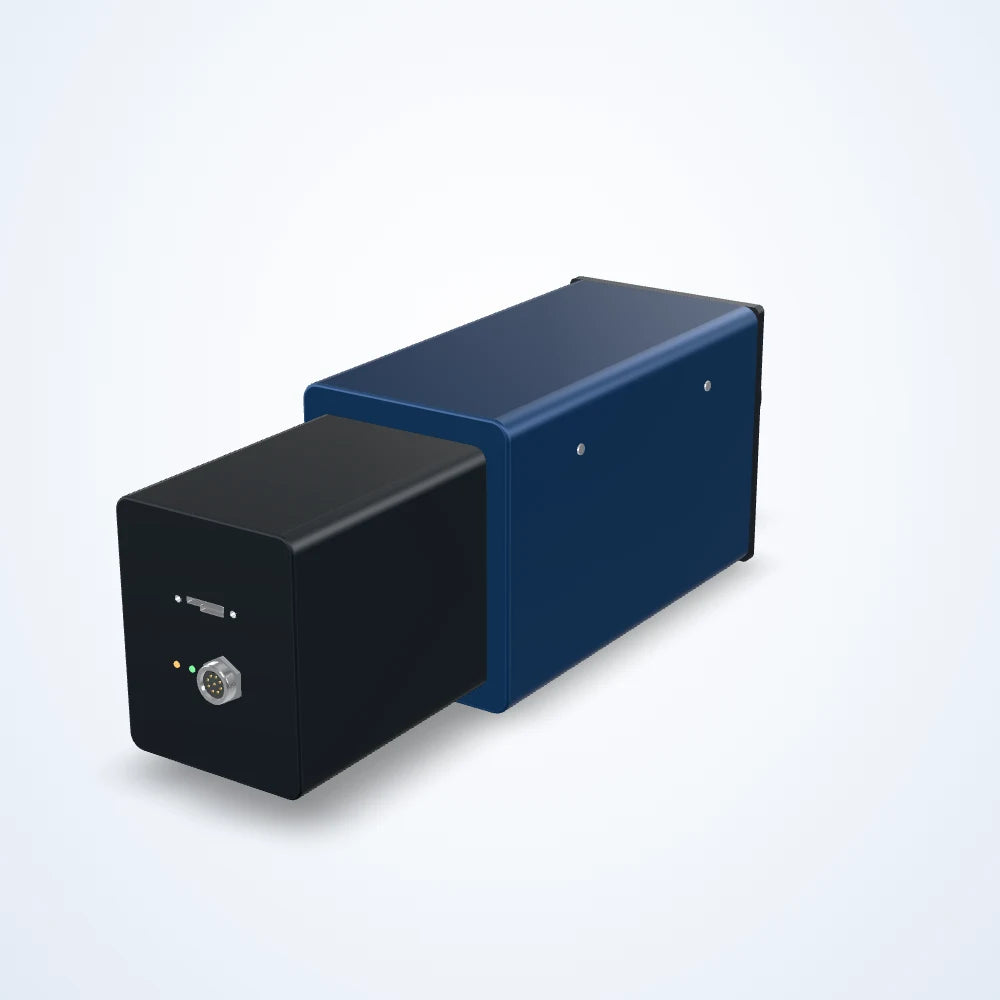

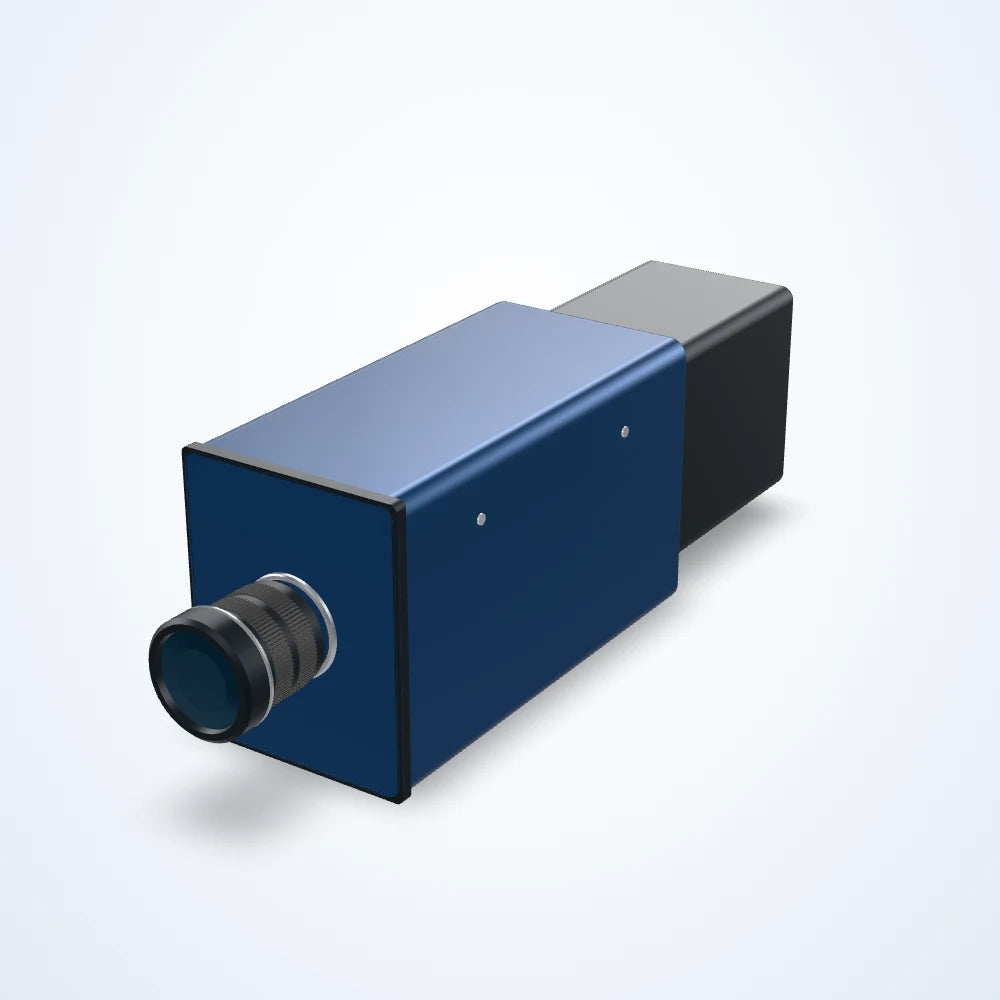

Rendered illustration: the actual product may differ in appearance.

Hyperspectral cameras

400-1000 nm line scan hyperspectral camera, USB3 (LS-HSC-0006)

Model LS-HSC-0006

  • Resolution1920
  • SensorCMOS
  • InterfaceUSB3.0
  • Speed128 fps (full band)
  • Lens mountC-mount
  • Pixel size5.86 μm
$14,800.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

1.78 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

400-1000 nm line scan hyperspectral camera, USB3 (LS-HSC-0006)LS-HSC-0006

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan hyperspectral camera for material identification and sorting, moisture and composition analysis. CMOS sensor; 128 frames per second at full band; USB3 interface; C-mount lens mount; spectral range 400-1000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HSC-0006
Scan TypeLine Scan
Spectral range400-1000 nm
Spectral band1200
Spectral FWHM2.5 nm
Transmission efficiency＞ 60%
Stray light＜ 0.5%
Imaging speedFull band 128 Hz 3300 Hz can be achieved after ROI
ROIMultiple area
Spectroscopic methodGrating

Sensor and imaging

Max. frame rate128 fps (full band)
Resolution1920
Pixel size5.86 μm
Sensor typeCMOS
SNR600/1

Interfaces and I/O

Data interfaceUSB3.0

Electrical

Power consumption5 W

Mechanical

Slit width25 μm
Lens mountC-Mount
Dimensions22.8 x 7 x 8.6 cm (1250g)
Shipping weight1.77 kg

Other models in the Hyperspectral cameras (LS-HSC-S01) series

See all 17 models
ModelSize / key dataPriceAvailabilityLink
LS-HSC-0005 USB3 $12,800.00 Quote Ships in 3-4 weeks View
LS-HSC-0001 USB3 $13,300.00 Quote Ships in 3-4 weeks View
LS-HSC-0002 USB3 $13,300.00 Quote Ships in 3-4 weeks View
LS-HSC-0007 USB3 $13,700.00 Quote Ships in 3-4 weeks View
LS-HSC-0003 USB3 $13,700.00 Quote Ships in 3-4 weeks View
LS-HSC-0010 USB3 $14,080.00 Quote Ships in 3-4 weeks View
LS-HSC-0011 USB3 $14,300.00 Quote Ships in 3-4 weeks View
LS-HSC-0004 USB3 $15,900.00 Quote Ships in 3-4 weeks View
LS-HSC-0013 Camera Link $41,500.00 Quote Ships in 3-4 weeks View
LS-HSC-0014 Camera Link $41,500.00 Quote Ships in 3-4 weeks View
LS-HSC-0015 Camera Link $41,500.00 Quote Ships in 3-4 weeks View
LS-HSC-0009 USB3 $42,800.00 Quote Ships in 3-4 weeks View
LS-HSC-0016 USB3 $46,000.00 Quote Ships in 3-4 weeks View
LS-HSC-0017 USB3 $46,000.00 Quote Ships in 3-4 weeks View
LS-HSC-0018 USB3 $97,000.00 Quote Ships in 3-4 weeks View
LS-HSC-0012 USB3 $197,950.00 Quote Ships in 3-4 weeks View
