400-700 nm line scan hyperspectral camera, 600 bands, USB3
  • 400-700 nm line scan hyperspectral camera, 600 bands, USB3
  • 400-700 nm line scan hyperspectral camera, 600 bands, USB3

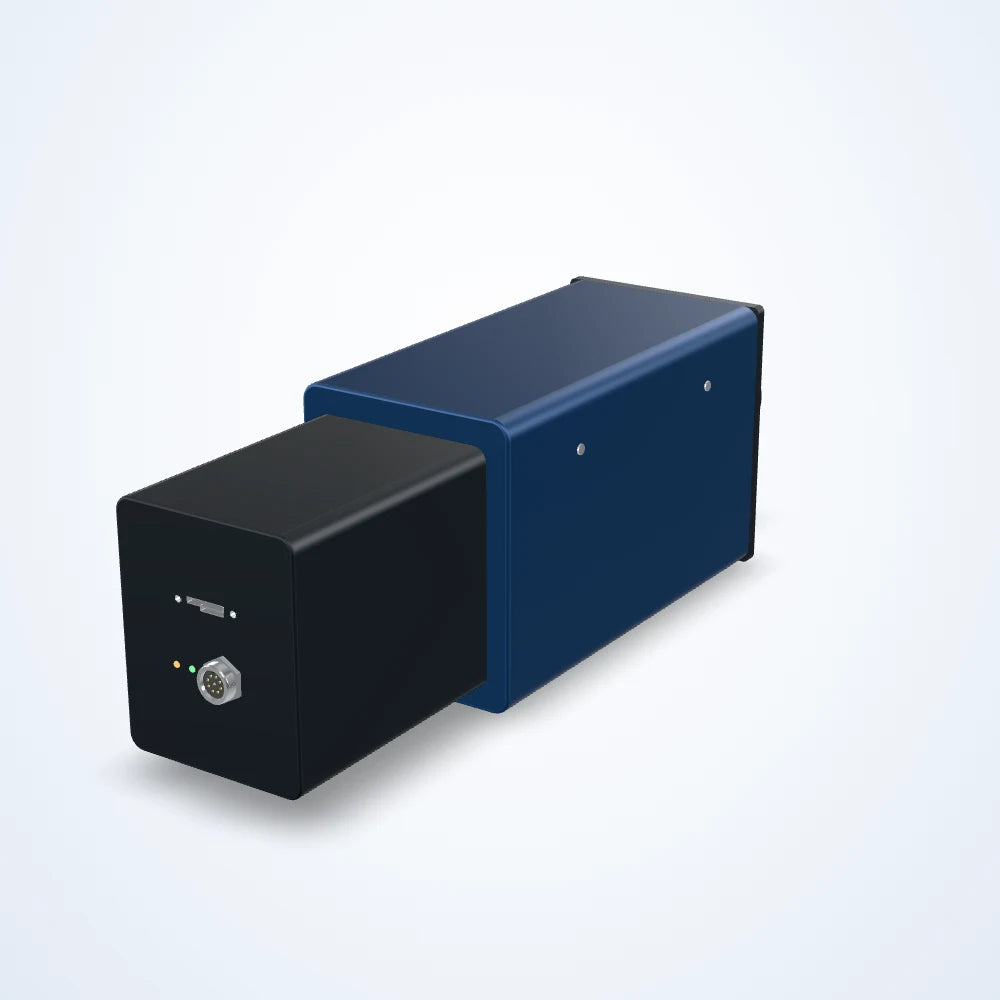

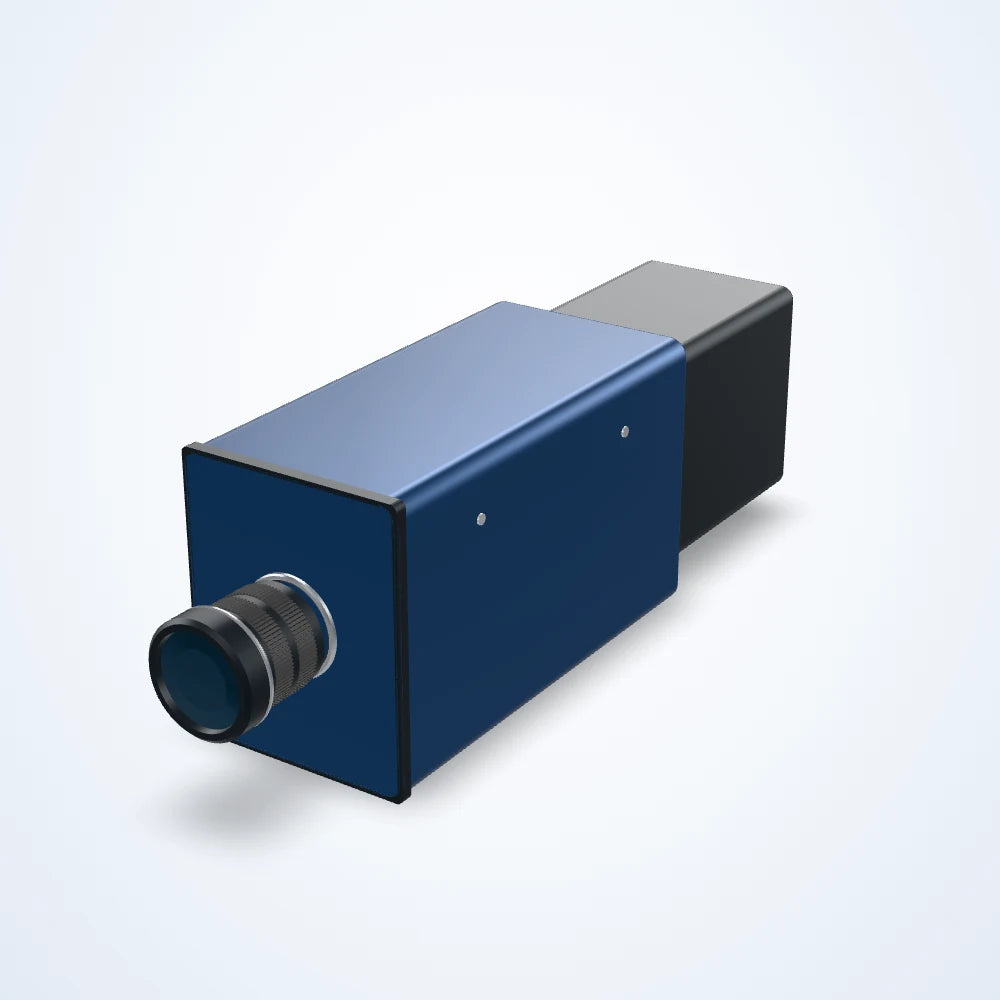

Rendered illustration: the actual product may differ in appearance.

Hyperspectral cameras

400-700 nm line scan hyperspectral camera, 600 bands, USB3 (LS-HSC-0002)

Model LS-HSC-0002

  • Resolution1920
  • SensorCMOS
  • InterfaceUSB3.0
  • Speed41 fps (full band)
  • Lens mountC-mount
  • Pixel size5.86 μm
$13,300.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

1.78 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

400-700 nm line scan hyperspectral camera, 600 bands, USB3 (LS-HSC-0002)LS-HSC-0002

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan hyperspectral camera for material identification and sorting, moisture and composition analysis. CMOS sensor; 41 frames per second at full band; USB3 interface; C-mount lens mount; spectral range 400-700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HSC-0002
Scan TypeLine Scan
Spectroscopic methodGrating
Spectral range400-700 nm
Spectral band600
Spectral FWHM2.5 nm
Transmission efficiency＞ 50%
Stray light＜ 0.5%
Imaging speedFull band 41 Hz 390 Hz can be achieved after ROI
ROISingle area

Sensor and imaging

Max. frame rate41 fps (full band)
Resolution1920
Pixel size5.86 μm
Sensor typeCMOS
SNR500/1

Interfaces and I/O

Data interfaceUSB3.0

Electrical

Power consumption5 W

Mechanical

Slit width25 μm
Lens mountC-Mount
Dimensions22.8 x 7 x 8.6 cm (1250g)
Shipping weight1.77 kg
