400-1000 nm area scan hyperspectral camera, 300 bands, USB3
  • 400-1000 nm area scan hyperspectral camera, 300 bands, USB3
  • 400-1000 nm area scan hyperspectral camera, 300 bands, USB3

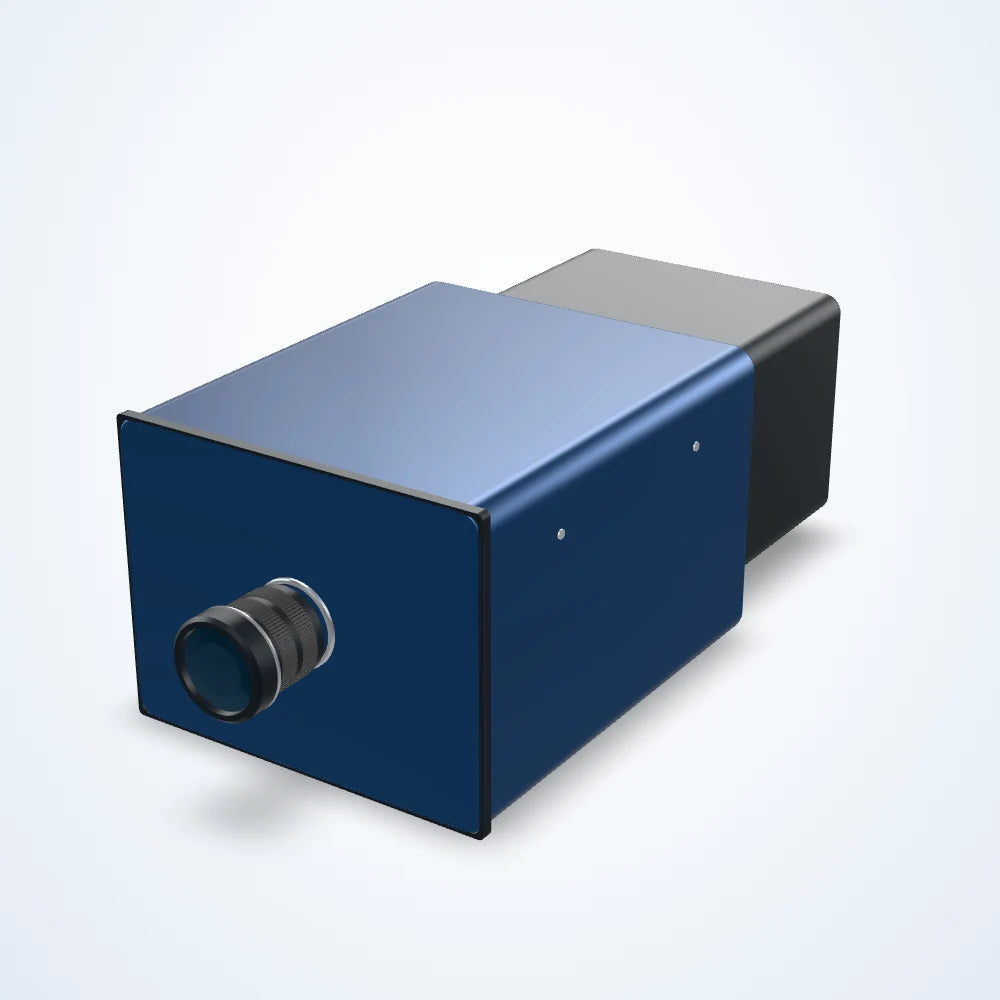

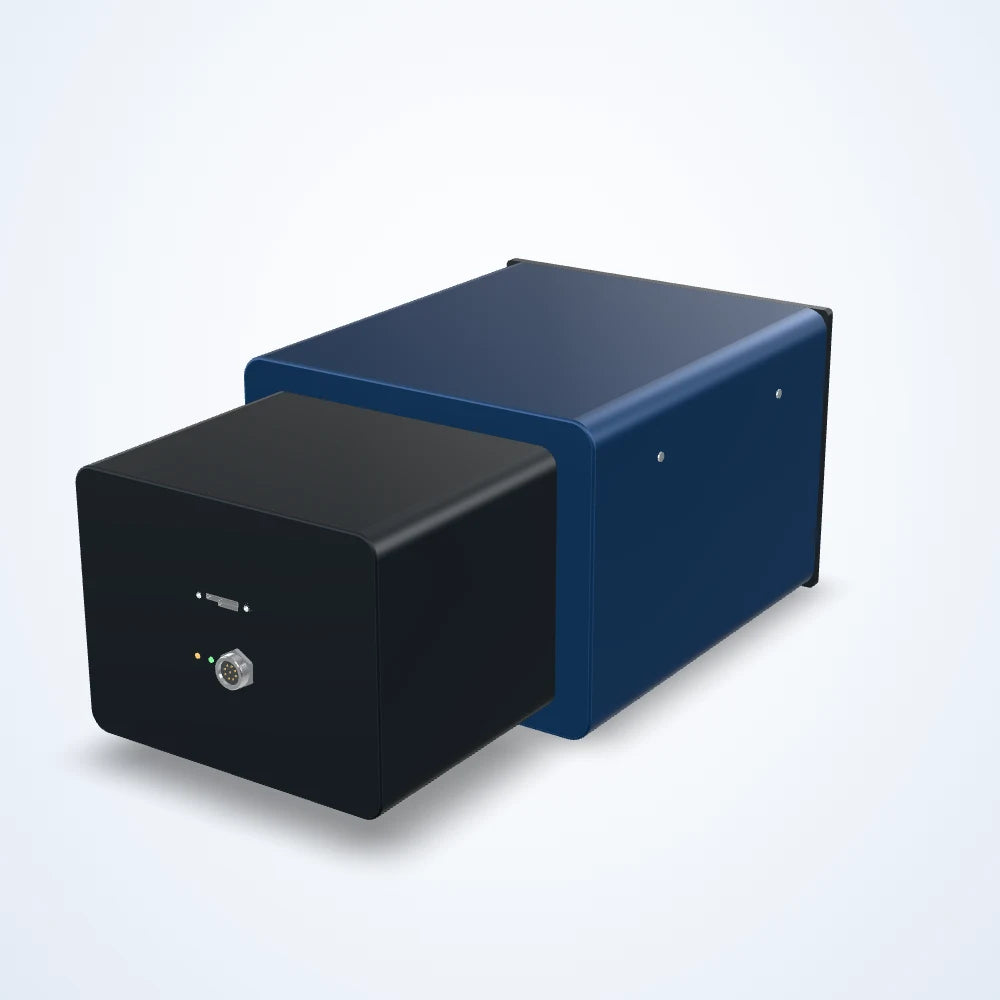

Rendered illustration: the actual product may differ in appearance.

Hyperspectral cameras

400-1000 nm area scan hyperspectral camera, 300 bands, USB3 (LS-HSC-0003)

Model LS-HSC-0003

  • Resolution1920*1920
  • SensorCMOS
  • InterfaceUSB3.0
  • Lens mountC-mount
  • Pixel size5.86 μm
$13,700.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

10.0 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

400-1000 nm area scan hyperspectral camera, 300 bands, USB3 (LS-HSC-0003)LS-HSC-0003

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Area scan hyperspectral camera for material identification and sorting, moisture and composition analysis. CMOS sensor; 1920 x 1920 pixels of 5.86 μm; USB3 interface; C-mount lens mount; spectral range 400-1000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HSC-0003
Scan TypeArea Scan
Spectroscopic methodGrating
Spectral range400-1000 nm
Spectral band300
Spectral FWHM5 nm
Transmission efficiency60%
Stray light0.5%
Imaging speed≤ 15S
ROISingle area

Sensor and imaging

Resolution1920*1920
Pixel size5.86 μm
Sensor typeCMOS
SNR600/1

Interfaces and I/O

Data interfaceUSB3.0

Electrical

Power consumptionBuilt-in battery power 50 W

Mechanical

Slit width25 μm
Lens mountC-Mount
Dimensions25.5 x 13.8 x 10.7 cm (＜ 2800g)
Shipping weight10.00 kg
