Ring lights

208 mm OD LED Ring Light (LS-HLR-208-25)

Model LS-HLR-208-25

ColourRed, Green, Blue, White
Voltage24 V
Angle25°
TypeStandard

$309.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.4 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

208 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-HLR-208-25
Angle (°)	25
OD x ID x H (mm)	208x182x22
Model code	LS-HLR-<outer diameter>-<angle>-<color>, e.g. LS-HLR-32-70-W

Light

LED rows	3
Colours	Red, Green, Blue, White
Illumination chart	LS-HLR-50-75: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm

Electrical

Voltage (V)	24
Power R (W)	13.5
Power G/B/W (W)	18.5

Mechanical

Mounting (all drawn models)	4-M3 tapped holes, depth 4, on a P.C.D. (value per model)
Shipping weight (estimated)	0.40 kg

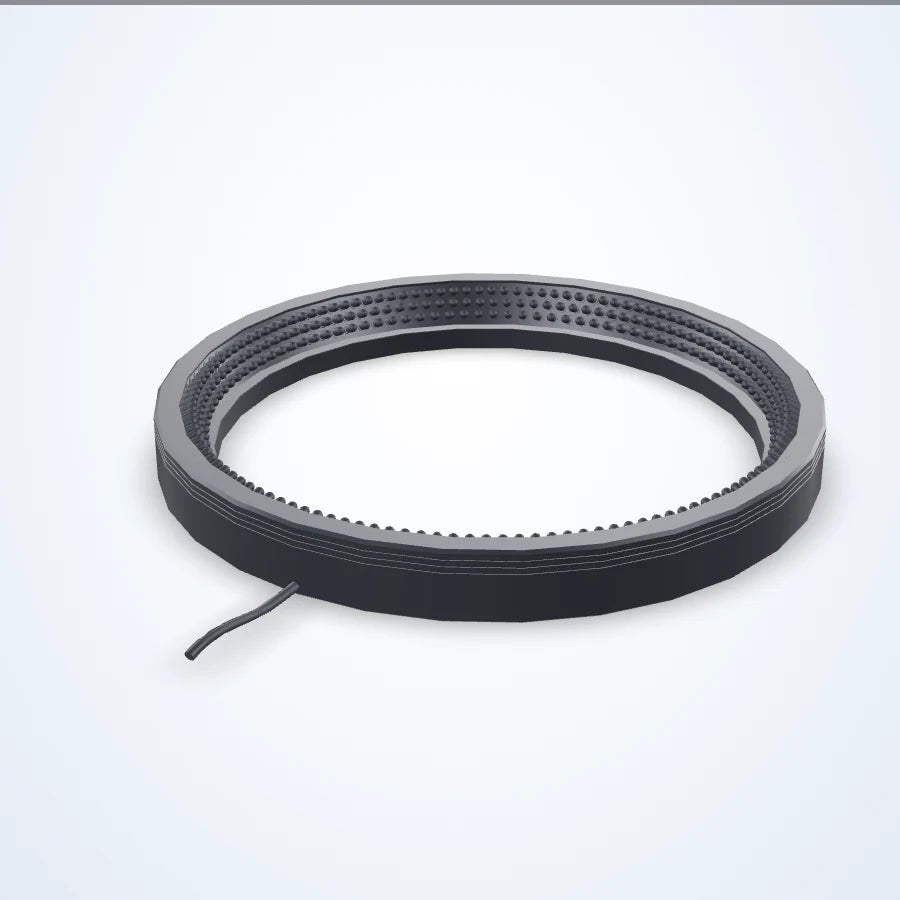

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing : 4-M3 tapped holes depth 4 on P.C.D. φ186, at 45°; cable 500 mm

Downloads

Features

Angles customizable to requirements.
Wavelength and color temperature are optional, and different color combinations are also available.
Compact design, easy installation.
High-density LED array for even brightness.
Optional diffuser for uniform light.

Applications

Size/recognition
Microscope illumination
LCD calibration
2D code reading

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
