90 mm OD LED Ring Light, 15° (LS-HLR-90-15)

Model LS-HLR-90-15

ColourRed, Green, Blue, White
Voltage24 V
Angle15°
TypeStandard

$149.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.3 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 or a formal quote?

90 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-HLR-90-15
Angle (°)	15
OD x ID x H (mm)	90x52x20.6
Model code	LS-HLR-<outer diameter>-<angle>-<color>, e.g. LS-HLR-32-70-W

Light

LED rows	2
Colours	Red, Green, Blue, White
Illumination chart	LS-HLR-50-75: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm

Electrical

Voltage (V)	24
Power R (W)	4
Power G/B/W (W)	6

Mechanical

Mounting (all drawn models)	4-M3 tapped holes, depth 4, on a P.C.D. (value per model)
Shipping weight (estimated)	0.30 kg

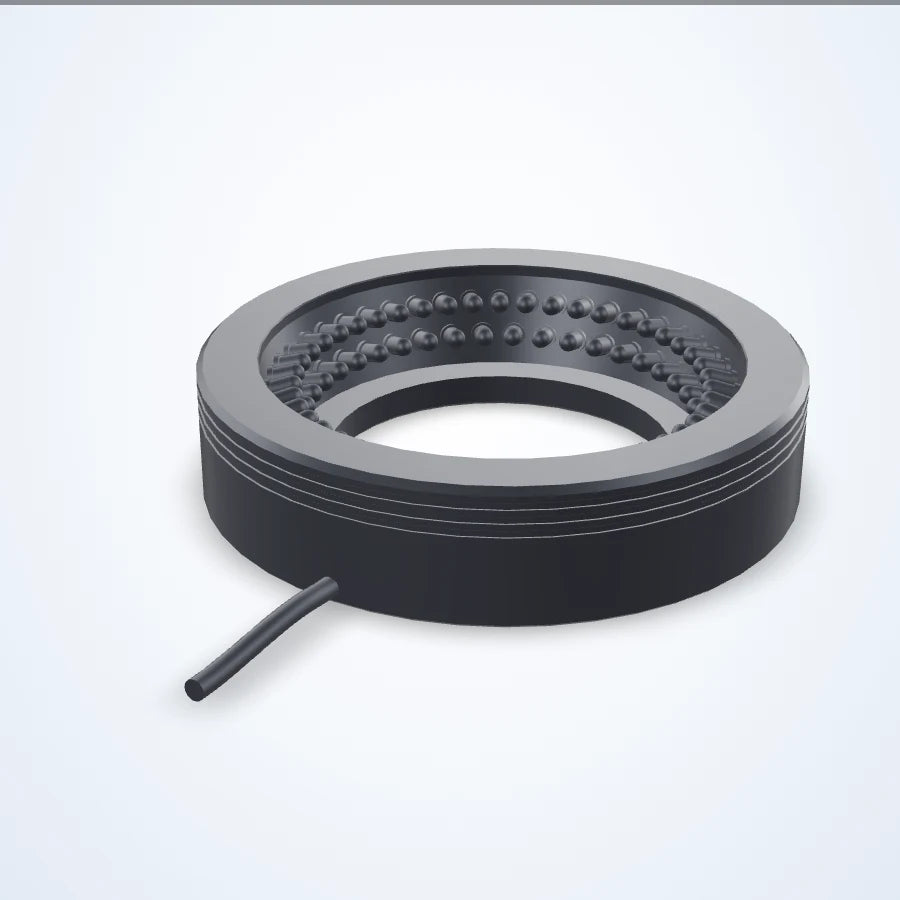

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing : 4-M3 tapped holes depth 4 on P.C.D. φ75, at 45°; cable 500 mm; CONFLICT: table ID 52 (90x52x20.6) but drawing shows ID φ60 (φ90/φ60/20.6).

Downloads

Features

Angles customizable to requirements.
Wavelength and color temperature are optional, and different color combinations are also available.
Compact design, easy installation.
High-density LED array for even brightness.
Optional diffuser for uniform light.

Applications

Size/recognition
Microscope illumination
LCD calibration
2D code reading
