Ring lights
120 mm OD LED Ring Light, 45° (LS-HLR-120-45)
Model LS-HLR-120-45
- ColourRed, Green, Blue, White
- Voltage24 V
- Angle45°
- TypeStandard
$189.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
120 mm OD LED Ring Light. Ring light series with a high-density LED array for even brightness. Angles are customizable to requirements, wavelength/colour temperature and colour combinations are optional, and an optional diffuser gives uniform light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HLR-120-45 |
|---|---|
| Angle (°) | 45 |
| OD x ID x H (mm) | 120x80x18 |
| Model code | LS-HLR-<outer diameter>-<angle>-<color>, e.g. LS-HLR-32-70-W |
Light
| LED rows | 4 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illumination chart | LS-HLR-50-75: illuminance (lx) vs working distance (mm); uniformity maps at LWD 15/30/45/60 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 13 |
| Power G/B/W (W) | 16 |
Mechanical
| Mounting (all drawn models) | 4-M3 tapped holes, depth 4, on a P.C.D. (value per model) |
|---|---|
| Shipping weight (estimated) | 0.30 kg |
Photo shows a representative model of this series; see the specifications for this model.

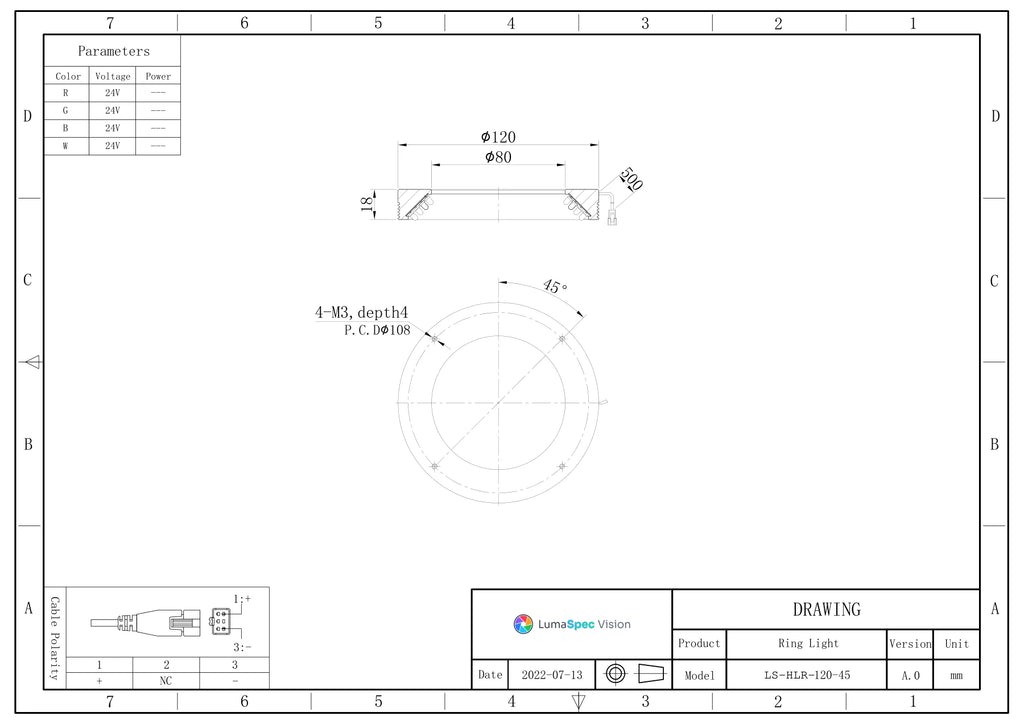

Mounting and drawing data
drawing : 4-M3 tapped holes depth 4 on P.C.D. φ108, at 45°; cable 500 mm
