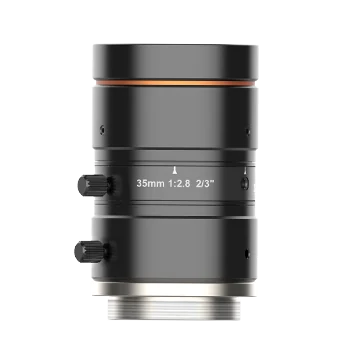

35mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø32 mm × 48.43 mm (LS-FFL-1470)
  • 35mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø32 mm × 48.43 mm (LS-FFL-1470)
  • LS-FFL-1470 dimensions (mm)

Machine vision lenses

35mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø32 mm × 48.43 mm (LS-FFL-1470)

Model LS-FFL-1470

  • Focal length35 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.8 to F16
$139.00

Ships in 2-3 weeks

0.22 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø32 mm × 48.43 mm (LS-FFL-1470)LS-FFL-1470

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35mm, F2.8, 2/3", 8MP Lens, C-Mount. Ultra-high resolution and consistency of image clarity Ultra-low distortion and higher relative illumination

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1470
Minimum object distance0.15 m
Close-up with extension tube10 mm tube, near focus: WD 90.31 mm, magnification -0.577; 10 mm tube, far focus: WD 132.64 mm, magnification -0.286; 5 mm tube, near focus: WD 110.29 mm, magnification -0.434; 5 mm tube, far focus: WD 254.69 mm, magnification -0.143; 2 mm tube, near focus: WD 130.15 mm, magnification -0.348; 2 mm tube, far focus: WD 619.06 mm, magnification -0.057; 1 mm tube, near focus: WD 139.14 mm, magnification -0.320; 1 mm tube, far focus: WD 1220.47 mm, magnification -0.029

Optics

Focal length35 mm
F-numberF2.8 to F16
Image sizeØ11 mm (2/3")
Distortion0.02%
Field of viewD (11.1 mm): 15.26°; H (8.45 mm): 11.65°; V (7.07 mm): 9.76°
Iris controlManual
Focus controlManual
Filter threadM30.5 × 0.5
Magnification at working distance (mm)150: -0.262; 200: -0.190; 250: -0.150; 300: -0.124; 350: -0.105; 400: -0.092; 450: -0.081; 500: -0.073; 550: -0.066; 600: -0.061; 650: -0.056; 700: -0.052; 750: -0.049; 800: -0.045; 850: -0.043; 900: -0.040; 950: -0.038; 1000: -0.036
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)150: 32.32 x 27.04; 200: 44.57 x 37.29; 250: 56.57 x 47.34; 300: 68.45 x 57.28; 350: 80.28 x 67.18; 400: 92.06 x 77.04; 450: 103.83 x 86.88; 500: 115.57 x 96.71; 550: 127.31 x 106.53; 600: 139.03 x 116.34; 650: 150.75 x 126.15; 700: 162.46 x 135.95; 750: 174.17 x 145.75; 800: 185.87 x 155.54; 850: 197.57 x 165.33; 900: 209.27 x 175.12; 950: 220.97 x 184.91; 1000: 232.66 x 194.69
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)150: 28.23 x 18.82; 200: 38.93 x 25.96; 250: 49.41 x 32.95; 300: 59.79 x 39.87; 350: 70.12 x 46.76; 400: 80.41 x 53.62; 450: 90.69 x 60.47; 500: 100.95 x 67.31; 550: 111.20 x 74.15; 600: 121.44 x 80.98; 650: 131.67 x 87.80; 700: 141.91 x 94.62; 750: 152.13 x 101.44; 800: 162.35 x 108.26; 850: 172.57 x 115.07; 900: 182.79 x 121.89; 950: 193.01 x 128.70; 1000: 203.22 x 135.51
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)150: 23.79 x 17.87; 200: 32.81 x 24.64; 250: 41.65 x 31.27; 300: 50.40 x 37.84; 350: 59.10 x 44.38; 400: 67.78 x 50.90; 450: 76.44 x 57.40; 500: 85.09 x 63.89; 550: 93.73 x 70.38; 600: 102.36 x 76.86; 650: 110.99 x 83.34; 700: 119.61 x 89.82; 750: 128.23 x 96.29; 800: 136.85 x 102.76; 850: 145.46 x 109.23; 900: 154.08 x 115.70; 950: 162.69 x 122.16; 1000: 171.30 x 128.63

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ32 mm × 48.43 mm (Ø1.3" × 1.9")
Weight84.3 g (0.2 lb.)
Shipping weight (estimated)0.22 kg

Other models in the LS-FFL-S134 series lenses series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1468 16 mm · C-mount $129.00 Ships in 2-3 weeks View
LS-FFL-1467 12 mm · C-mount $139.00 Ships in 2-3 weeks View
LS-FFL-1469 25 mm · C-mount $139.00 Ships in 2-3 weeks View
LS-FFL-1471 50 mm · C-mount $139.00 Ships in 2-3 weeks View
LS-FFL-1466 8 mm · C-mount $149.00 Ships in 2-3 weeks View
