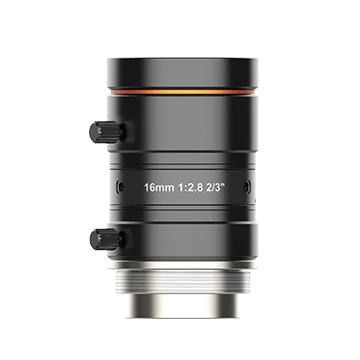

16mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø28.5 mm × 39.33 mm (LS-FFL-1468)
  • 16mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø28.5 mm × 39.33 mm (LS-FFL-1468)
  • LS-FFL-1468 dimensions (mm)

Machine vision lenses

16mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø28.5 mm × 39.33 mm (LS-FFL-1468)

Model LS-FFL-1468

  • Focal length16 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.8 to F16
$129.00

Ships in 2-3 weeks

0.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø28.5 mm × 39.33 mm (LS-FFL-1468)LS-FFL-1468

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16mm, F2.8, 2/3", 8MP Lens, C-Mount. Ultra-high resolution and consistency of image clarity Ultra-low distortion and higher relative illumination

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1468
Minimum object distance0.1 m
Close-up with extension tube5 mm tube, near focus: WD 20.98 mm, magnification -0.450; 5 mm tube, far focus: WD 33.66 mm, magnification -0.313; 2 mm tube, near focus: WD 46.45 mm, magnification -0.262; 2 mm tube, far focus: WD 110.33 mm, magnification -0.125; 1 mm tube, near focus: WD 65.58 mm, magnification -0.200; 1 mm tube, far focus: WD 237.84 mm, magnification -0.063

Optics

Focal length16 mm
F-numberF2.8 to F16
Image sizeØ11 mm (2/3")
Distortion0.33%
Field of viewD (11.1 mm): 37.39°; H (8.45 mm): 28.9°; V (7.07 mm): 24.33°
Iris controlManual
Focus controlManual
Filter threadM27 × 0.5
Magnification at working distance (mm)100: -0.134; 150: -0.095; 200: -0.073; 250: -0.060; 300: -0.050; 350: -0.044; 400: -0.039; 450: -0.034; 500: -0.031; 550: -0.028; 600: -0.026; 650: -0.024; 700: -0.023; 750: -0.021; 800: -0.020; 850: -0.019; 900: -0.018; 950: -0.017; 1000: -0.016
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)100: 63.47 x 53.05; 150: 89.78 x 75.05; 200: 115.89 x 96.90; 250: 141.90 x 118.68; 300: 167.87 x 140.41; 350: 193.81 x 162.12; 400: 219.72 x 183.81; 450: 245.63 x 205.49; 500: 271.52 x 227.17; 550: 297.41 x 248.83; 600: 323.29 x 270.50; 650: 349.16 x 292.15; 700: 375.03 x 313.81; 750: 400.88 x 335.46; 800: 426.76 x 357.11; 850: 452.63 x 378.76; 900: 478.49 x 400.41; 950: 504.35 x 422.06; 1000: 530.21 x 443.70
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)100: 55.39 x 36.86; 150: 78.36 x 52.16; 200: 101.17 x 67.36; 250: 123.89 x 82.51; 300: 146.58 x 97.64; 350: 169.24 x 112.74; 400: 191.88 x 127.84; 450: 214.51 x 142.93; 500: 237.14 x 158.01; 550: 259.75 x 173.09; 600: 282.36 x 188.17; 650: 304.97 x 203.24; 700: 327.57 x 218.31; 750: 350.17 x 233.40; 800: 372.77 x 248.45; 850: 395.37 x 263.52; 900: 417.97 x 278.58; 950: 440.56 x 293.65; 1000: 463.15 x 308.71
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)100: 46.64 x 34.98; 150: 65.99 x 49.50; 200: 85.22 x 63.93; 250: 104.37 x 78.31; 300: 123.49 x 92.67; 350: 142.59 x 107.01; 400: 161.68 x 121.34; 450: 180.76 x 135.66; 500: 199.83 x 149.97; 550: 218.89 x 164.28; 600: 237.95 x 178.59; 650: 257.01 x 192.90; 700: 276.06 x 207.21; 750: 295.12 x 221.53; 800: 314.16 x 235.82; 850: 333.21 x 250.11; 900: 352.26 x 264.41; 950: 371.30 x 278.71; 1000: 390.35 x 293.01

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ28.5 mm × 39.33 mm (Ø1.1" × 1.6")
Weight57.1 g (0.1 lb.)
Shipping weight (estimated)0.18 kg
