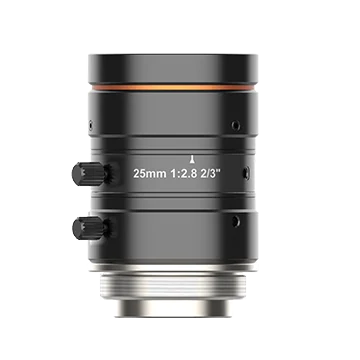

25mm, F2.8, 2/3", 8MP Lens, C-Mount (LS-MF2528M-8MP)

Machine vision lenses

25mm, F2.8, 2/3", 8MP Lens, C-Mount, size Ø30 mm × 38.59 mm (LS-FFL-1469)

Model LS-FFL-1469

Focal length25 mm
MountC-mount
Sensor2/3"
ApertureF2.8 to F16

$139.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.19 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25mm, F2.8, 2/3", 8MP Lens, C-Mount. Ultra-high resolution and consistency of image clarity Ultra-low distortion and higher relative illumination

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1469
Minimum object distance	0.1 m
Close-up with extension tube	10 mm tube, near focus: WD 47.54 mm, magnification -0.674; 10 mm tube, far focus: WD 80.88 mm, magnification -0.400; 5 mm tube, near focus: WD 63.19 mm, magnification -0.474; 5 mm tube, far focus: WD 143.26 mm, magnification -0.200; 2 mm tube, near focus: WD 81.07 mm, magnification -0.354; 2 mm tube, far focus: WD 329.95 mm, magnification -0.080; 1 mm tube, near focus: WD 90.07 mm, magnification -0.314; 1 mm tube, far focus: WD 639.54 mm, magnification -0.040

Optics

Focal length	25 mm
F-number	F2.8 to F16
Image size	Ø11 mm (2/3")
Distortion	0.01%
Field of view	D (11.1 mm): 23.23°; H (8.45 mm): 17.78°; V (7.07 mm): 14.91°
Iris control	Manual
Focus control	Manual
Filter thread	M27 × 0.5
Magnification at working distance (mm)	100: -0.246; 150: -0.162; 200: -0.121; 250: -0.097; 300: -0.081; 350: -0.070; 400: -0.061; 450: -0.054; 500: -0.049; 550: -0.044; 600: -0.041; 650: -0.038; 700: -0.035; 750: -0.033; 800: -0.031; 850: -0.029; 900: -0.027; 950: -0.026; 1000: -0.025
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	100: 34.39 x 28.77; 150: 52.36 x 43.80; 200: 69.87 x 58.45; 250: 87.20 x 72.95; 300: 104.46 x 87.38; 350: 121.66 x 101.77; 400: 138.82 x 116.14; 450: 155.98 x 130.49; 500: 173.11 x 144.82; 550: 190.24 x 159.16; 600: 207.35 x 173.47; 650: 224.47 x 187.80; 700: 241.56 x 202.10; 750: 258.67 x 216.42; 800: 275.77 x 230.72; 850: 292.86 x 245.02; 900: 309.96 x 259.33; 950: 327.05 x 273.63; 1000: 344.14 x 287.93
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)	100: 30.03 x 20.01; 150: 45.72 x 30.47; 200: 61.01 x 40.66; 250: 76.15 x 50.75; 300: 91.22 x 60.80; 350: 106.24 x 70.81; 400: 121.23 x 80.80; 450: 136.22 x 90.79; 500: 151.18 x 100.76; 550: 166.14 x 110.74; 600: 181.08 x 120.70; 650: 196.03 x 130.67; 700: 210.97 x 140.62; 750: 225.91 x 150.59; 800: 240.84 x 160.54; 850: 255.77 x 170.49; 900: 270.71 x 180.45; 950: 285.63 x 190.40; 1000: 300.56 x 200.35
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)	100: 25.30 x 18.99; 150: 38.53 x 28.92; 200: 51.41 x 38.59; 250: 64.17 x 48.17; 300: 76.87 x 57.70; 350: 89.53 x 67.21; 400: 102.16 x 76.69; 450: 114.79 x 86.18; 500: 127.40 x 95.64; 550: 140.01 x 105.11; 600: 152.61 x 114.57; 650: 165.21 x 124.03; 700: 177.79 x 133.48; 750: 190.39 x 142.93; 800: 202.97 x 152.38; 850: 215.56 x 161.83; 900: 228.14 x 171.28; 950: 240.72 x 180.72; 1000: 253.31 x 190.17

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	C-mount
Flange back length	17.526 mm

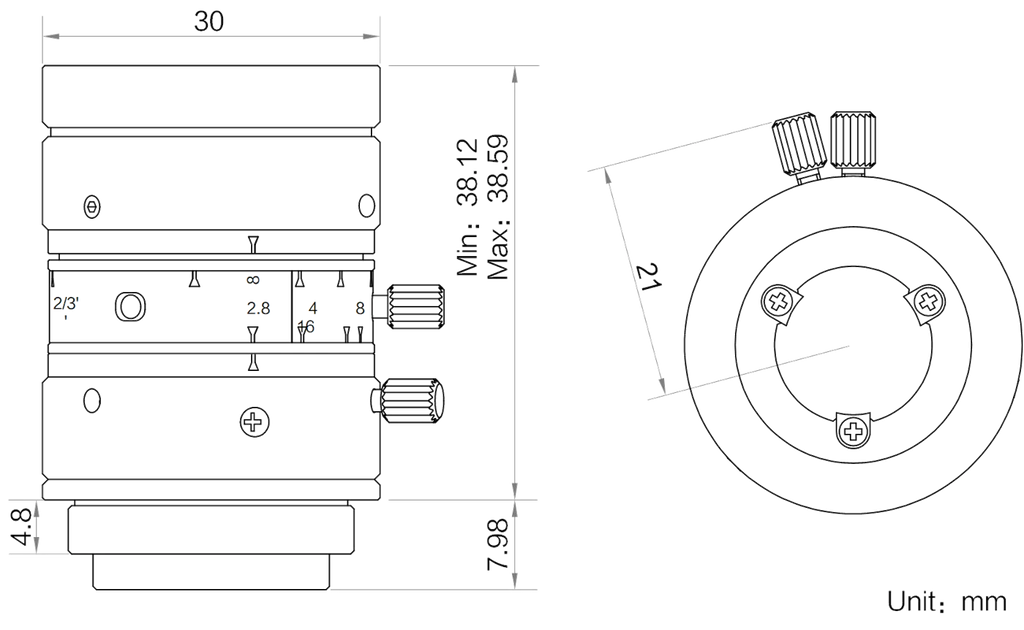

Dimension	Ø30 mm × 38.59 mm (Ø1.2" × 1.5")
Weight	60.8 g (0.1 lb.)
Shipping weight (estimated)	0.19 kg

Downloads

Features

Ultra-high resolution and consistency of image clarity
Ultra-low distortion and higher relative illumination
Achromatic optical system design, better image performance with color camera
Supports ultra-short working distance with good optical performance
Compact design, excellent vibration resistance and high and low temperature performance
