Machine vision lenses

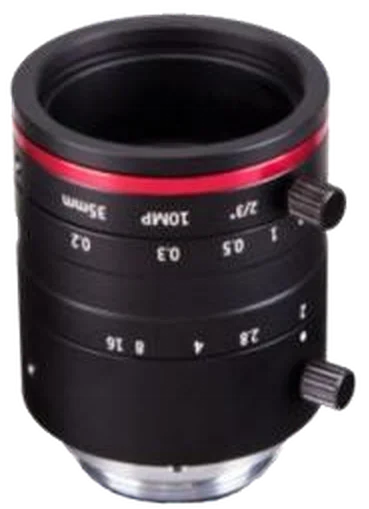

Industrial FA machine vision lens, C mount, 35 mm, 2/3", C-mount (LS-FFL-1177)
Model LS-FFL-1177
- Focal length35mm
- MountC-mount
- Sensor2/3"
- ApertureF1.6
- Resolution10MP
- Field of viewD 18° / H 14.3° / V 11°
$359.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial FA machine vision automation lenses with C mount, listed by sensor format, focal length and resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1177 |
|---|---|
| Format | 2/3" |
| F No. | 1.6 |
| BFL (mm) | 12.7 |
| MOD | 0.2m |
| FOV D (deg) | 18 |
| FOV H (deg) | 14.3 |
| FOV V (deg) | 11 |
Optics
| Focal length | 35mm |
|---|---|
| Distortion | <0.06% |
| TTL (mm) | 60.7 |
| Aperture | F1.6 |
| Field of view | D 18° / H 14.3° / V 11° |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 2/3" |

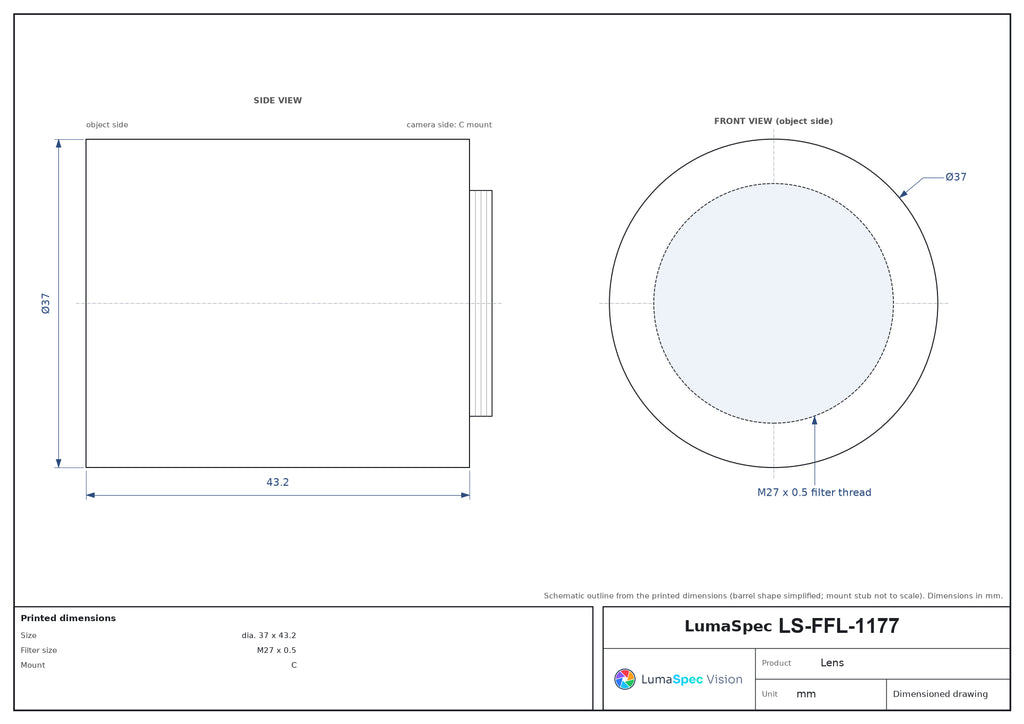

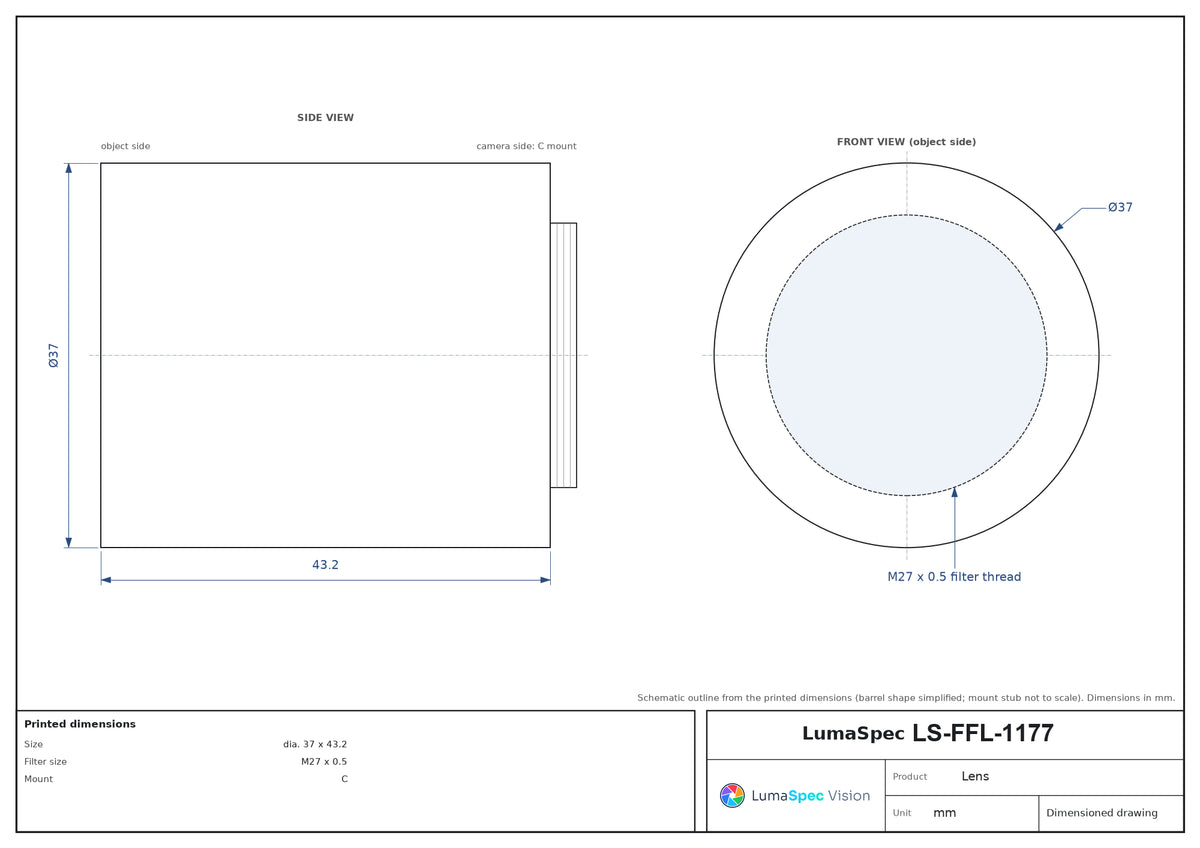

Mechanical
| Mount | C |
|---|---|
| Size (mm) | dia. 37 x 43.2 |
| Filter size | M27 x 0.5 |
| Shipping weight | 0.38 kg |
